HP Storage Mirroring V5 Software - Manual (Page 13)

4 - 1
Setting Up Source
Protection
The Server Image Copy console makes setting up source protection easy by walking you through
each of the required steps. There are also optional advanced settings that you can configure, if
desired.
1. Click Protect from the left navigation pane, or select Go, Protect. If you are on the Monitor
page, you can also select New activity on the toolbar and then select Protect.

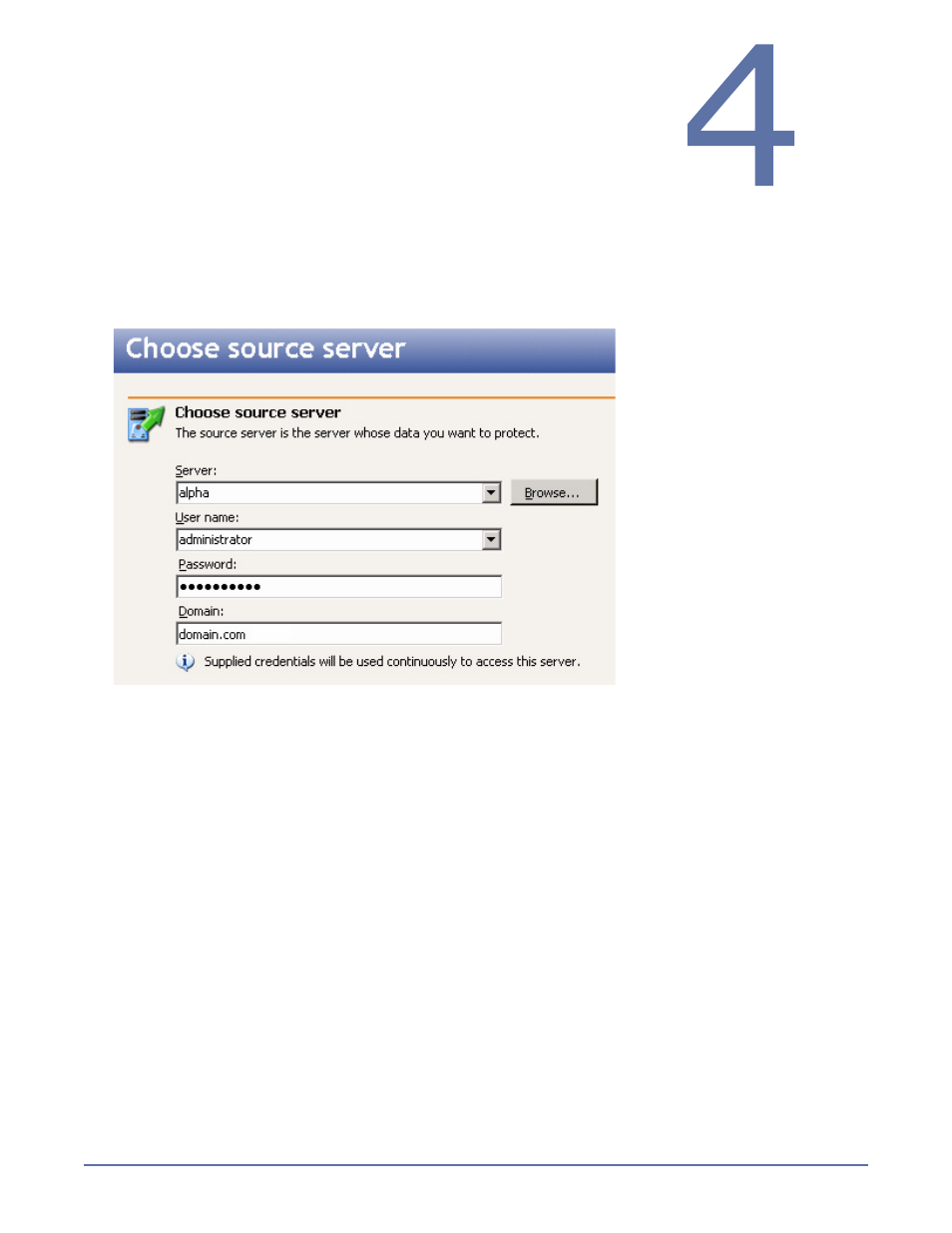

2. Identify the source server that you want to protect.

Server—Specify the name of the source server. You can also click Browse to select the name
from Active Directory or from a network drill-down list.

User name—Specify a user that is a member of the Double-Take Admin security group on
the source.

Password—Specify the password associated with the User name you entered.

Domain—If you are working in a domain environment, specify the Domain.
3. Click Next to continue.
