Hardware options installation 59

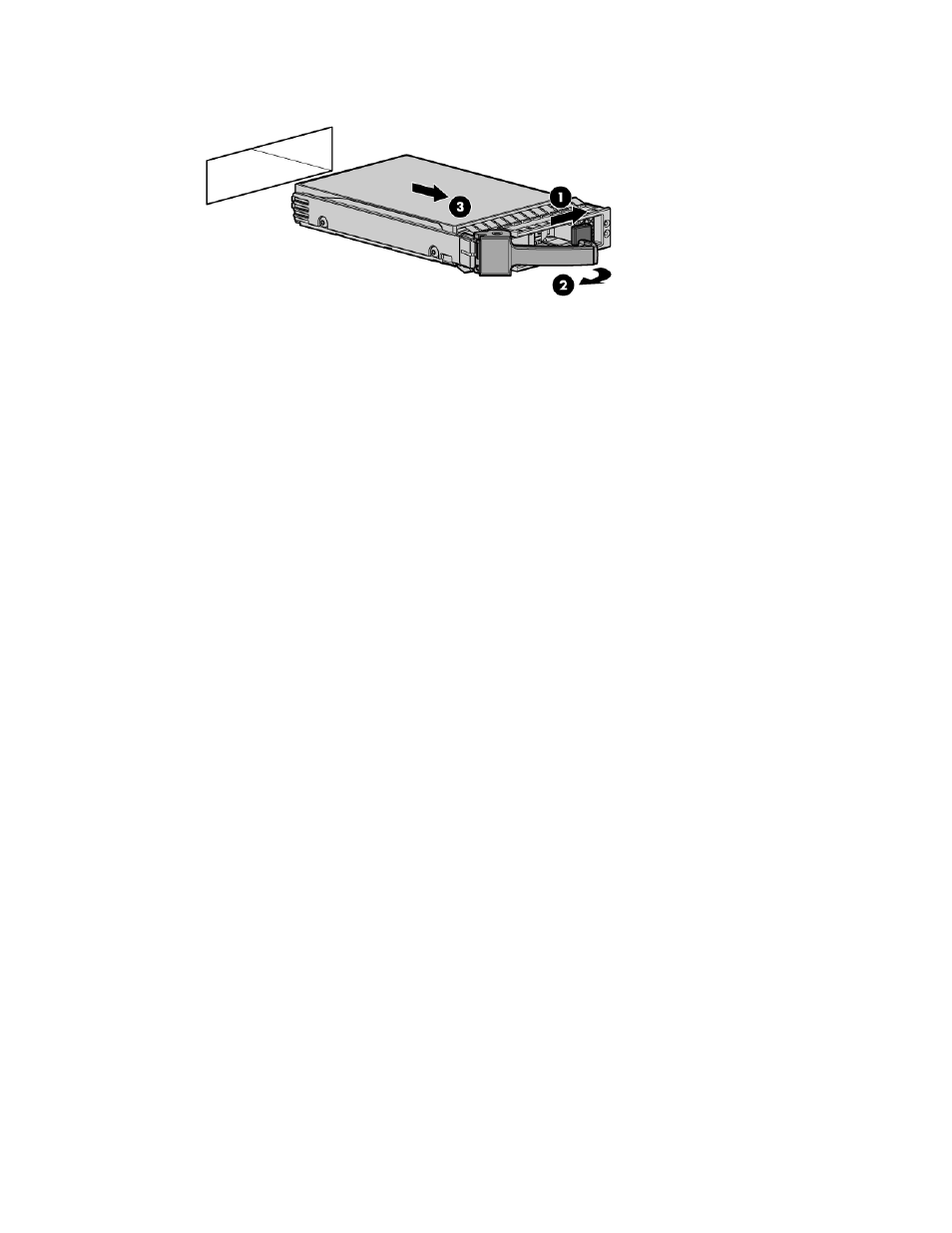

3. Remove the hard drive.
Eight-bay SFF drive cage option
Install the optional eight-bay SFF drive cage in drive cage bay 2 or drive cage bay 3.
To install an additional eight-bay SFF drive cage, an optional SAS controller is required. To obtain the option,
contact an HP authorized reseller.
To configure this option for drive cage bay 3, locate the three jumper pins on the backplane. Move the
jumper from pins 1 and 2 to pins 2 and 3.
For more information, see "Drive cage jumper configuration settings (on page
21 )."
Installing the eight-bay SFF drive cage (bay 2)
1. Power down the server (on page 22 ).
2. Do one of the following:
o Open or remove the tower bezel, as needed (" Open or remove the tower bezel " on page 22 ).
o Extend the server from the rack (on page 24 ).
3. Remove the access panel (on page 25 ).
4. Remove fan 5 (on page 26 ).
5. If installed, remove the BBWC battery pack or the FBWC capacitor pack (on page 27 ).
6. Remove the air baffle (on page 28 ).
7. Remove the fan cage (on page 29 ).
8. Remove the hard drive cage blank (on page 31 ).
9. Using a T-10 Torx screwdriver, remove the two screws on top of the drive cage.
