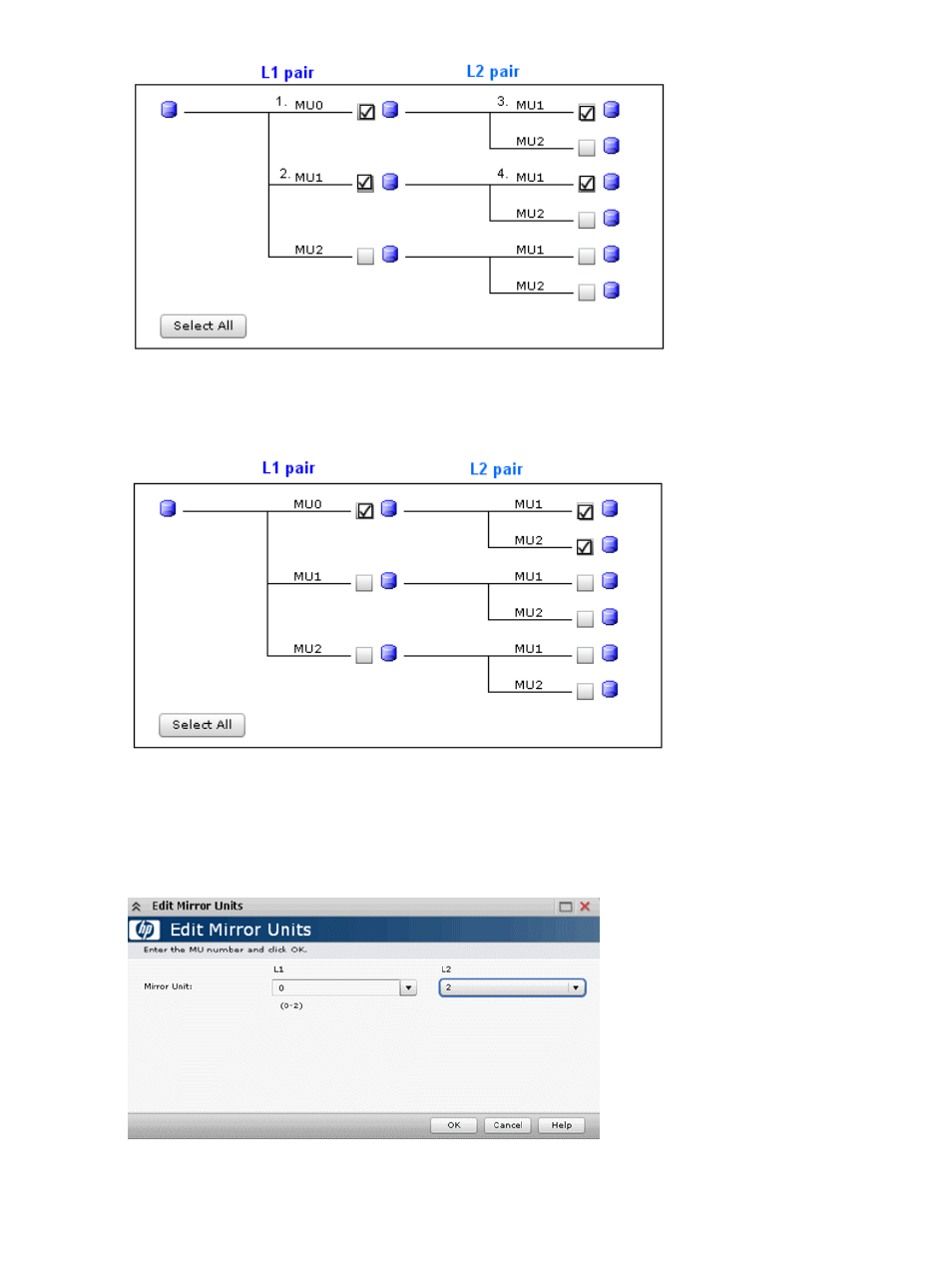

To change a pair’s L1 and L2 combination from the preceding topology to the one shown in the
following figure, for example, you would continue through the Create Pairs wizard to the Select
Secondary Volumes window.
In the Select Secondary Volumes window, after pairing S-VOLs with P-VOLs, in the Selected Pairs
table you would select the line with the S-VOLs whose configuration you want to modify, and then
click Edit MU Number. In the Edit MU Number dialog box, you would specify 0 for the L1, and 2
for the L2. This has the effect of moving the number-4 L2 S-VOL to be paired with the number-1 L1
volume (with MU#0), as intended.
You can also refine a pair’s topology by removing unwanted volumes. To do this, click Remove in
the Select Secondary Volumes window.
