MLMM GUI Operations
Mid-Range Library Media Manager Installation and User’s Guide — 541641-001
6 -5
Legend Tab
Legend Tab
The Legend tab describes what each colored light represents (See Figure 6-4 ).
Panel Tabs
The Panel Tabs show the tape drive configuration. The tape library configuration has a
list of all the drives that are inside of the tape library. There are ten drives on each
panel tab; Panel 1 shows drives 1 - 10, and Panel 2 shows drives 11 -14. Each drive is
labeled with its name (See
Figure 6-5 ).

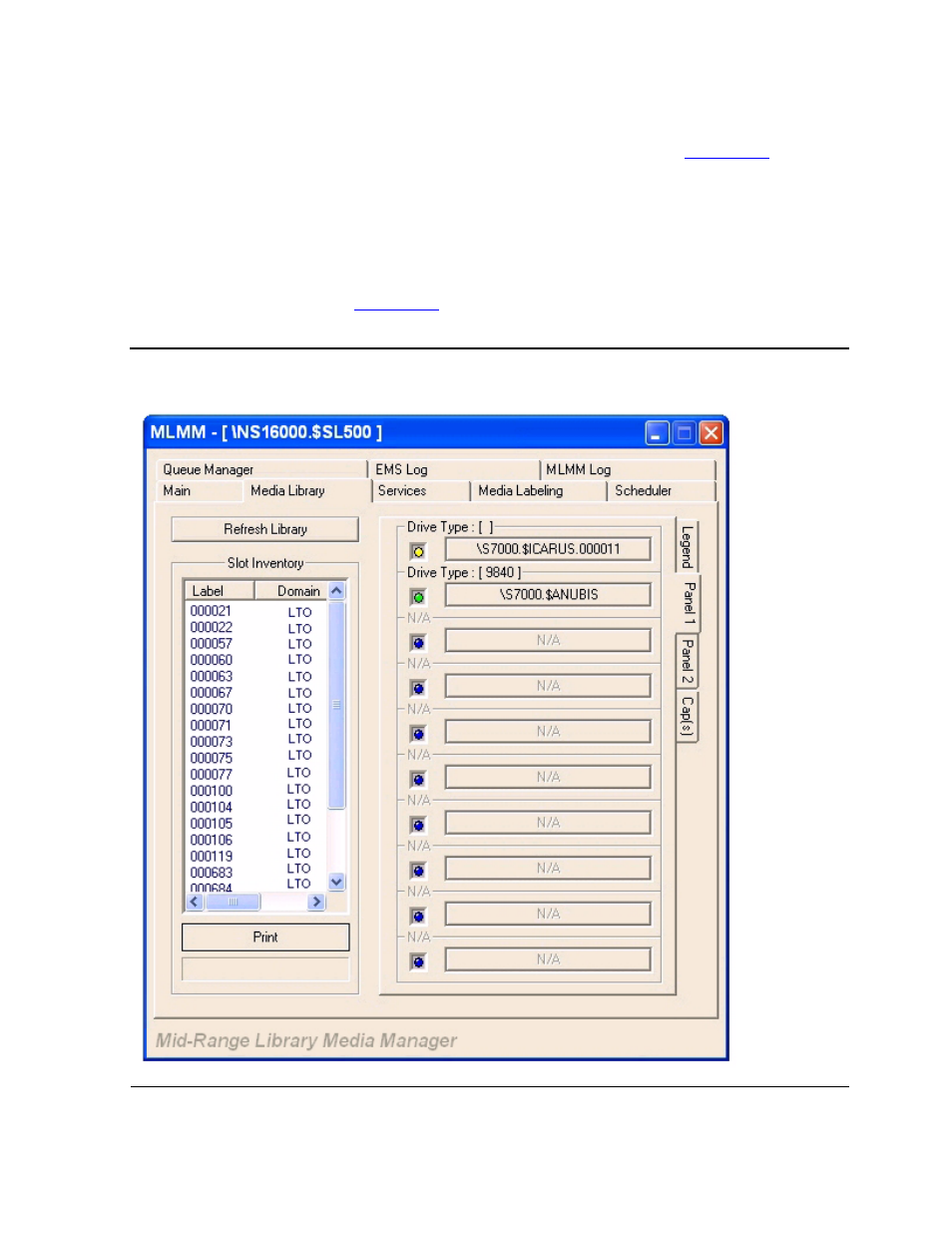

Figure 6-5. Media Library Tab - Panels
