Configuring the Server MLMM and Client MLMM
GUI
Mid-Range Library Media Manager Installation and User’s Guide — 541641-001
5 -8
Configuring the Client MLMM GUI
The Configure Multiple Devices dialog box appears as shown in Figure 5-7 .
At the Configure Multiple Device dialog box, enter the following information:
•
In the IP Address box, enter the IP address of the Client node where the
device is located.
•
In the Port box, enter the port number selected in the Configuration menu.
•
In the Device Node box, enter the name of the NonStop client. See
Figure 5-7 .
•
In the Device Name box, enter the name of the tape library.
1. Click Update after you have entered all the above information. A tree control
displays the system on the left hand side of the Configuration Screen.
2. Click Close to return to the main screen once the device has been added
successfully.

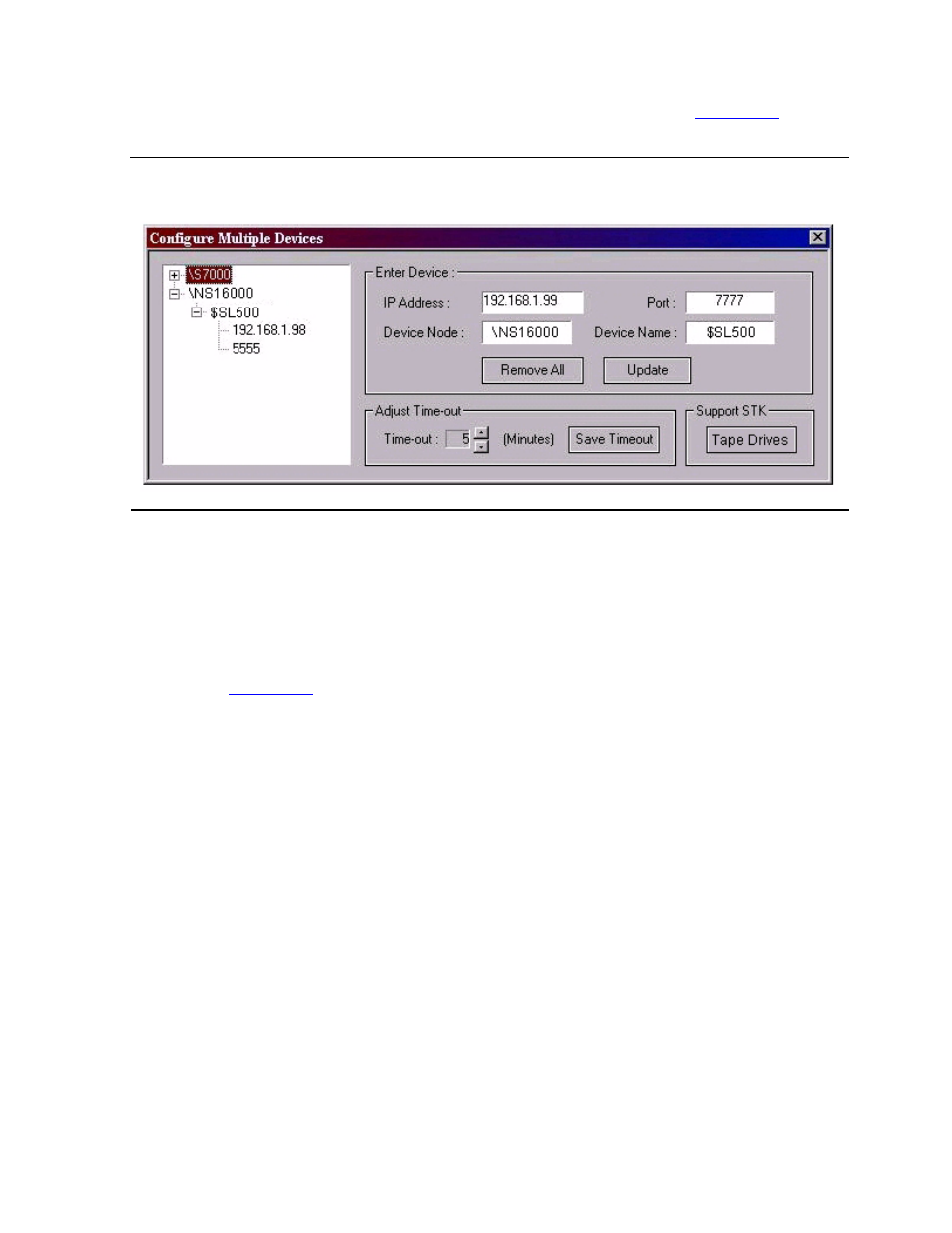

Figure 5-7. Configure Multiple Devices Dialog Box
