Configuring the Server MLMM and Client MLMM
GUI
Mid-Range Library Media Manager Installation and User’s Guide — 541641-001
5 -3
Configuring the Server MLMM GUI
The Configure Multiple Devices dialog box appears as shown in
At the Configure Multiple Devices dialog box, enter the following information in the
text fields:
•
In the IP Address box, enter the IP address of the NonStop system where
the device is located.
•
In the Port box, enter the port number selected in the Configuration menu.
•
In the Device Node box, enter the name of the NonStop host system. The
host system is physically attached to the device.
•
In the Device Name box, enter the name of the tape library.
3. Click Update. A tree control displays the system on the left hand side of the
Configuration Screen.
4. Click Close to return to the main screen.

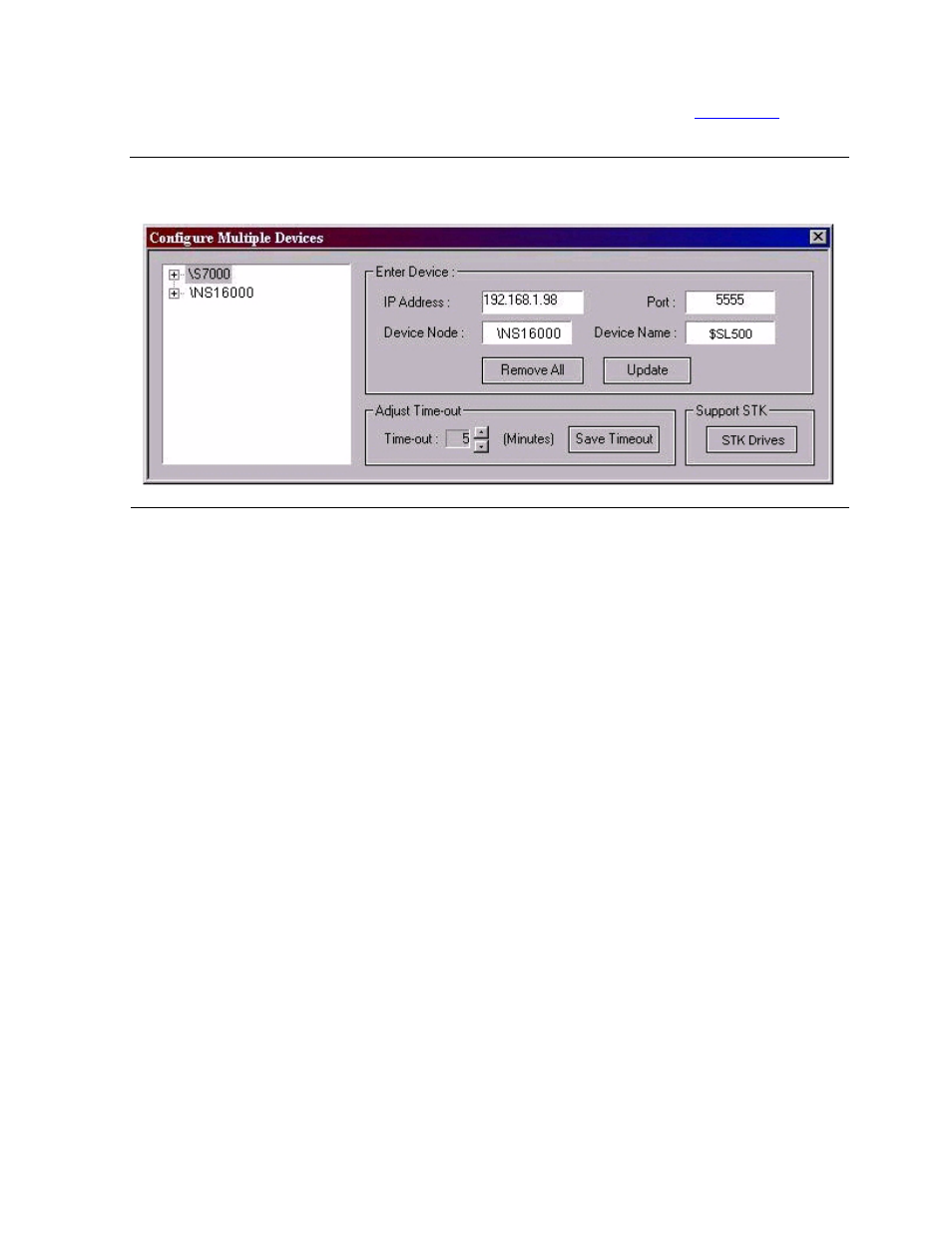

Figure 5-2. Configure Multiple Devices Dialog Box
