HP Toptools for Unicenter User Guide

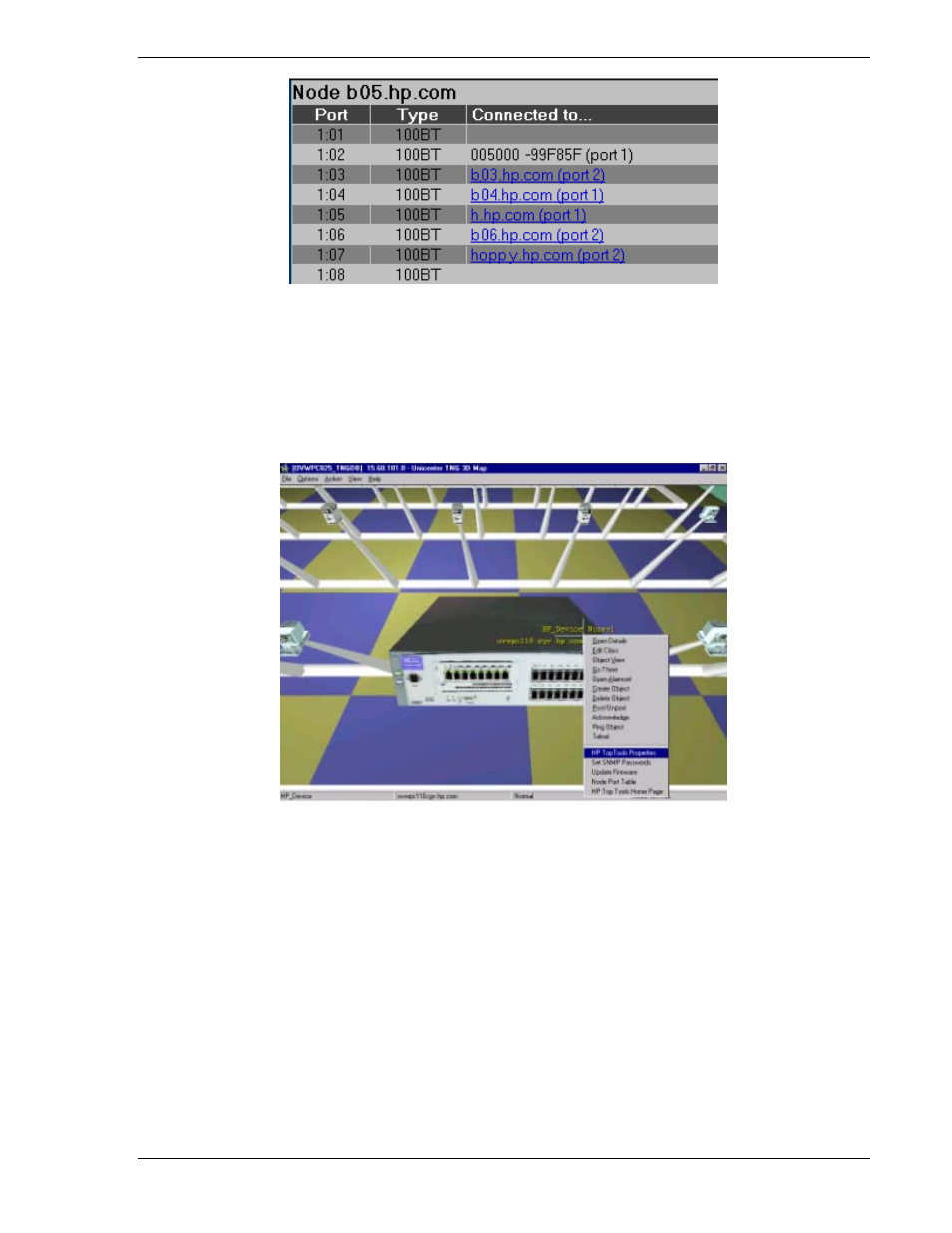

Figure 5-34. Typical Node Port Table.
Note that all HP hub and switch MIBS are now loaded into Unicenter. This means that hub and switch traps will be
formatted, and the Unicenter MIB browser can be used to GET and SET SNMP MIB variables.
Unrecognized HP hubs and switches are displayed under the class “HP_Device” and will attempt to display SNMP
Property pages or Management Home pages when such an action is selected. The following figure shows how such
a device will be displayed in the 3d map:
Figure 5-35. Unrecognized HP hubs and switches are classified as HP Device objects.
To receive traps from HP networking products, use the following options:
• Manually configure each device to send its traps to the Unicenter server.
• Use HP Toptools for Hubs and Switches SNMP/Trap Configuration to automatically configure multiple devices
to send traps to Unicenter.
• Use Properties(Device View) and click the Security button to configure trap destinations on devices not
supported by SNMP/Trap Configuration or Automatic Management. (Requires single system installation.)
• Use SNMP/Trap Configuration against a specific device to configure its trap destinations remotely. (Requires
single system installation.)
