HP Toptools for Unicenter User Guide

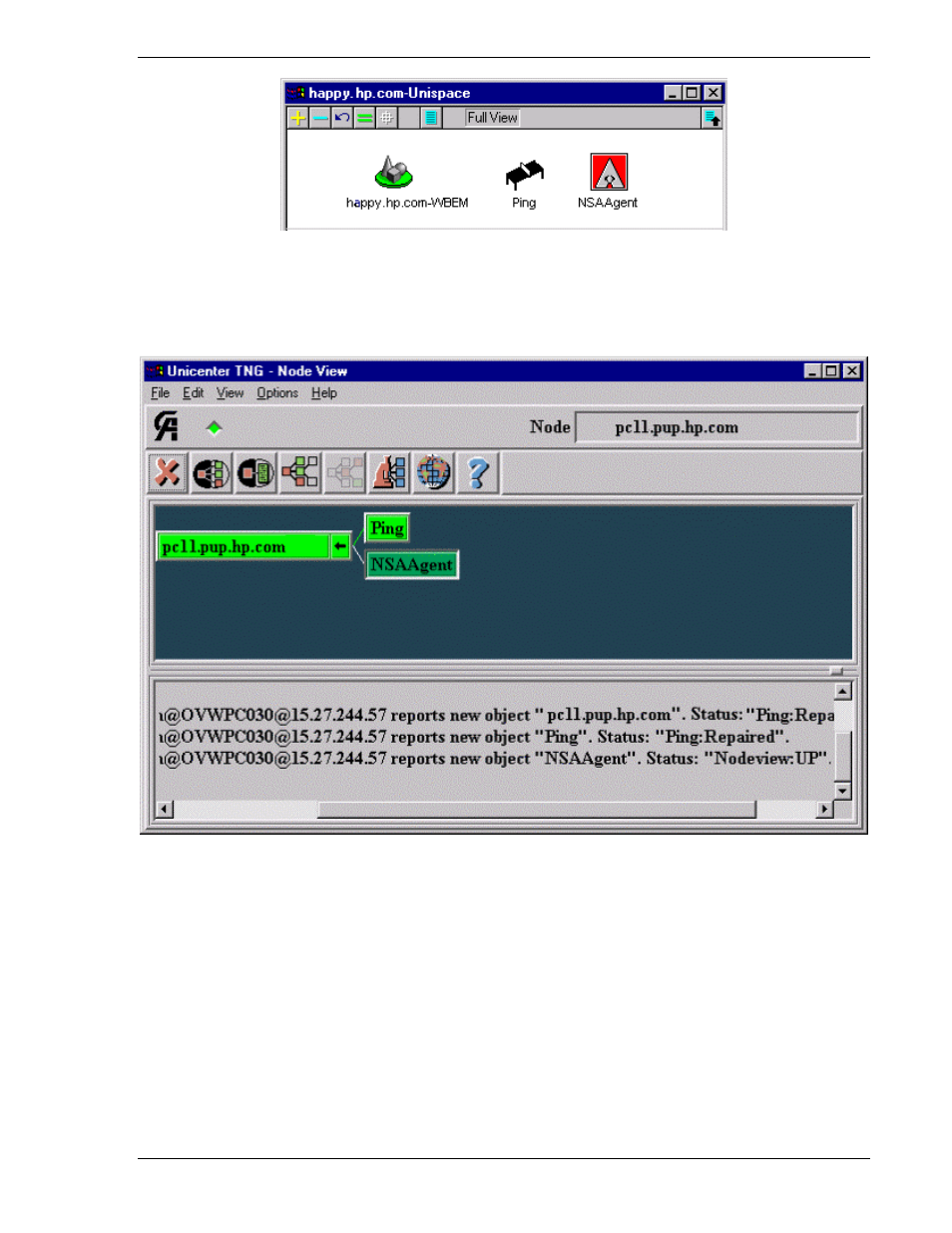

Figure 5-21. HP Server Submap.
The NSAAgent agent in the server Unispace is also shown in NodeView (Figure 5-22). This agent will change state
and reflect status upon reception of traps from an HP server. Because the hpnsaSystemInfo MIB is loaded into the
DSM mib browser directory during installation, you can perform MIB browsing from within NodeView.
Figure 5-22. HP Netserver NodeView.
5.7.6 Resetting Status on the NSAAgent
NSAAgent status reflects the severity of the last trap received by the server. To reset the status of the NSAAgent:
1. Open the submap of the managed server
2. Double click on the unispace icon to display the system's unispace window
3. Right click on the NSAAgent and select View Node.
4. Right click on the NSAAgent box and select Reset Status from the action menu.
For more information on event management with HP Toptools for Unicenter, consult the Theory of Operation
section.
