Operating the 5257ACL Tape Enclosure
5257/5257ACL Installation and User's Guide for NonStop Himalaya S-Series Tape Enclosures — 522344-001
6 -3
Control Panel
Display Messages
The control panel display can show messages of up to four lines of 20 characters each.
Many of these messages and their functions are described next. Those displays that are
described in other sections are cross-referenced here.
Power-On Self-Test Screen
When power is first applied to the module, a series of power-on self-test (POST)
diagnostics are performed. During POST execution, the model number of the module,
the current date and time, the firmware revision, and the status or result of the test in
progress are displayed on the control panel, as shown in Figure 6-3.
Table 6-1. Control Panel Functions
Screen Escape Enter
POST N.A. N.A. N.A. N.A.
Default Displays Show Status
menu Enters
Menu mode N.A. N.A.
Status Menu
(while online) Returns to Default
screen Same as in
Menu mode Same as in
Menu mode Same as in
Menu mode
In Menu
Mode Does one of:
•
Rejects currently
displayed choice
•
Aborts Control
Panel operation
in progress
•
Exits to next
higher menu level
•
Exits Menu mode
to Default screen
Accepts
currently
displayed
choice Does one of:
•
Scrolls one
line up
through list
of options
•
Scrolls part
of display
one line to
top of list of
options
Does one of:
•
Scrolls one
line down
through list
of options
•
Scrolls part
of display
one line to
bottom of
list of
options
Fault N.A. Clears Soft
Errors N.A. N.A.
Note. There is an auto-repeat feature for the scroll buttons. When you press either scroll
button for more than one-half second, the control panel behaves as if you were pressing and
releasing the button four times per second. This effect stops when you release the button.

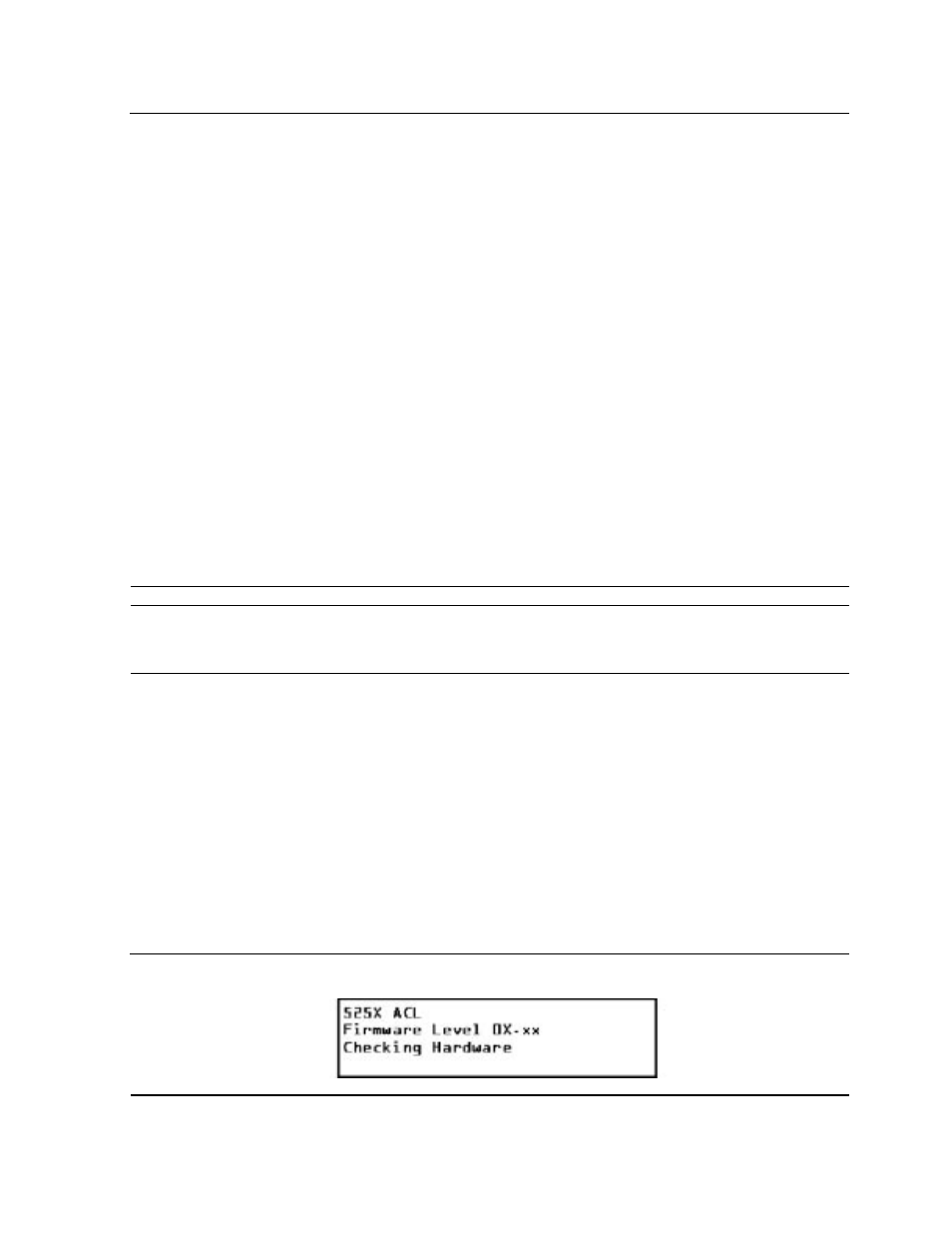

Figure 6-1. POST Screen
