2. Click the BC button. The Business Copy XP main pane appears.

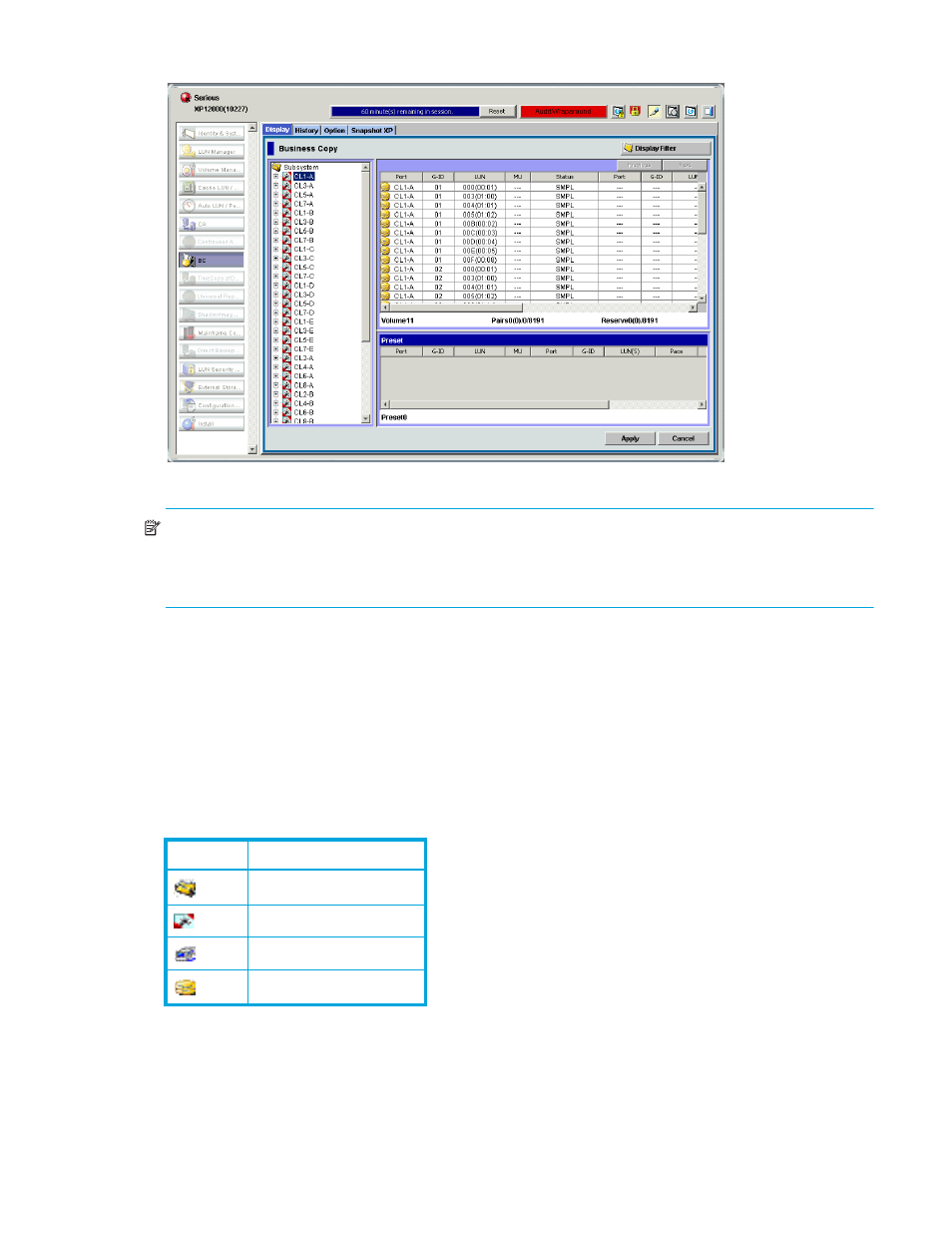

Figure 5 Business Copy XP main pane
NOTE: Although the Business Copy XP main pane displays information about Business Copy XP and
Snapshot XP pairs, this section only explains items related to Snapshot XP pairs. For more information
about items related to Business Copy XP pairs, see the HP StorageWorks Business Copy XP User Guide for
the XP10000/XP12000.
The Business Copy XP main pane displays the following items:
• Display Filter button
Displays the Display Filter pane (
Figure 8 ) where you can filter the volumes displayed in the volume list.
• Tree (left area of pane)
Displays ports that are defined paths, host groups, or LUNs in a tree format. When you select items in
the tree, information about Business Copy XP or Snapshot XP pairs appears in the volume list on the
right of the pane.
To display information about all pairs in the disk array, select Subsystem at the top of the tree.
The following icons appear in the tree.
• Volume list (upper-right area of pane)
Displays Business Copy XP or Snapshot XP pairs on the port, host group, or LUN selected in the tree.
You can sort volumes by any column heading in the volume list.
Icon Description
Disk array
Port
Host group
LUN
