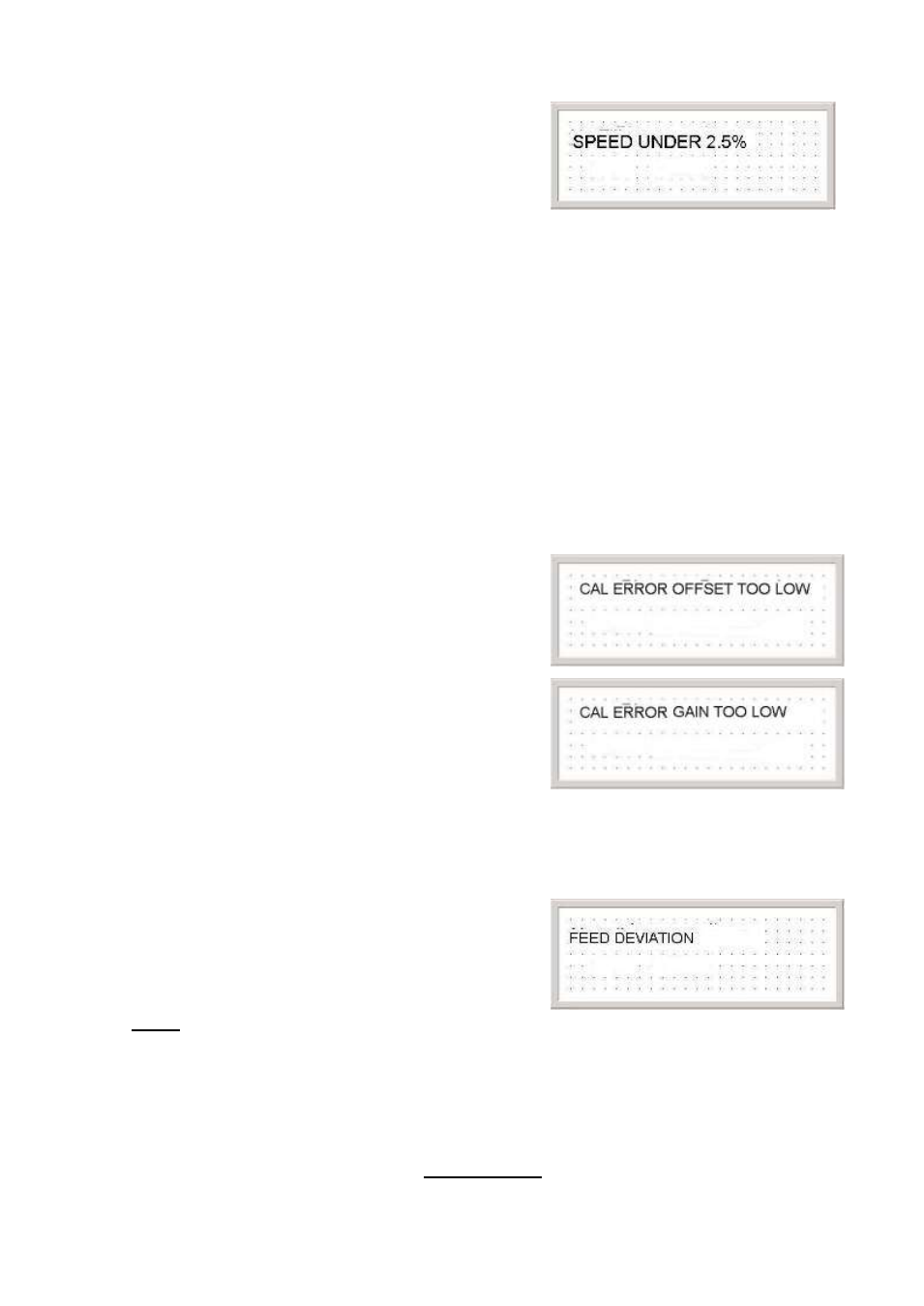

If the process conditions require a very low speed,
below the motor's low limit, an Under-Speed alarm
screen will be displayed, warning that the motor has
reached its minimum speed (2.5%) and the actual
flow is over the desired flow.

Check the entered process data (product weight and
required % MB

) and consider replacing the dosing screw with the “higher-range” type.

 Press to return to Main screen


4.7

.3 “Calibration failure” Alarms

Calibration alarms might be displayed if the "IC" (Internal Count) value is too low, either

during Offset calibration or Gain calibration. Cause could be: either an un-released load cell

(see appendix A), or damaged or unconnected load cell, or wrong selection or definition of

the standard weight during gain calibration, or defective controller. In order to proceed with

the calibration procedure, it should be repeated from the beginning.

If the calibration procedure has failed during the

Offset calibration (IC- Internal Counting value is less

then 200), following alarm is displayed:

If the calibration procedure has failed during the Gain

calibration (IC- Internal Counting value is less then

the entered Standard Weight), following alarm is

displayed:

4.7.4 Feed Deviation Alarm

When the change in the measured weight of the SF-1000 hopper between 2 successive

shots is irregular - more then twice the set point (the

desired MB shot), but not less then 10 gr., the

controller will disregard this change in his control

calculation, and will issue a Feed Deviation alarm

Notes:

1. The alarm will be announced only during Gravimetric mode (the deviation is irrelevant

during Volumetric mode).

2. The deviated batch will not be taken in account in the control process, but it will be

added to the accumulative measurement and display.

3. Unlike other alarms, this alarm

doesn’t activate the Alarm Output, as well as regard to

the Alarm sign at the left screen corner.
