Smart-UPS® VT 10-40 kVA 400V, 208V, 200V – Operation
990-2282A-001
Overview
User Interface

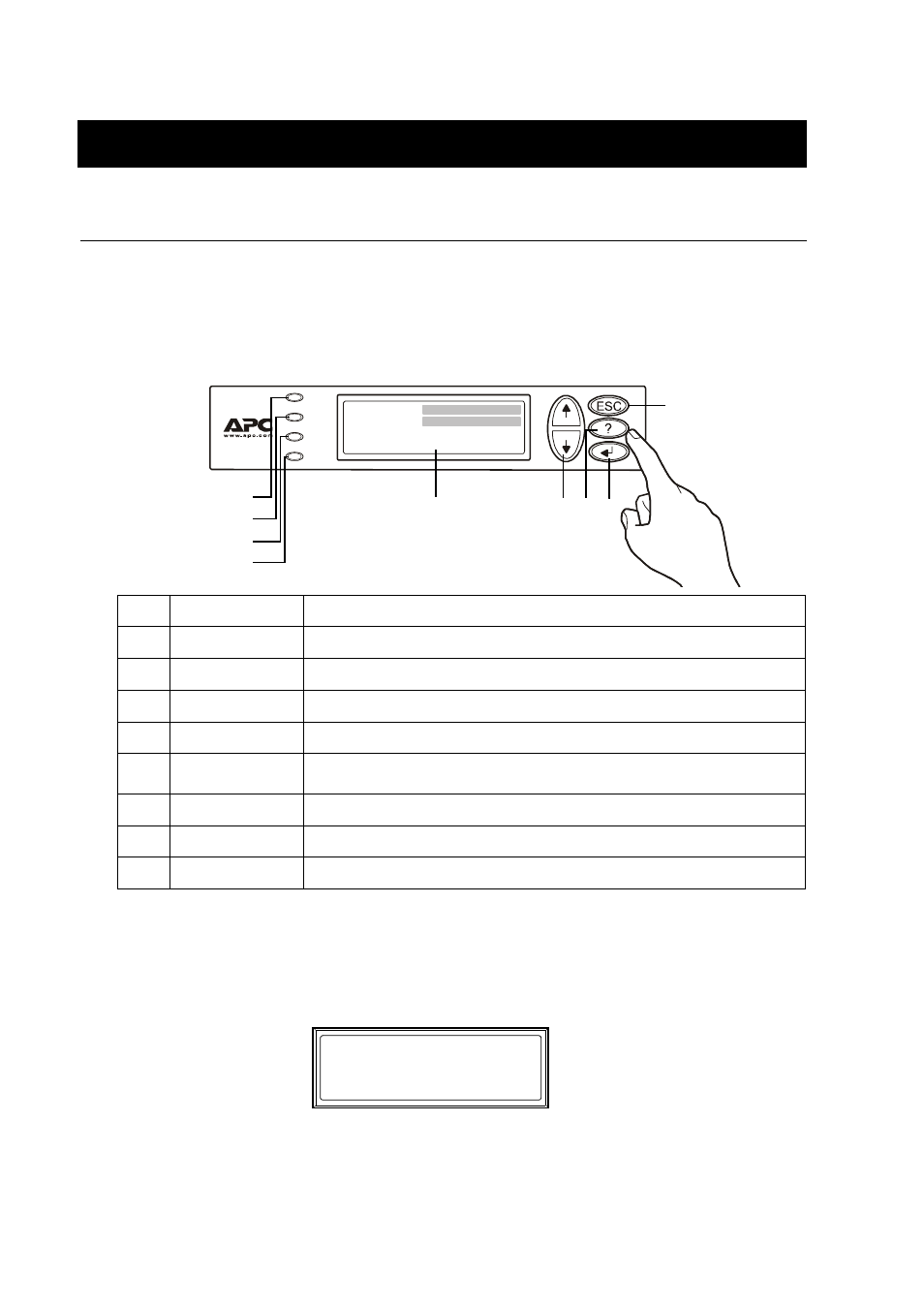

Interface area
The four LEDs to the left of the display indicate the operational status of the UPS. The five
navigation keys to the right are used to select and open menu items, to access information, change
system parameters, and to get context-sensitive help.
Display interface
Overview Screen (LCD screen).
The Overview Screen is the main entrance to the user functions
of the display interface.
The
ENTER
key takes you from the Overview Screen to the Main Menu Screen.
LOAD ON
When the green LED is lit, the UPS provides power to the load equipment.
ON BATT
When the yellow LED is lit, power flows from the batteries to the load.
BYPASS
When the yellow LED is lit, power to the load is supplied through bypass.
FAULT
When the red LED is lit, a fault condition exists.
LCD S
CREEN
Displays alarms, status data, instructional help, and configuration items.
UP
AND
DOWN
NAVIGATION
KEYS
Used to scroll through and select menu items.
HELP
KEY
Opens context-sensitive help.
ENTER
KEY
Opens menu items and confirms changes to system parameters.
ESC
KEY
Returns to previous screen displayed.
Chrg 100%
Load 000%
230Vin 000Vout 50Hz
Run-time: 00hr 30m
LOAD ON
ON BATT
BYPASS
FAULT
Overview Screen
Chrg 100%
Load 000%
230Vin 000Vout 50Hz
Runtime: 0hr 0m
