5.4 Test Block
A test block is included with the PUB equipment to allow the
transducers and inter-connecting cables to be functionally
checked.
1. Switch ON the instrument.
2. Select Quick start and enter the parameters shown in
the table below for the appropriate transducer type (A or B):
3. When the above data is entered, the SENSOR SEPARATION screen will be displayed.
4. Press either the UP/DOWN cursor keys to go to the SENSOR SELECTION menu.
Sensors: INVALID Interpretation: The selected temperature is higher than the maximum allowed for the
sensor type.
Response: Enter a different temperature.
Mode: Err Typ Interpretation: The selected sensors are invalid and the mode cannot be verified.
Response: Select a mode that gives a non-zero separation distance.
BATTERY ERRORS
Battery Low Interpretation: The battery has discharged to below 30% remaining. This leaves the
instrument with approximately 4 hours remaining, depending on power usage, before it
needs recharging.
Response: Recharge the internal battery at the earliest opportunity. Do not leave the
instrument for a prolonged period with a fully discharged battery.
Battery Exhausted Interpretation: The battery is approaching a fully discharged state and the instrument is
about to store the internal data and shut-down.
Response: Recharge the battery.
Parameter A Sensors B Sensors
Pipe outside diameter 1.18 inch 1.97 inch
Pipe wall thickness 0.55 inch 0.87 inch
Pipe lining thickness 0.0
Pipe wall material Plastic
Fluid type Water
Mode Diagonal
Temp 68°F

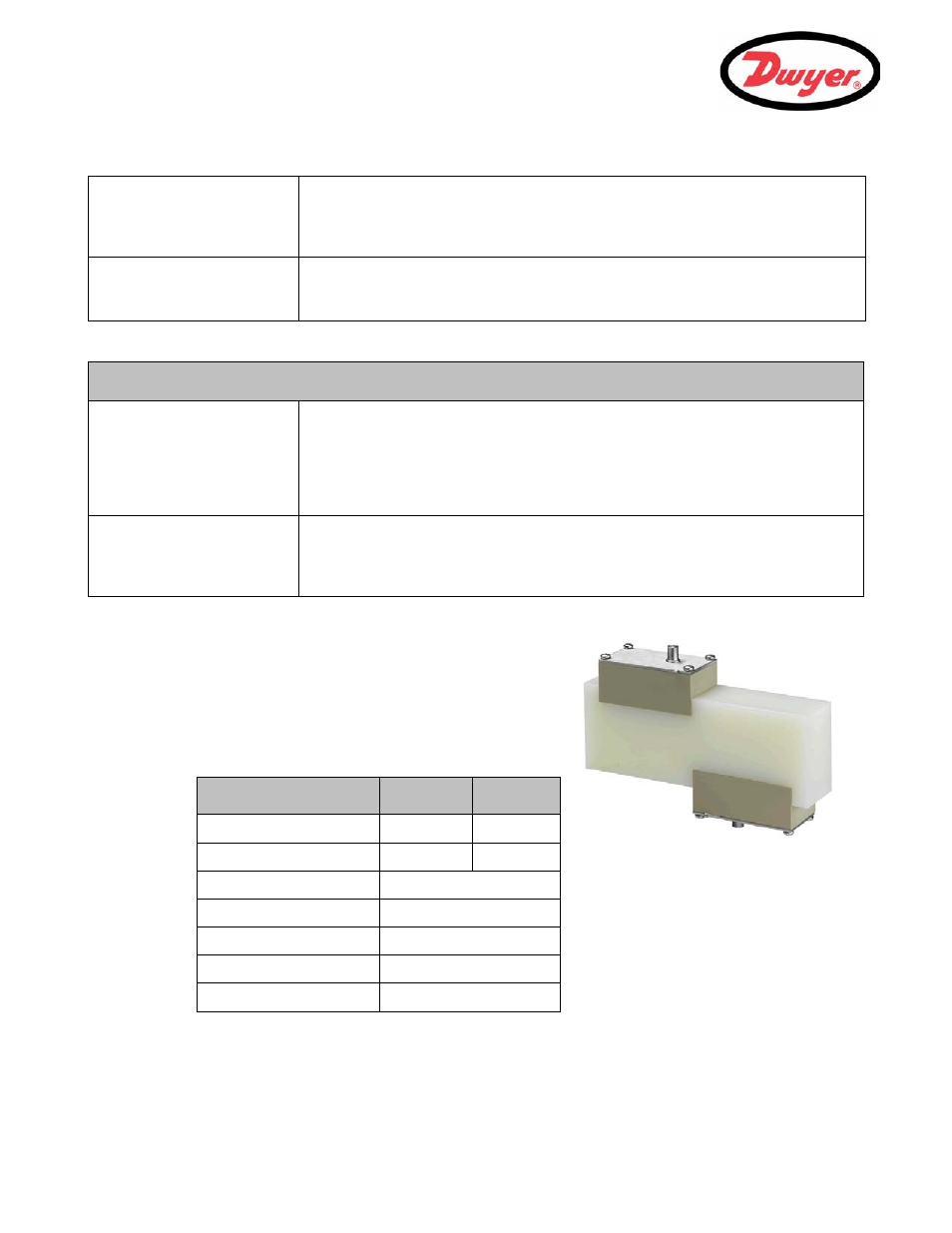

Figure 5.2 Test block
