The meter icon changes to reflect the status of the meter throughout the reading cycle For example, a successfully read
meter changes to a green circle as shown in the lower right portion of the screen in Figure 22

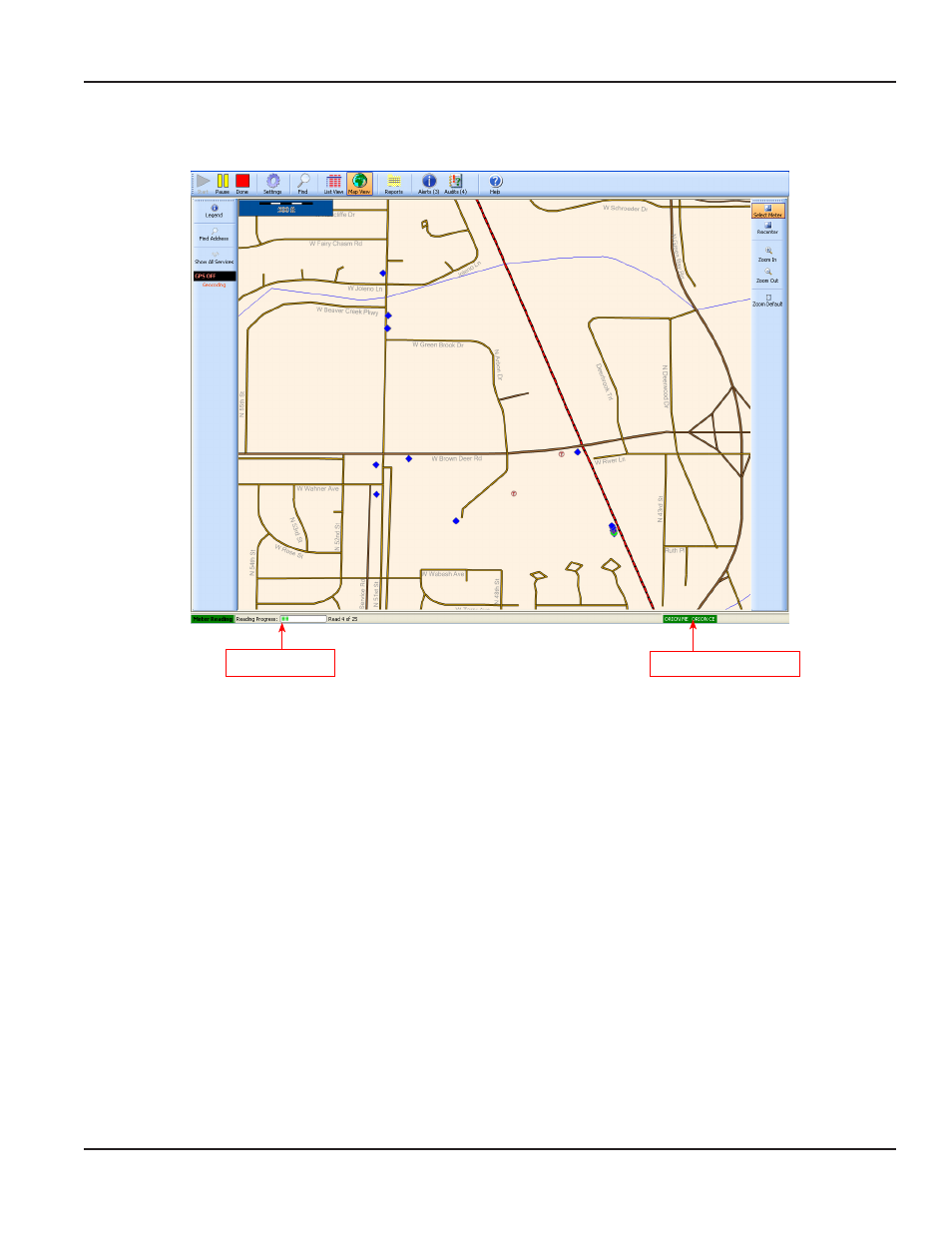

Figure 22: Route map with meter icons after reading
For a list of all the icons and what they represent, refer to "Meter Icons" on page 25
The status bar in Figure 22 shows meter readings have been captured for 4 of 25 endpoints loaded in the route file and the
ORION mobile transceiver and ORION mobile receiver are in communication with ORS as indicated by the green background
color where “ORION ME ORION CE” is displayed on the status bar
Communication with ORS Reading progress
ReAdING A ROuTe
