3 Operation and visualization
3.2.7 Counters / integrators / operating time
Count display is optionally available (extra code). If it is available, a screen

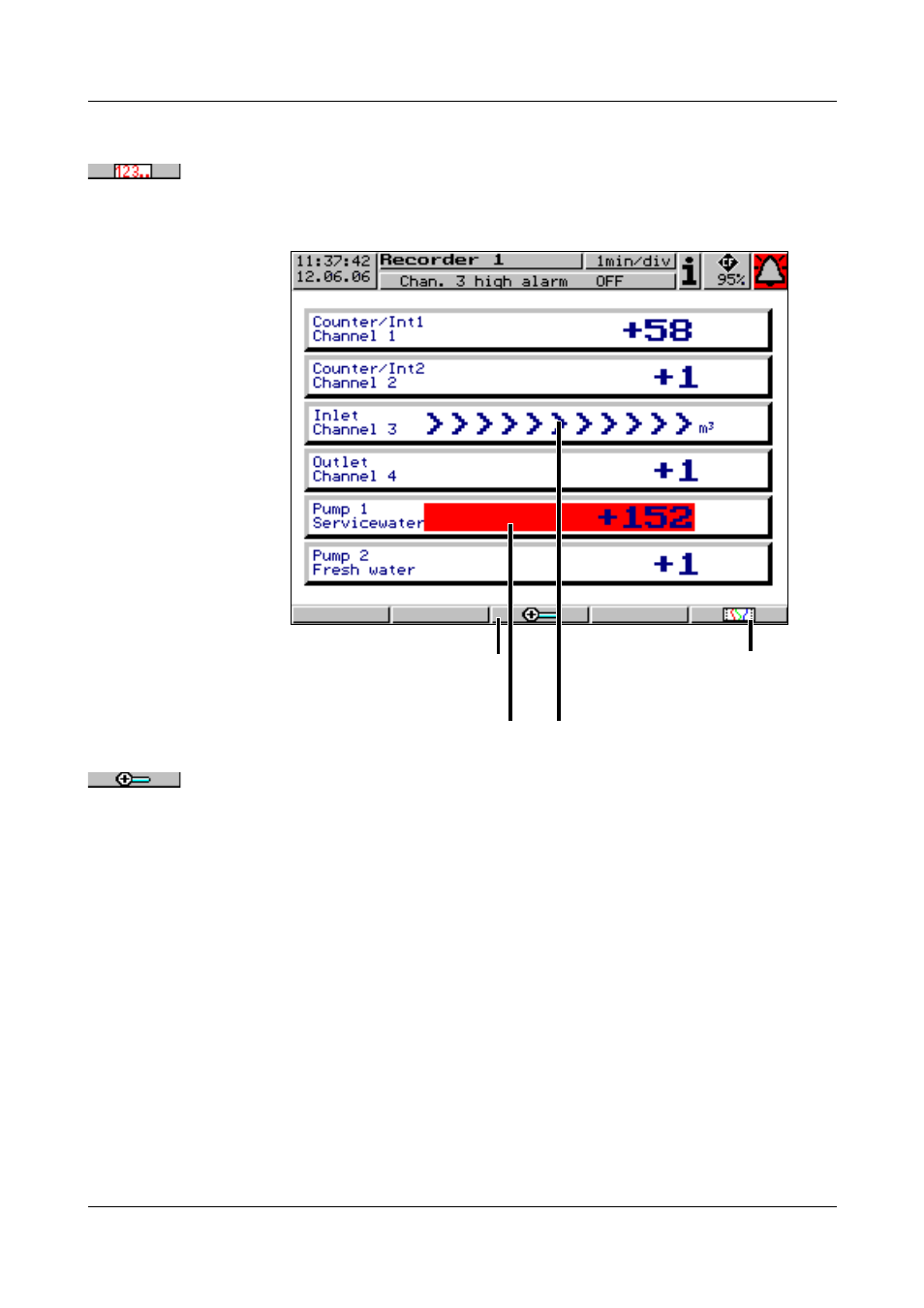

such as the following will appear after the softkey has been pressed, in which
the current counts are shown in a numerical form.
Press the softkey to activate the expanded representation.
Show curves
Expanded representation
Programmed
alarm limit
was exceeded
Overrange
