3 Operation and visualization
34

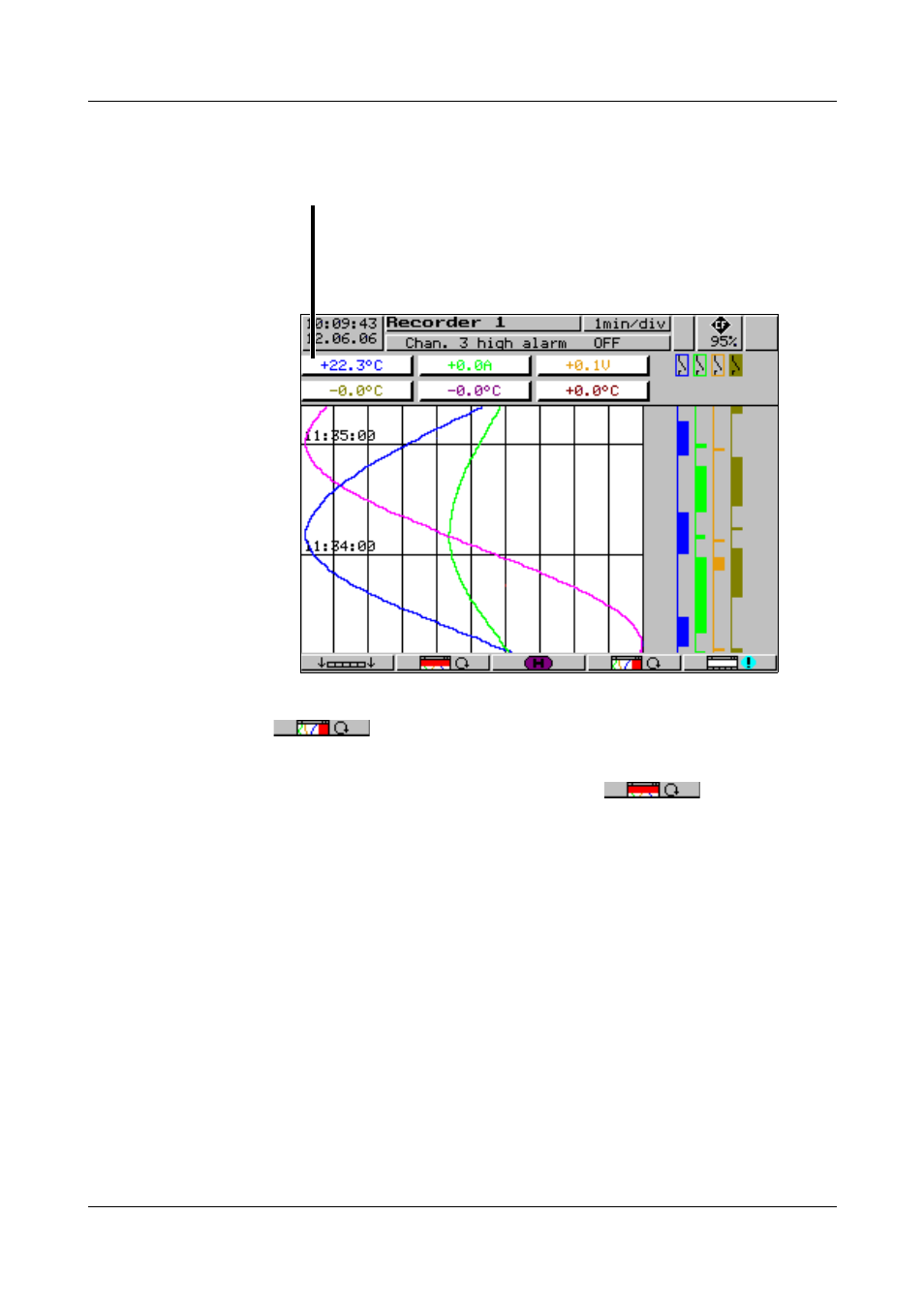

3.2.1 Diagram representation with digital display (small measurements)
Diagram representation can be reached from the basic menu, by calling up the
“Visualization” menu or by pressing the
D key.
By using the parameter Parameterization ➔ Diagram view ➔ Signal type (or
the
button), it is possible to select whether, in addition to the
analog channels, the event traces are to be displayed as well. The contents of
the header are determined by means of the parameter Parameterization ➔
Diagram view ➔ Channel representation (or the
button).
- current measurements of the analog inputs, including dimensional unit
- measurement on a red background
 out of limit
