3 Operation and visualization
40
Cursor

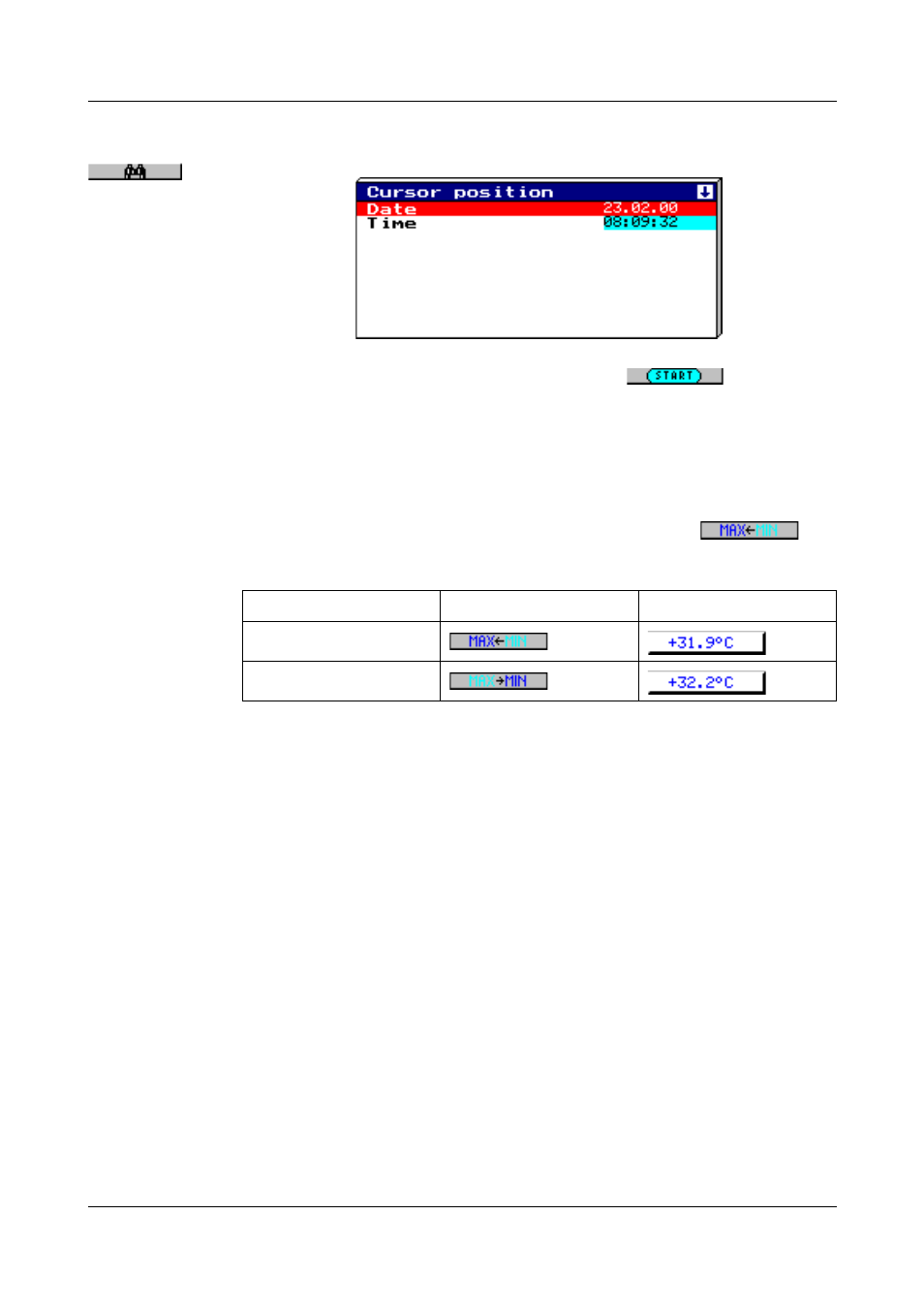

positioning After activating the button, the following dialog appears for positioning the
cursor on a specific time:
After entering the date and time and activating , the cursor is
positioned on the selected time.
If no measurement data have been stored for the selected time, then the
cursor is positioned on the next possible time.
Peak-value
acquisition If the data have been recorded in the “peak value” mode, then two different
measurements (one minimum and one maximum value) may be displayed
graphically for one instant of time (storage cycle). Using the key,
it is possible to switch between minimum and maximum value display within
the “measurement” display mode.
Peak value acquisition is programmed (activated) through the parameters:
- Configuration ➔ Measurement storage ➔ Normal display ➔ Stored value
- Configuration ➔ Measurement storage ➔ Event operation ➔ Stored value
- Configuration ➔ Measurement storage ➔ Timed operation ➔ Stored value
For further information about the “measurement” display mode, see Chapter
3.2.1 “Diagram representation with digital display (small measurements)” and
Chapter 3.2.4 “Large digital display (large measurements)”.
Function key Channel line
Minimum
Maximum
