9 installation – West Control Solutions DataVU 5 User Manual
Page 119
119
9 Installation
Extra code IP65
The following instructions must be followed when installing the paperless
recorder with extra code IP65.
- The seal for the control panel must be fitted before the recorder is installed.
- Instead of the 2 mounting brackets, there are 4 wide mounting brackets
that have to be used (one element for each side of the housing).
- The cover plates for closing the cutouts for the mounting brackets must not
be used.

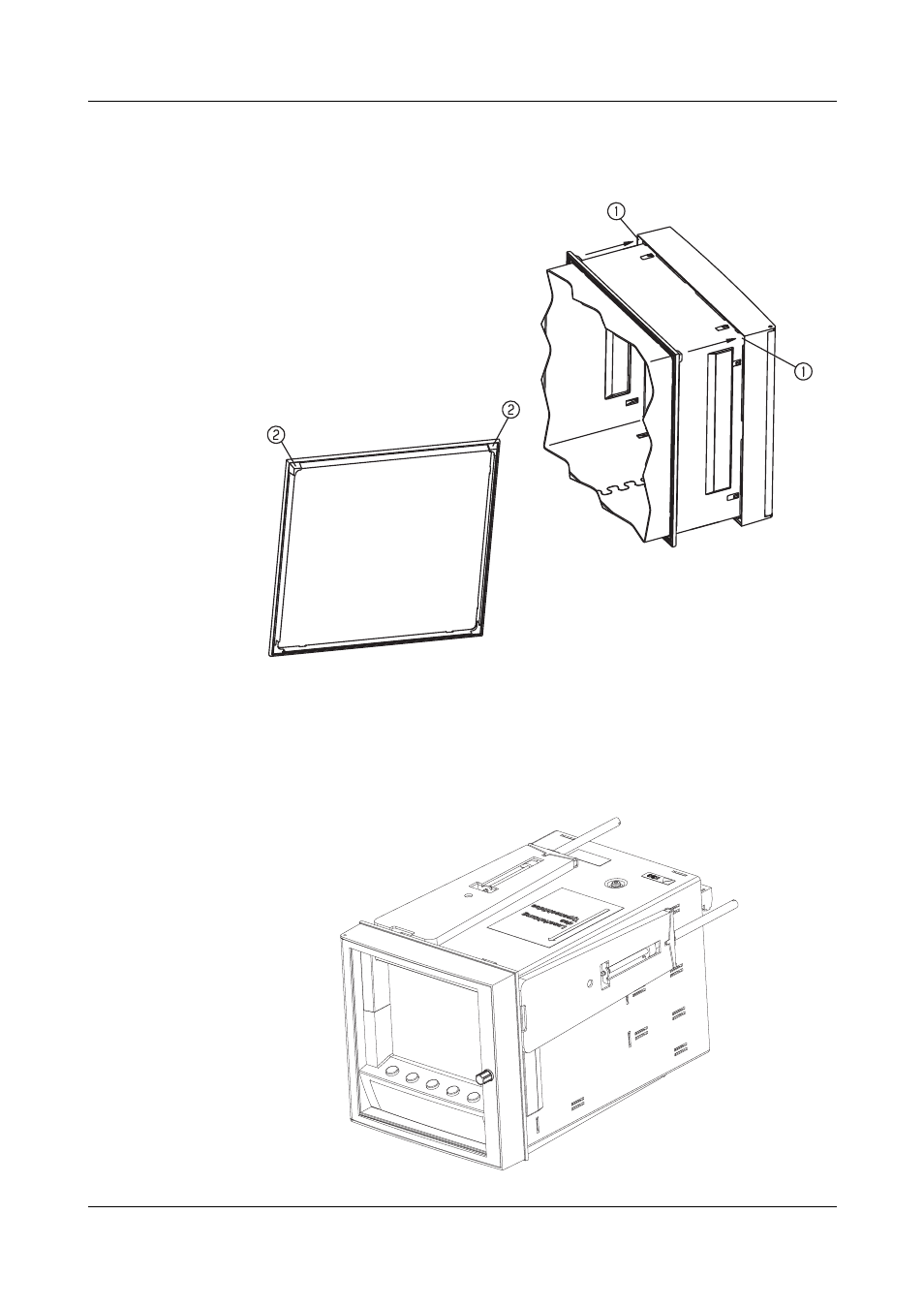

Caution!
Make sure that the seal is correctly
positioned.
The two large indentations
on the
front frame must be closed by the two
lugs
on the seal.
