SHIMPO TRC-Series User Manual
Page 8
4
3.3

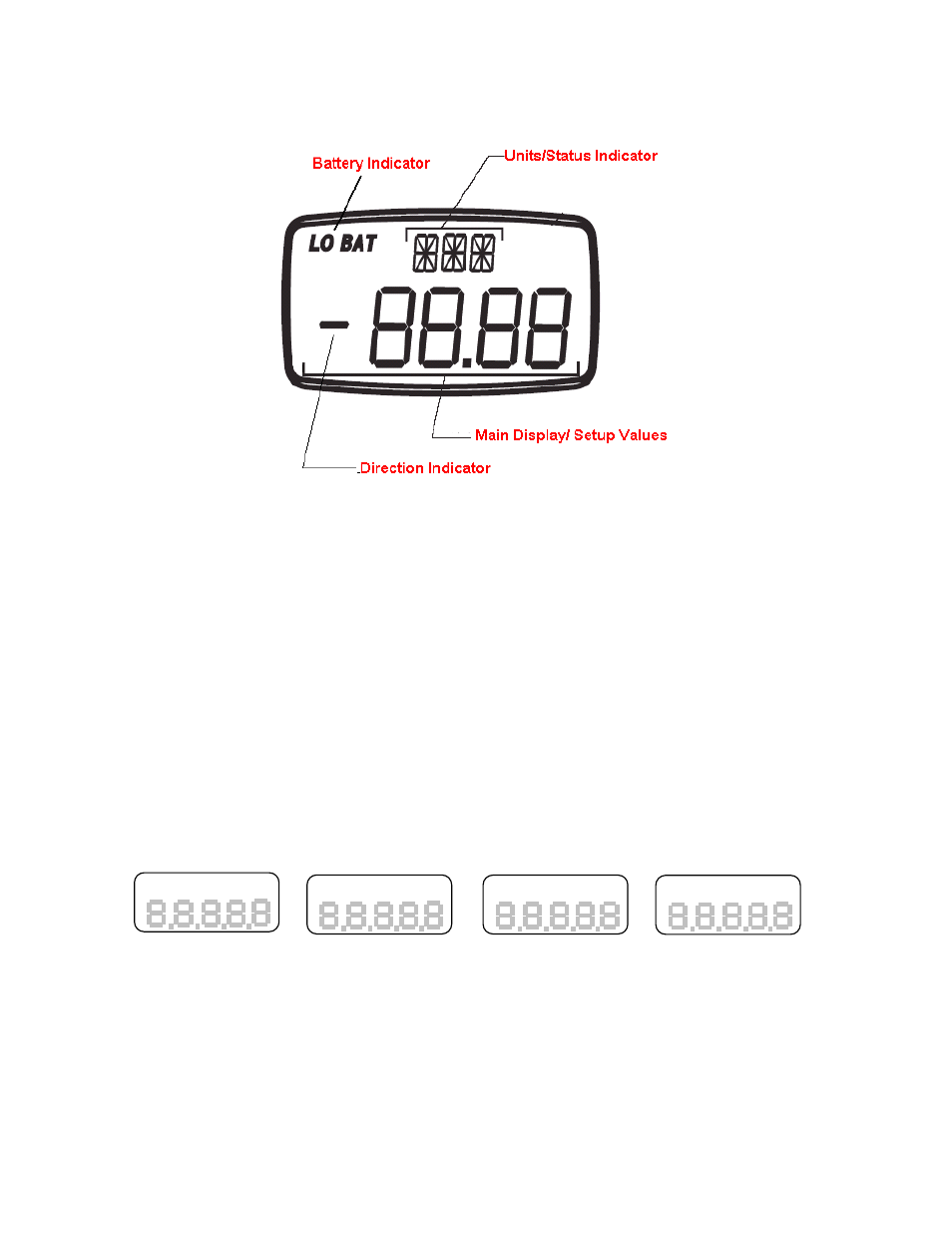

Main Display
3.3.1
Main Display/Setup Values
Main display shows four digits including decimal point.
The + sign means CW direction torque, the – sign means CCW direction torque in Mean mode.
IMPORTANT NOTE: In the case of Peak mode selection, the sign is always +.
3.3.2
Unit/Status Indicators
Located on the upper part of display, this shows the unit of measure selected.
It also serves as a sub display under function mode or status. The example display is shown in below.
lb-in unit
N-m unit
lbI
Nm
Overload
1 minute warning
before it turns off
OVR
PWR
