14

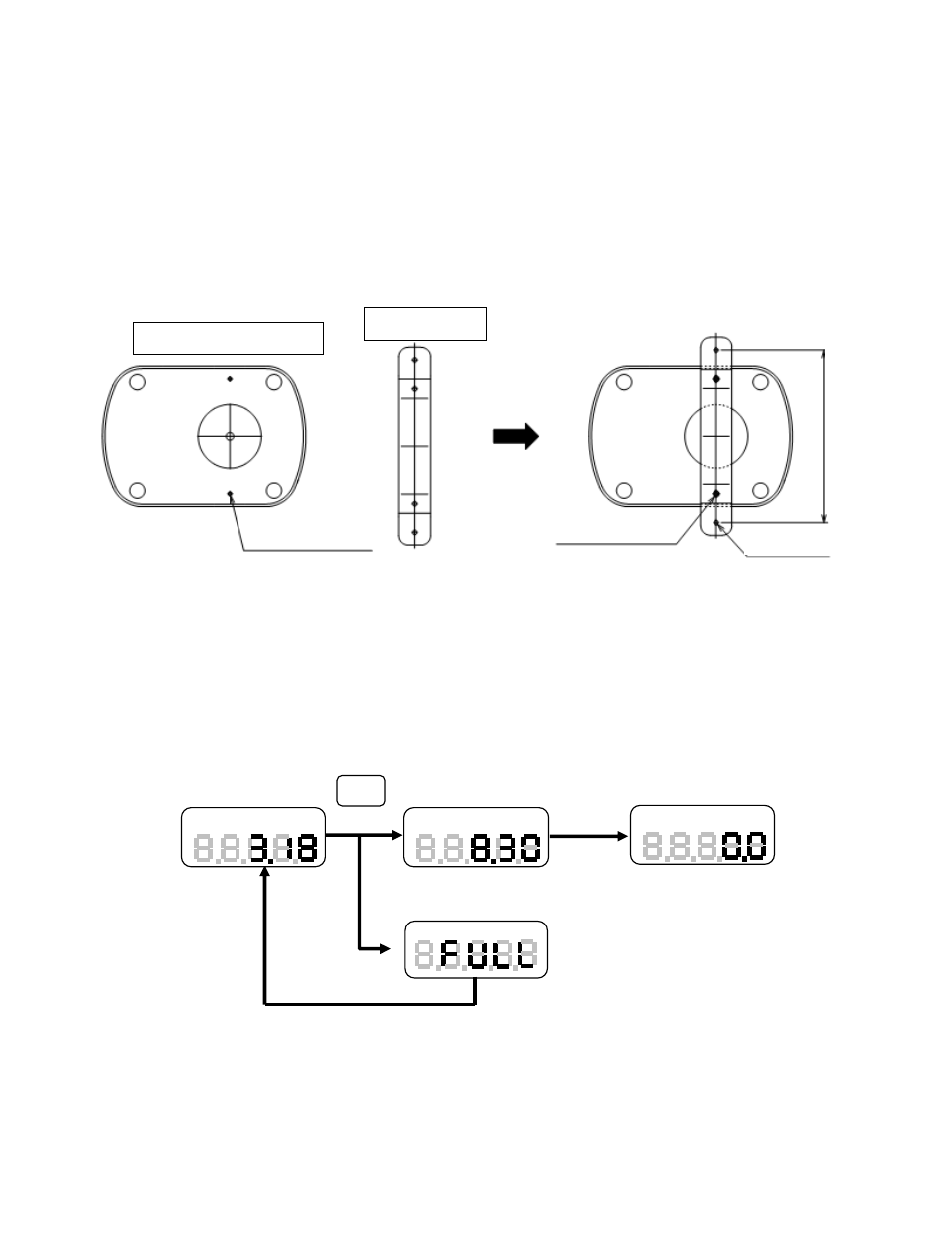

7.5 Set Mounting Bracket
Secure the TRC to a work bench or other suitable surface by using the mounting bracket accessory if the
TRC moves during measurements.
Procedure to mount the mounting bracket:
1. Prepare the mounting bracket (1) and bolts M6x15 (2) of accessories.
2. Set the mounting bracket to the bottom of the unit by the bolts as shown below.
3. Set the unit to worktable using two holes (diameter 7mm).
8 Memory Function
8.1 Saving Data in Memory
Measuring torque data can be stored in the unit by pressing Memo key.
The feature is only available in Peak mode.
The unit is able to store 300 data for each pattern of High/Low limits.
M6 tap (2)
Mounting
Bottom of TRC
Hole x2 (Ø7mm)
Bolts M6x15 (2)
for mounting
1
0
.6
3
”
(2
7
0
m
m
)
If the stored data of this pattern is already 300,
the display is “FULL” and the data can not store.
003
Saving data
“003” is the 3 rd data.
Return to measuring mode after 1 sec
Peak reset
after 1sec
-1- -1-
-1-
Pattern No. 1
Memo
