24
Note: On the transducer cable end individual shields are not connected and should not
protrude from under the shrink tubing.

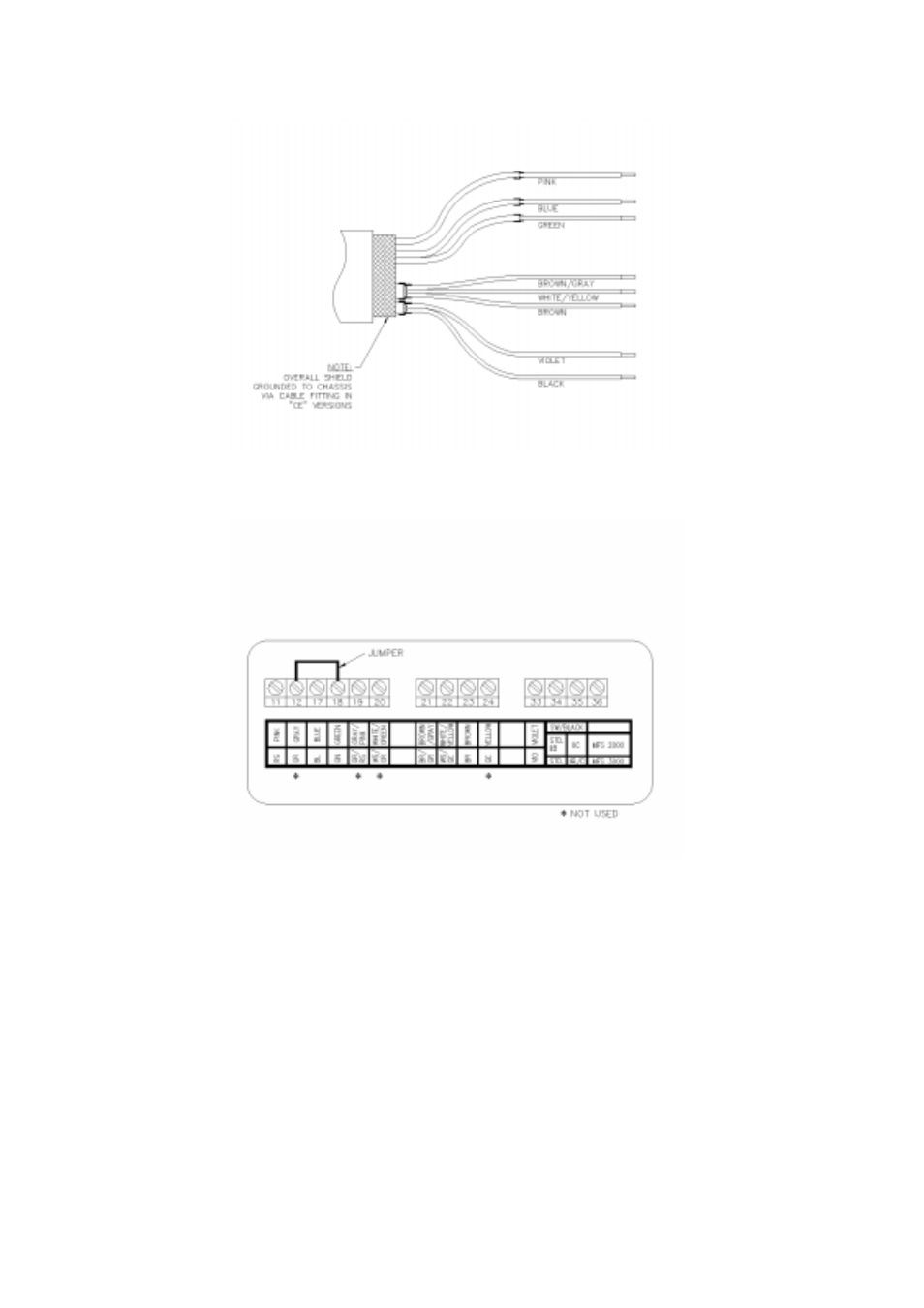

Fig. 27: Signal cable terminations - transducer end
For MFM 2081 F, the black wire should be connected to terminal 34 for standard and EEx ib II
B applications, or to 35 for EEx ib II C applications
For MFM 3081 F, the black wire should be connected to terminal 34 for standard applications,
or to terminal 35 for EEx ib II C applications
Fig. 28: Transducer terminal box connections
