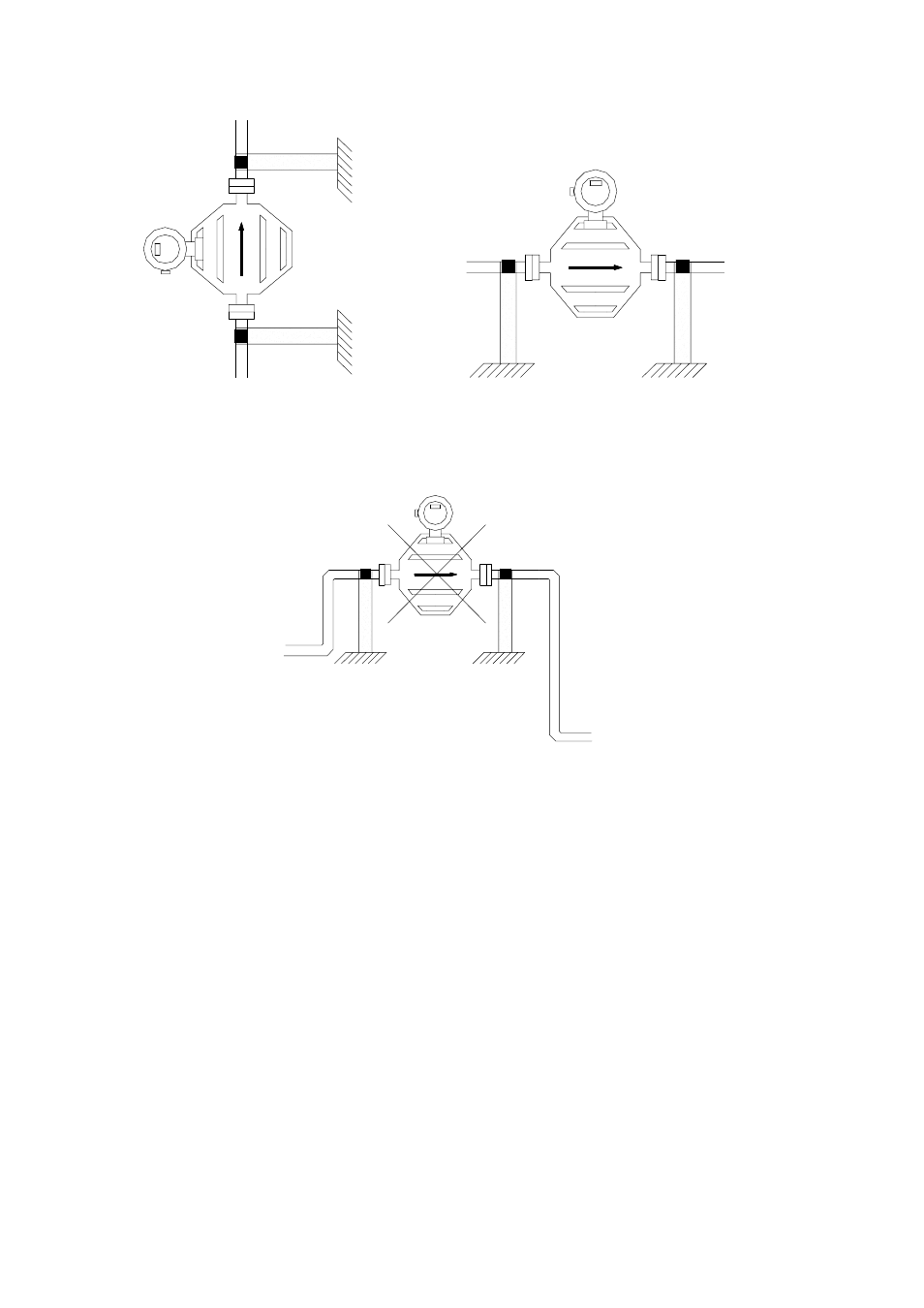

Fig. 7a Vertical installation

Fig. 7b Horizontal installation

Highest position in Pipeline
Avoid mounting the transducer in this position as gas bubbles may collect and remain in
measuring system causing incorrect measurements (see Fig. 8).

Fig. 8 Avoid highest position in pipeline
