Installation – KROHNE OPTISENS COND 1200 EN User Manual
Page 21
INSTALLATION
3
21
OPTISENS COND 1200
www.krohne.com
01/2014 - 4001967301 - MA OPTISENS COND 1200 R01 en

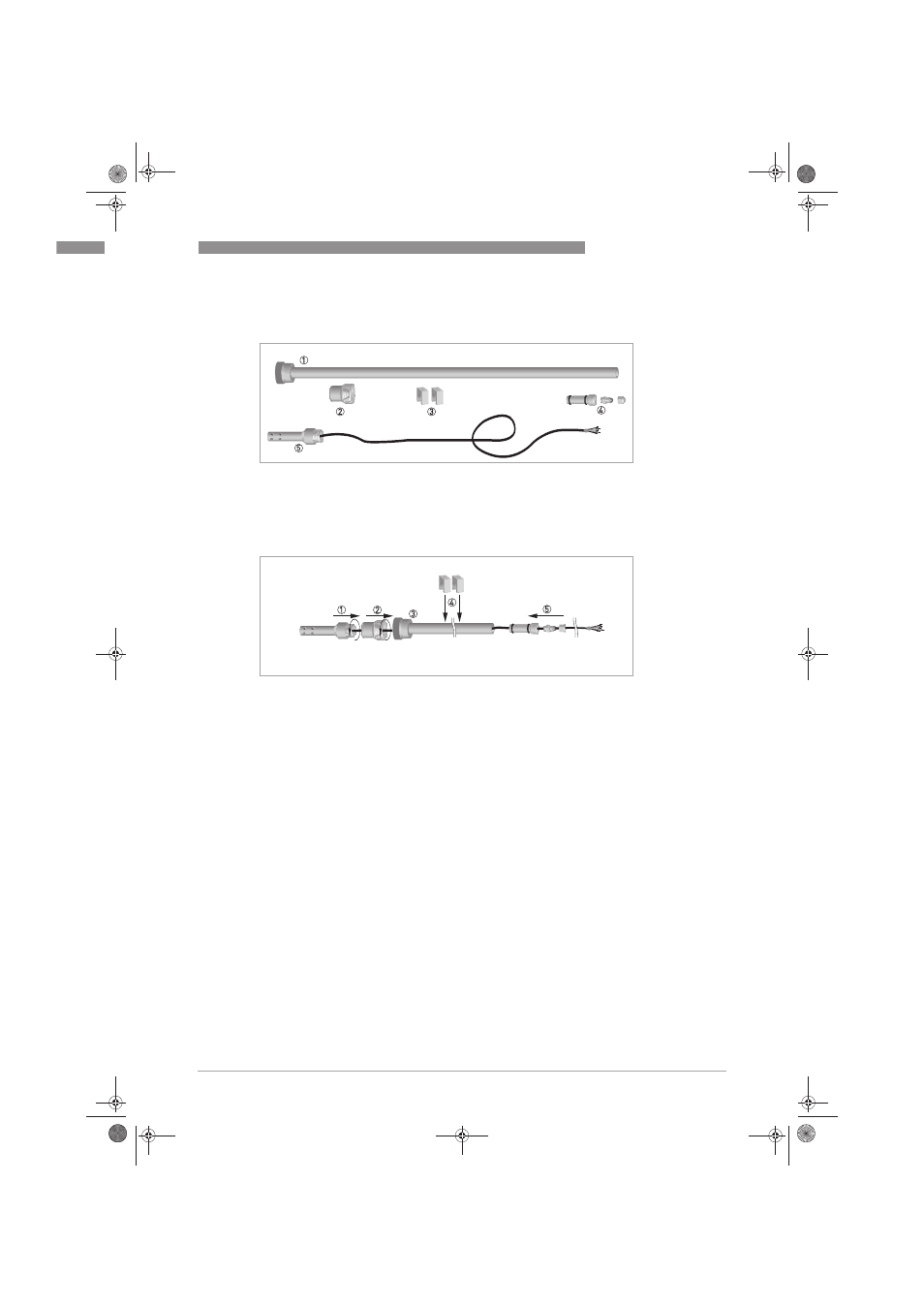

3.7.3 Mounting sensor into immersion assembly
• Pull the cap with cable gland 5 off the immersion assembly
• Push the sensor cable through the sensor-assembly connector 2, the immersion assembly
3 and the cap with cable gland 5.
• Screw the sensor-assembly connector 2 into the immersion assembly 3. Then screw the
sensor 1 into the sensor-assembly connector.
• Push the cap with cable gland onto the immersion assembly again 4.
1 Immersion assembly
2 Sensor-assembly connector
3 Clamps
4 Caps with cable gland
5 Sensor (only for immersion version with attached cable)
1 Sensor with attached cable
2 Sensor-assembly connector
3 Immersion assembly
4 Clamps onto immersion assembly
5 Cap with cable gland
