7.1.2 Replacement of external battery
• Remove the protection cap and loosen the 4 Allen bolts (4mm) (IP67 housing).
• Remove the cover.
• Loosen the used cable gland in the bottom of the converter housing.
• Remove the metal strip at the bottom of the housing (2 screws).
• Disconnect the connector of the battery.
• Remove the cable of the old battery.
• Lead the cable of the new external battery through the gland opening and mount the attached
cable gland loosely.
• Pull the cable to the top of the electronics.
• Fasten the battery connector to the internal connector in the converter.
• Check if the display lights up.
• Refit the metal strip at the bottom of the housing.
• Tighten the cable gland.
• Put back the cover.
• Tighten the 4 bolts and put back the protection cap (IP67 housing).
• For closing the case of the converter in the IP68 housing, please refer to
IP68 housing,
compact version on page 26.

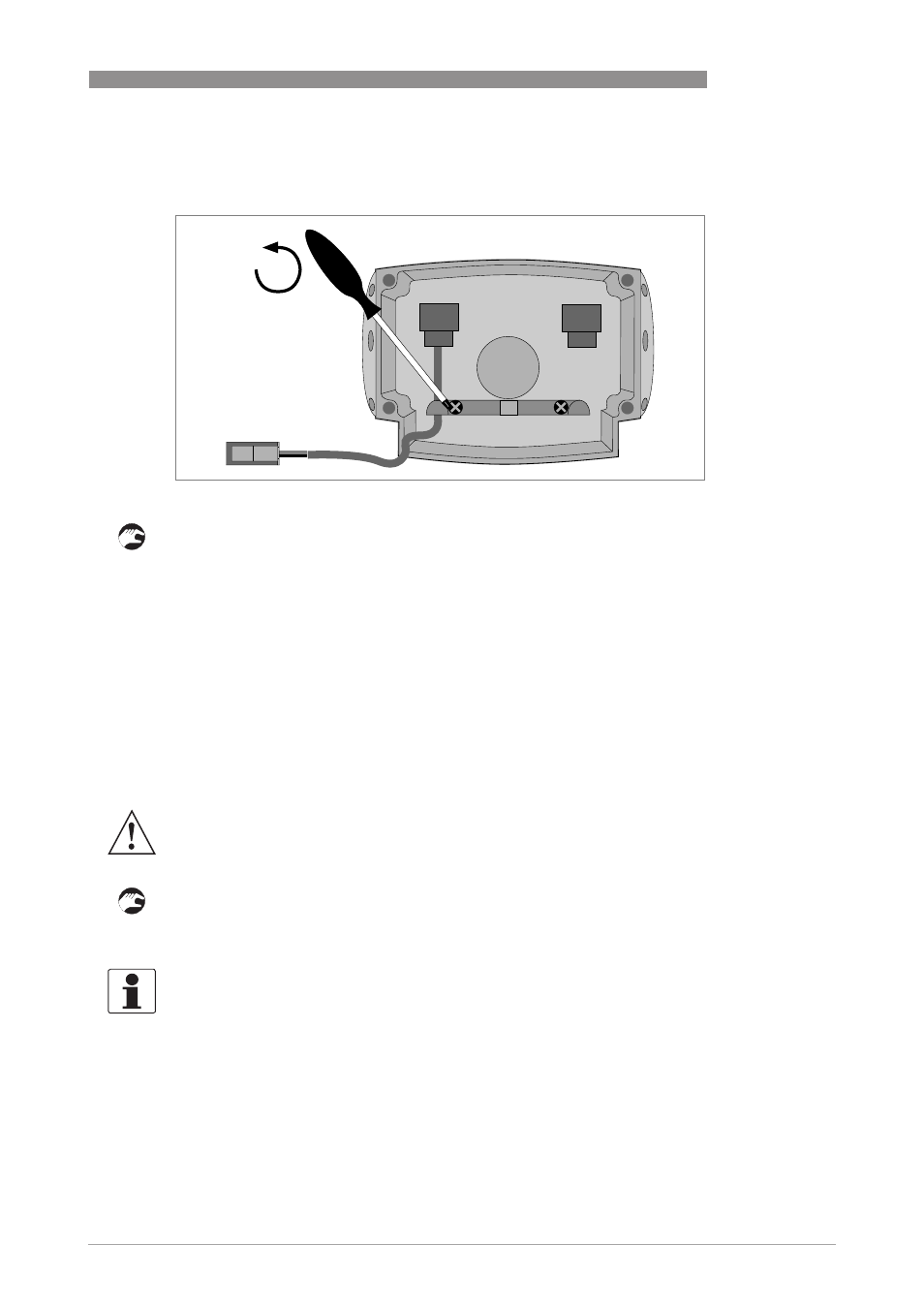

Figure 7-3: Removing the metal strip
WARNING!
Make sure that the battery cable is not jammed by the cover.
INFORMATION!
After a change of batteries, reset the battery lifetime counter. For changing the menu settings of
the battery, please refer to Battery on page 53
.
