6.1.1 Show counters and flow rate on the display
Depending on the settings, the display shows the sum counter and optionally the forward and
reverse counter and the flow rate. In addition, the display shows the unit of measurement,
direction of the flow, and if selected, a decimal point or a multiplier value.
Set display to a different counter or to flow rate:
• Press the left optical key for 1 second to cycle to the next display.
• Leave the optical key untouched, to keep the current display.
• If the meter is set to AMR mode, the display will always switch back
to the sum counter display.

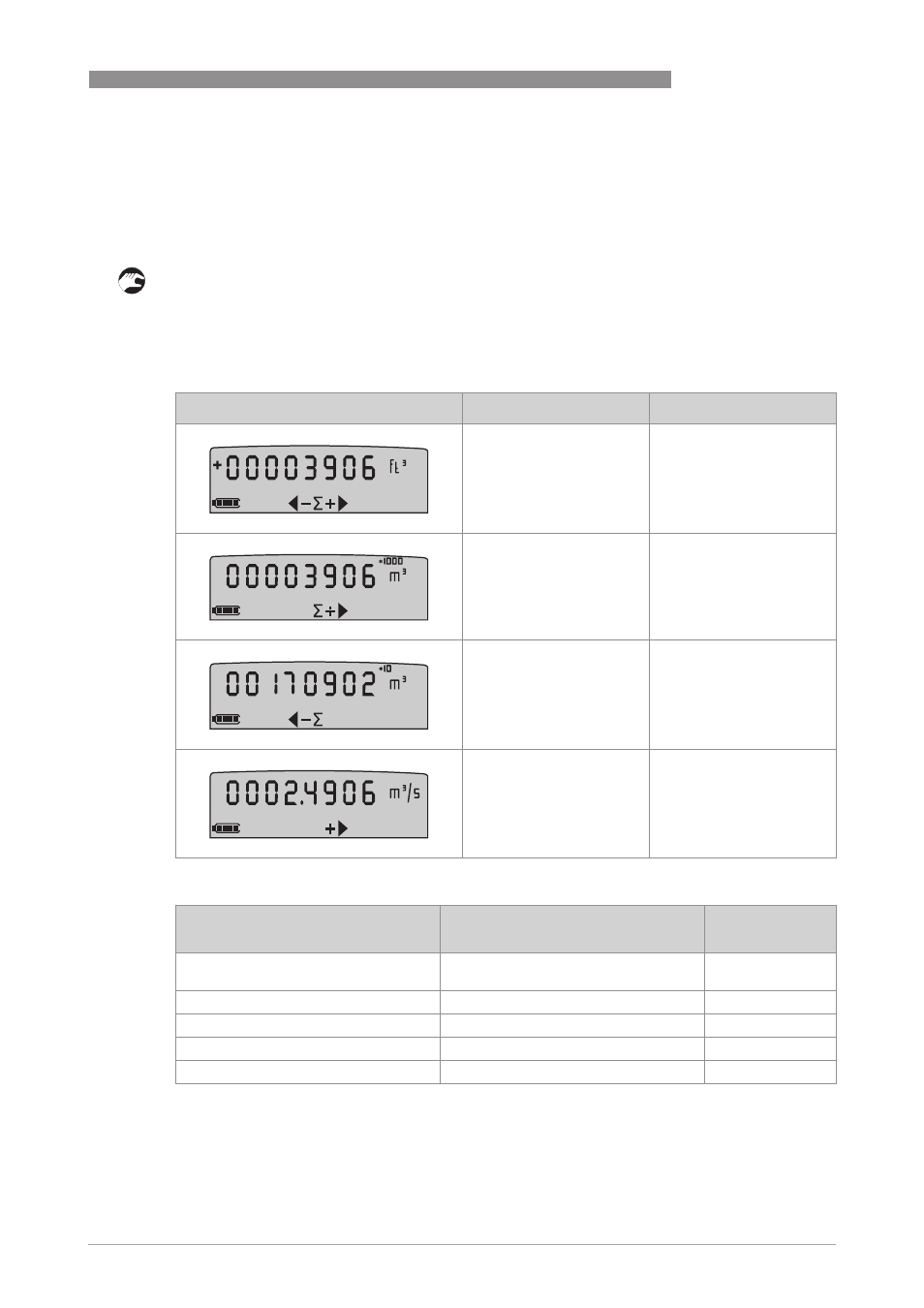

Display symbols for flow direction and counter settings
Display Description Menu setting
Sum counter (default) Always available
Forward counter Available if menu number
13 is set to 1
Reverse counter Available if menu number
14 is set to 1
Positive flow rate Available if menu number
17 is set to 1
Flow direction is from left to right
(default) Flow direction is from right to left Description
- ∑ + + ∑ - Sum counter
(default)
∑ + + ∑ Forward counter
- ∑ ∑ - Reverse counter
+ + Positive flow rate
- - Negative flow rate
