2.4

INPUT/OUTPUT SIGNALS

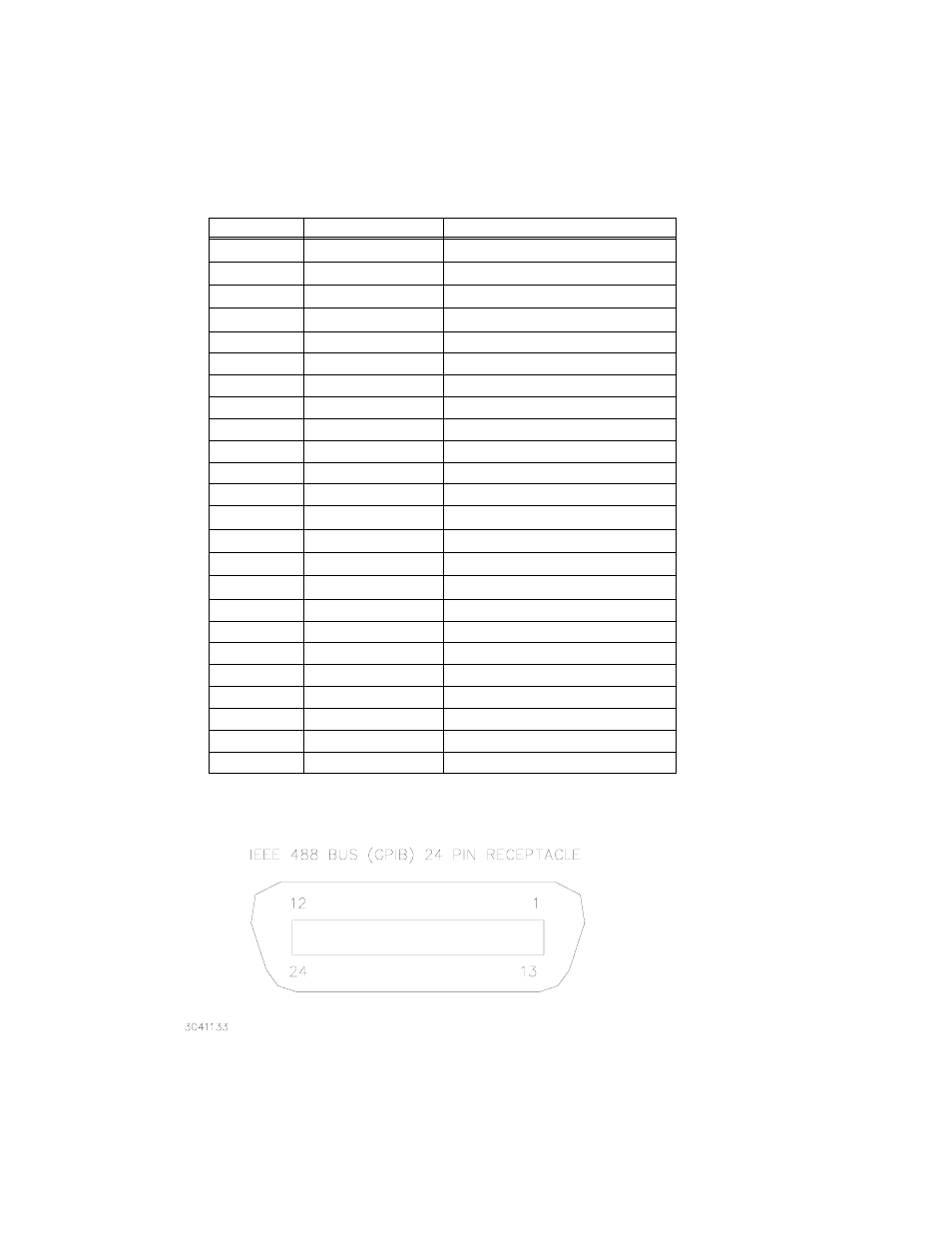

The IEEE 488 port is a 24 pin IEEE 488 connector (Figure 2-4) and conforms mechanically and
electrically to the IEEE 488 standard. Refer to Table 2-3 for pin assignments.

FIGURE 2-4. IEEE 488 (GPIB) CONNECTOR

TABLE 2-3. INPUT/OUTPUT PIN ASSIGNMENTS

PIN

SIGNAL NAME

FUNCTION

1

D

I

01

I/O Line

2

D

I

02

I/O Line

3

D

I

03

I/O Line

4

D

I

04

I/O Line

5

EOI

End or Identify

6

DAV

Data Valid

7

NRFD

Not Ready for Data

8

NDAC

Not Data Accepted

9

IFC

Interface Clear

10

SRQ

Service Request

11

ATN

Attention

12

SHIELD

Shield

13

D

I

05

I/O Line

14

D

I

06

I/O Line

15

D

I

07

I/O Line

16

D

I

08

I/O Line

17

REN

Remote Enable

18

GND

Ground (signal common)

19

GND

Ground (signal common)

20

GND

Ground (signal common)

21

GND

Ground (signal common)

22

GND

Ground (signal common)

23

GND

Ground (signal common)

24

LOGIC GND

Logic Ground
