2-2
BIT 4882 030507

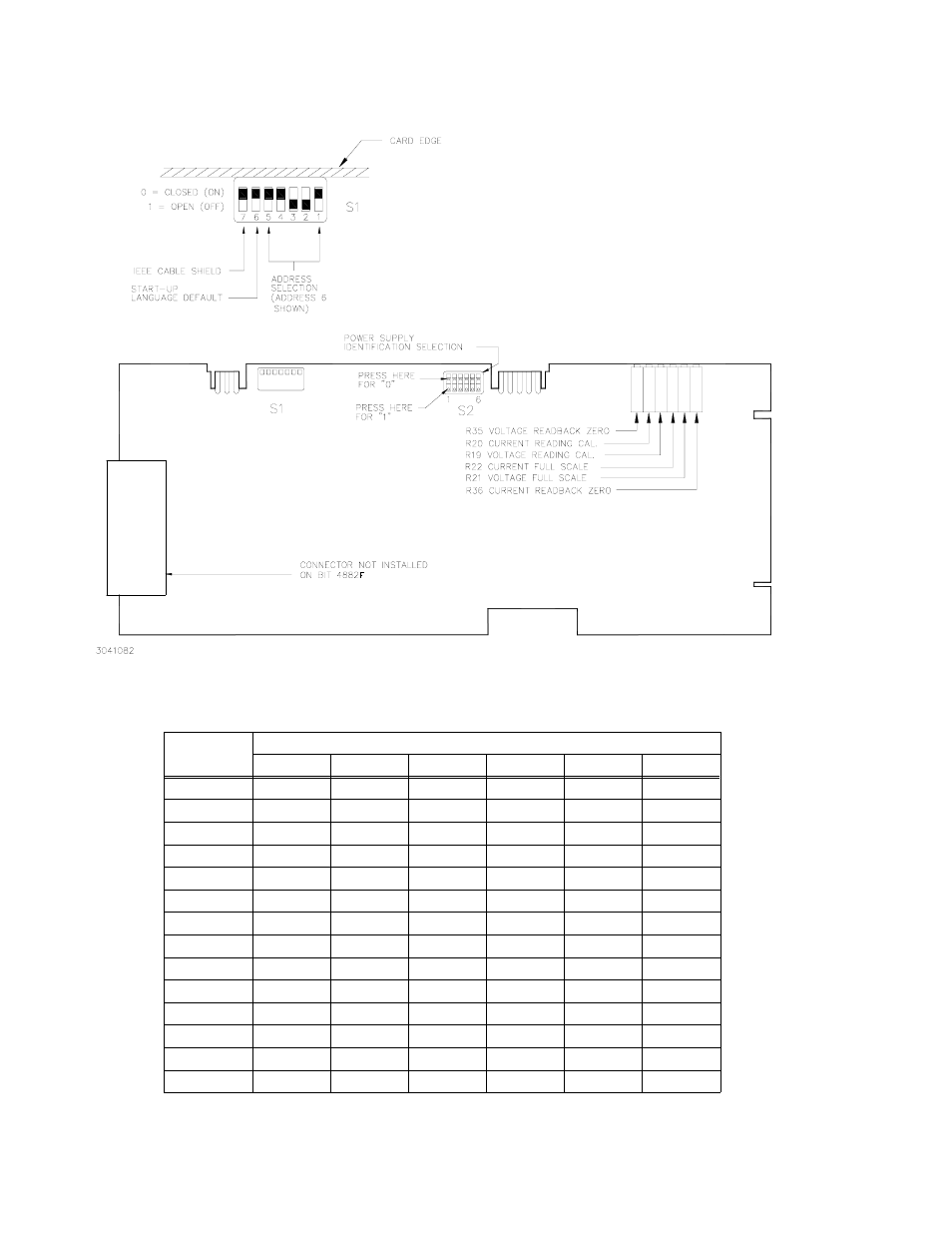

FIGURE 2-1. BIT 4882 AND BIT 4882-F SWITCH AND ADJUSTMENT LOCATIONS
TABLE 2-1. POWER SUPPLY IDENTIFICATION SWITCH S2 SETTING
MODEL
SELECTOR SWITCH S2 SECTION
SW#1 SW#2 SW#3 SW#4 SW#5 SW#6
BOP 50-2M 0 0 0 0 0 0
100-1M 1 0 0 0 0 0
20-10M 0 1 0 0 0 0
36-6M 1 1 0 0 0 0
50-4M 0 0 1 0 0 0
72-3M 1 0 1 0 0 0
100-2M 0 1 1 0 0 0
20-20M 1 1 1 0 0 0
36-12M 0 0 0 1 0 0
50-8M 1 0 0 1 0 0
72-6M 0 1 0 1 0 0
100-4M 1 1 0 1 0 0
200-1M 1 0 1 1 0 0
20-5M 0 1 1 1 0 0
