2-4 BIT 232 022800

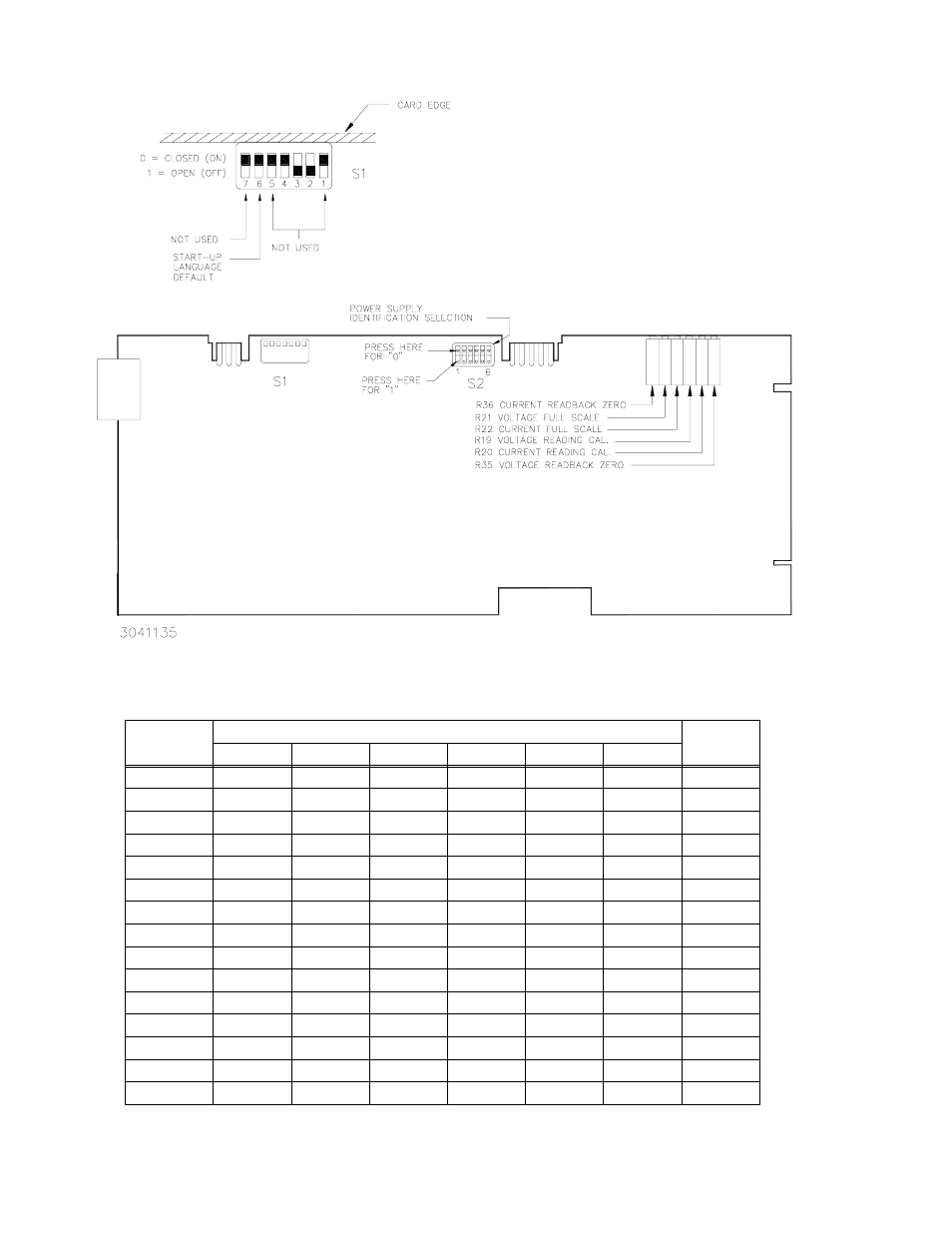

FIGURE 2-2. BIT 232/BIT 232-F SWITCH AND ADJUSTMENT LOCATIONS
TABLE 2-1. POWER SUPPLY IDENTIFICATION SWITCH S2 SETTING
MODEL
SELECTOR SWITCH S2 SECTION
HEX
VALUE
SW#1 SW#2 SW#3 SW#4 SW#5 SW#6
BOP 50-2M 0 0 0 0 0 0 00
100-1M 1 0 0 0 0 0 01
20-10M 0 1 0 0 0 0 02
36-6M 1 1 0 0 0 0 03
50-4M 0 0 1 0 0 0 04
72-3M 1 0 1 0 0 0 05
100-2M 0 1 1 0 0 0 05
20-20M 1 1 1 0 0 0 07
36-12M 0 0 0 1 0 0 08
50-8M 1 0 0 1 0 0 09
72-6M 0 1 0 1 0 0 0A
100-4M 1 1 0 1 0 0 0B
200-1M 1 0 1 1 0 0 0C
20-5M 0 1 1 1 0 0 0D
BOP 50-2M 0 0 0 0 0 0 00
