HT instruments PVCHECK User Manual
Page 63
PVCHECK
EN - 61
10.4. REFERENCE
STANDARDS
10.4.1. General
Instrument safety:
IEC/EN61010-1
Safety of measuring accessories:
IEC/EN61010-031
Measurements:
IEC/EN62446 (IVCK, LOW
, M)
Insulation:
double insulation
Pollution level:
2
Measurement category:
CAT III 300V to earth
Max 1000V between inputs P, N, E, C
10.5. GENERAL
CHARACTERISTICS
Display and memory
Type of display:
LCD custom, 128x128 pxl, with backlighting
Saved data:
max 999

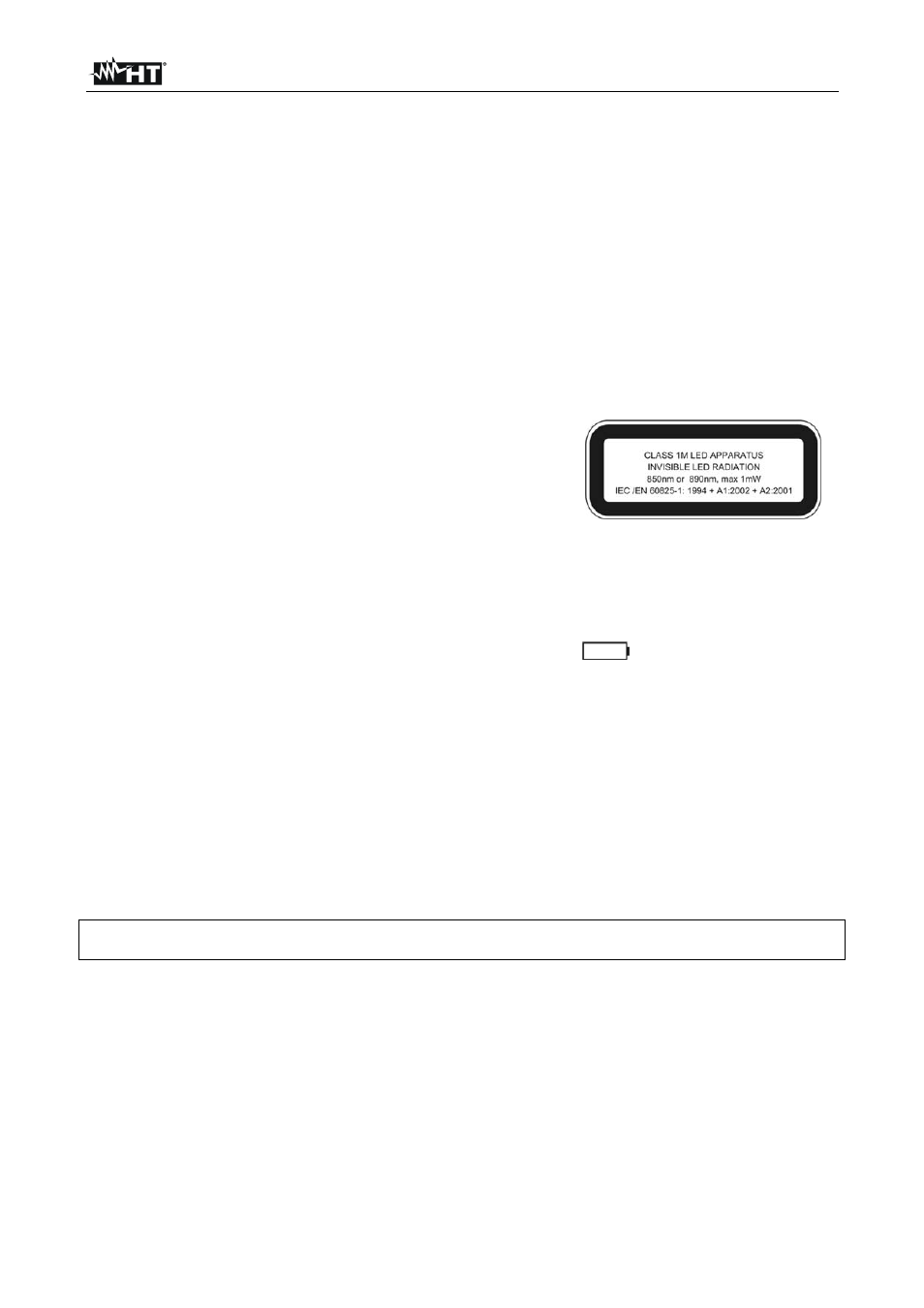

PC interface:
optical / USB
Characteristics of radio module
Frequency range:
2.400
2.4835GHz
R&TTE category:
Class 1
Max transmission power:
30
W
Max RF connection distance:
1m
PV system efficiency
Integration Period:
5,10,30,60,120,300,600,900,1800,3600s
Memory of SOLAR-02:
approx. 1.5 hours (@ PI = 5s)
approx. 8 days (@ PI = 600s)
Power supply
Battery type:
6x1.5V alkaline type AA LR06 MN1500
Low battery indication:
the display shows symbol “
”
Battery life:
approx 120 hours (PV efficiency)
Automatic power off:
after 5 minutes
Mechanical characteristics
Size (L x W x H):
235 x 165 x 75mm
Weight (batteries included):
1.2kg
10.6. ENVIRONMENTAL
CONDITIONS FOR USE
Reference temperature:
23° ± 5°C
Operating temperature:
0 ÷ 40°C
Allowable relative humidity:
<80%HR
Storage temperature:
-10 ÷ 60°C
Storage humidity:
<80%HR
Max operating altitude:
2000m
This instrument satisfies the requirements of Low Voltage Directive 2006/95/EC (LVD) and of EMC
Directive 2004/108/EC
10.7. ACCESSORIES
See the attached packing list
