PVCHECK
EN - 22

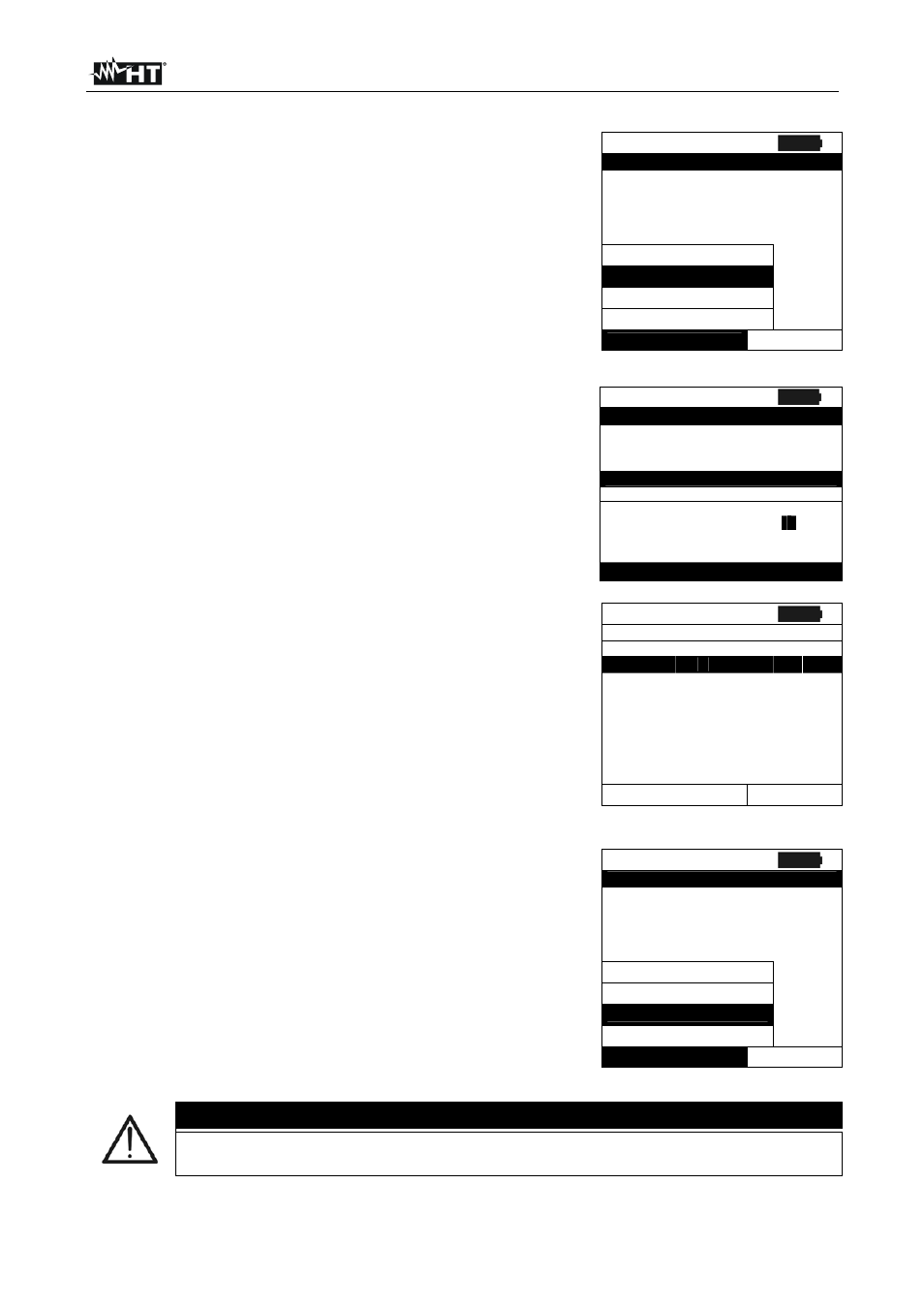

5.6.2. How to modify an existing PV module
1. Select the PV module to be modified from the internal
database by means of the arrow keys (
 , ).
2. Press the ENTER key and select the “Modify” command
using the arrow key (
).
3. Confirm selection with ENTER.
15/05/12 15:34:26
M o d e l  S U N P W R 2 1 0 

P m a x = 2 1 0 W
V o c = 4 7 . 7 0 V
V m p p = 4 0 . 0 0 V
I s c = 5 . 7 5 A
N e w
M o d i f y
D e l e t e
D e l e t e a l l
S e l e c t i o n D B
4. By using the internal virtual keyboard it is possible to
define again the name of the module or leave it
unchanged by means of the arrow keys (
,, , ).
Press ENTER to digit any character of the desired name.
5. Press the SAVE key to save the name of the new module
thus defined or to access the new parameter setting.
15/05/12 15:34:26
M o d e l :  S U N P W R 2 1 0 

P m a x = 1 8 5 W
V o c = 4 4 . 5 V
K E Y B O A R D
S U N P O W E R 2 1 0
A B C D E F G H I J K L M N O P
Q R S T U V W X Y Z - +
0 1 2 3
4 5 6 7 8 9 S P A C E D E L
SAVE / ESC
6. Change the value of the desired parameters by using the
arrow keys (
,) and set the value using the arrow keys
(
 , ). Keep the arrow keys ( , ) pressed to carry out
a quick setting of the values. If the value of any parameter
is unknown, press and hold the HELP key for a few
seconds to set the default values.
7. Press the SAVE key to save the settings made or the
ESC/MENU key to exit without saving. In this case, the
instrument shows the message “Data not saved”.
15/05/12 15:34:26
M o d e l : S U N P W R 2 1 0

P m a x =  2 1 0
 W
V o c = 4 7 . 7 0 V
V m p p = 4 0 . 0 0 V
I s c = 5 . 7 5 A
I m p p = 5 . 2 5 A
T o l l - = 5 %

D B
5.6.3. How to delete an existing PV module
1. Select the PV module from the internal database by
means of the arrow keys (
 , ).
2. Press the ENTER key and select the “Delete” command
by means of the arrow key (
) to delete the selected
module.
3. Press the ENTER key and select the “Delete all”
command by means of the arrow key (
) to delete all
modules in the database.
4. Confirm the selection with ENTER or press ESC/MENU to
exit.
15/05/12 15:34:26
M o d e l :  S U N P W R 2 1 0 

P m a x = 2 1 0 W
V o c = 4 7 . 7 0 V
V m p p = 4 0 . 0 0 V
I s c = 5 . 7 5 A
N e w
M o d i f y
D e l e t e
D e l e t e a l l
S e l e c t i o n D B
CAUTION
It is not possible to modify nor delete the “DEFAULT” PV module which is a
factory setting.
