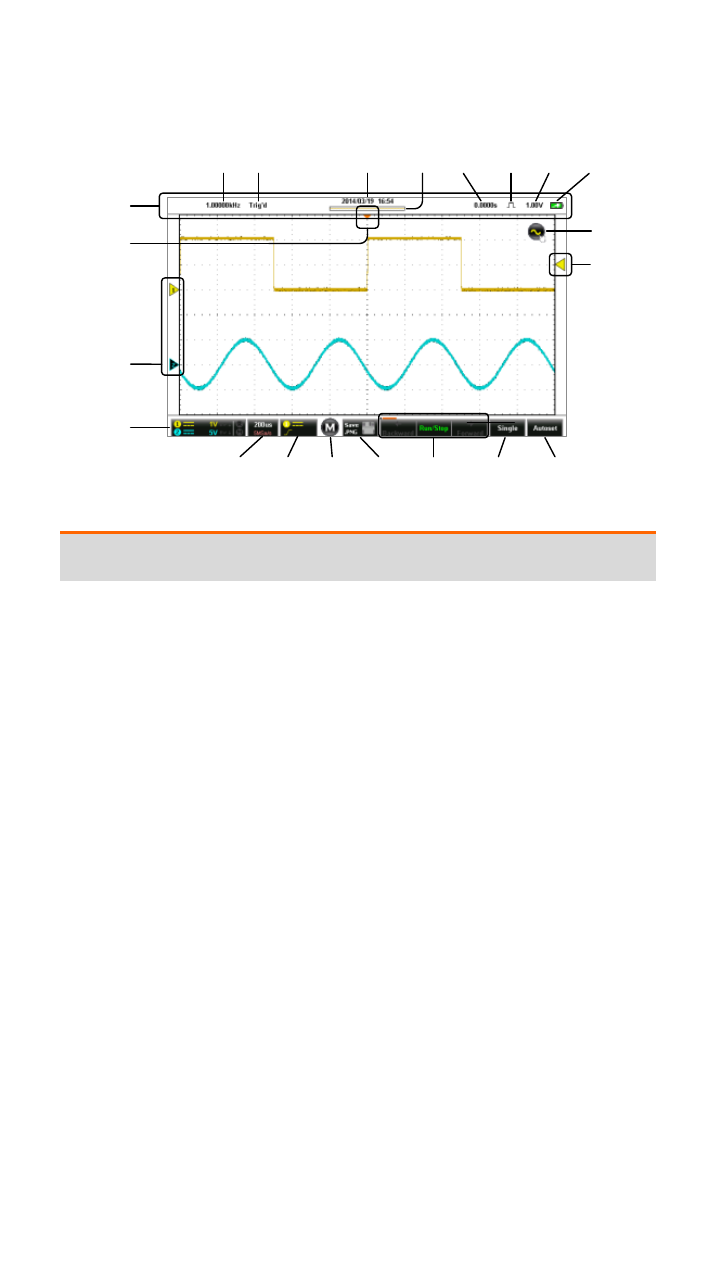

Display Overview

10

15

13

5

4

2

14

17

1

3

6

7 8

11

12

16

18 19

20 21

9

Note: Background color has been inverted for clarity.

Description

1.

Drop down menu

2.

Trigger frequency

3.

Trigger status

4.

Date and Time

5.

Memory bar

6.

Horizontal position

7.

Acquisition mode

8.

Trigger level

9.

Battery Indicator

10. Horizontal position

indicator

11. Gesture control icon 12. Trigger level

indicator

13. Channel indicators

14. Vertical scale

15. Horizontal scale

16. Trigger mode

17. Measurement/DMM

key

18. Hardcopy key

19. Run Mode keys

20. Single trigger

21. Autoset
