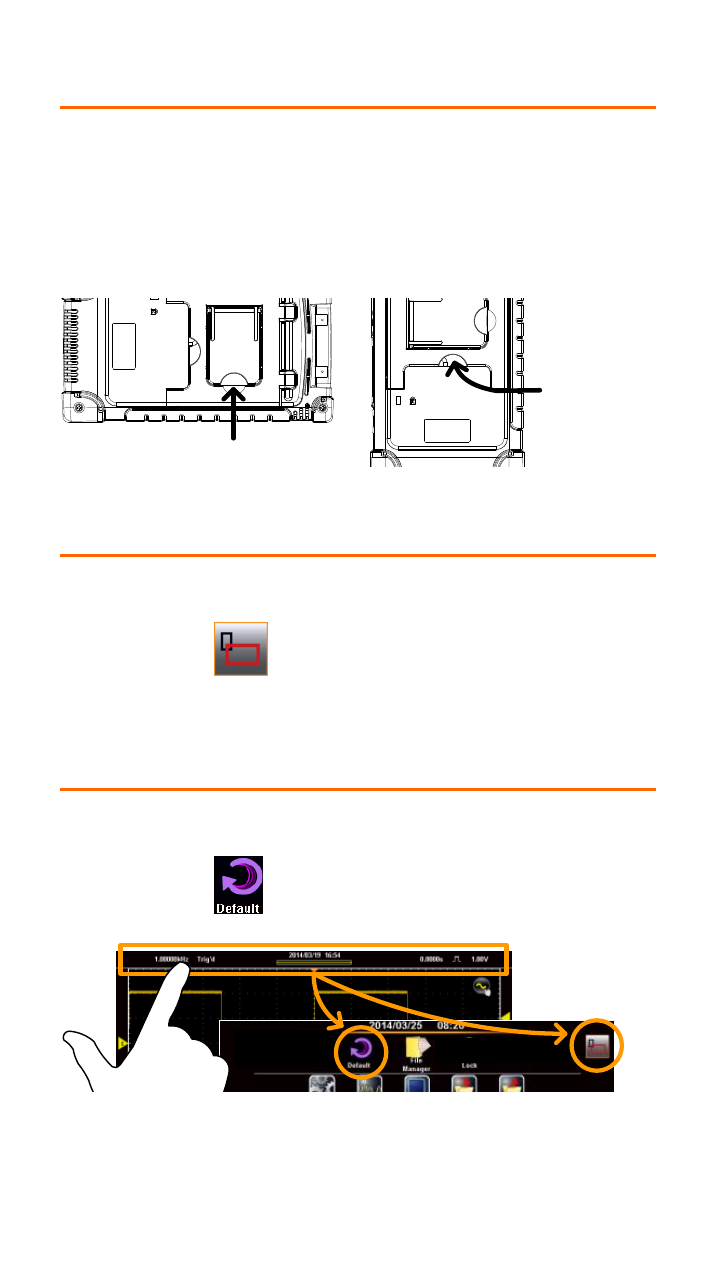

Tilting the Stand

The GDS-200/300 has two adjustable tabs on the rear
panel that can be used to position the instrument into
two preset orientations.

Horizontal

Vertical

Pull this catch

Pull

this

catch

Portrait and Landscape Mode

1.

Tap the top of the screen to access the Menu tray.

2.

Press the

icon to toggle between horizontal

and vertical view.

Default Settings

1.

Tap the top of the screen to access the Menu tray.

2.

Press the

icon to load the default settings.

Orientation

Default

settings
