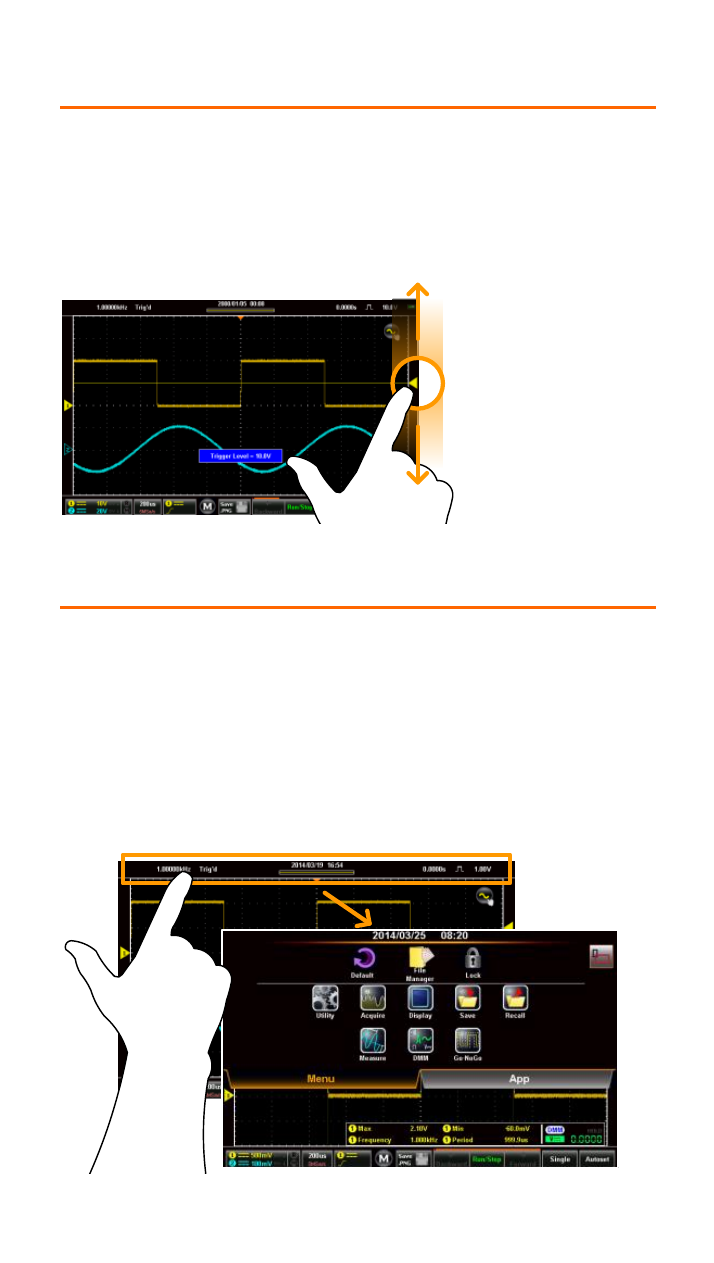

Trigger Source and Trigger Level

Tap on the trigger level indicator to toggle between
trigger sources.

Swipe the screen to the right of the grid to set the
trigger level with the currently selected source.

Trigger

Level

Toggle trigger source

Drop Down Menu

The Drop Down menu contains the Menu tray and the
App tray. The Menu tray includes the
Horizontal/Vertical orientation key, Default settings,
Utility menu, Display and Acquisition, Automatic
measurement menu, Go-NoGo, Save, Recall, Panel
Lock and File utilities.

Tap Drop Down menu area to access the Menu or App

tray
