Setting up the Oscilloscope

This section describes how to set up the oscilloscope
properly including setting the stand, power up and
basic touch gestures.

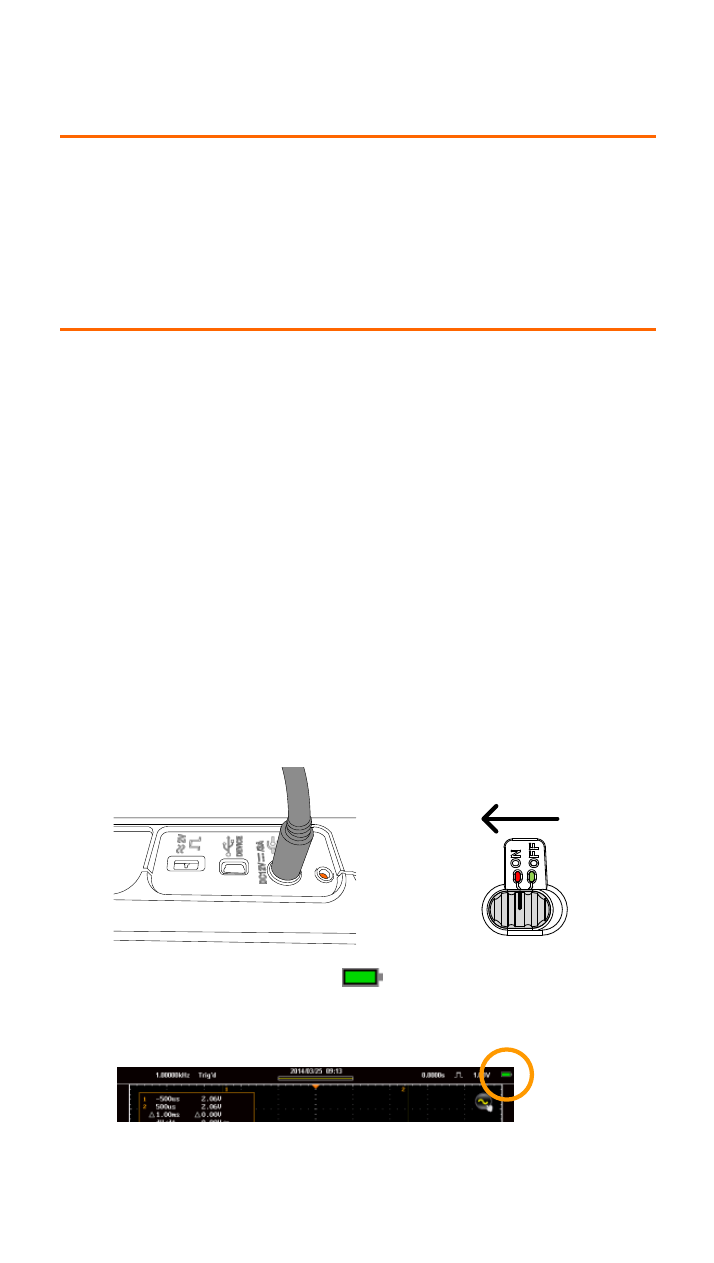

Power Up

Before the unit is powered up for the first time, it is
recommended that the unit is first fully charged.

1.

Plug the AC-DC power pack into the mains
outlet.

2.

Connect the 12V plug into the 12V socket on the
interface panel. The unit will begin charging. An
orange battery indicator light indicates charging,
while green indicates charged.

3.

Slide the power switch to the ON position,
located on the interface panel.

4.

The unit will turn on in a short while.

Battery

indicator

5.

The battery indicator

is shown on the top

right-hand corner of the main display.
