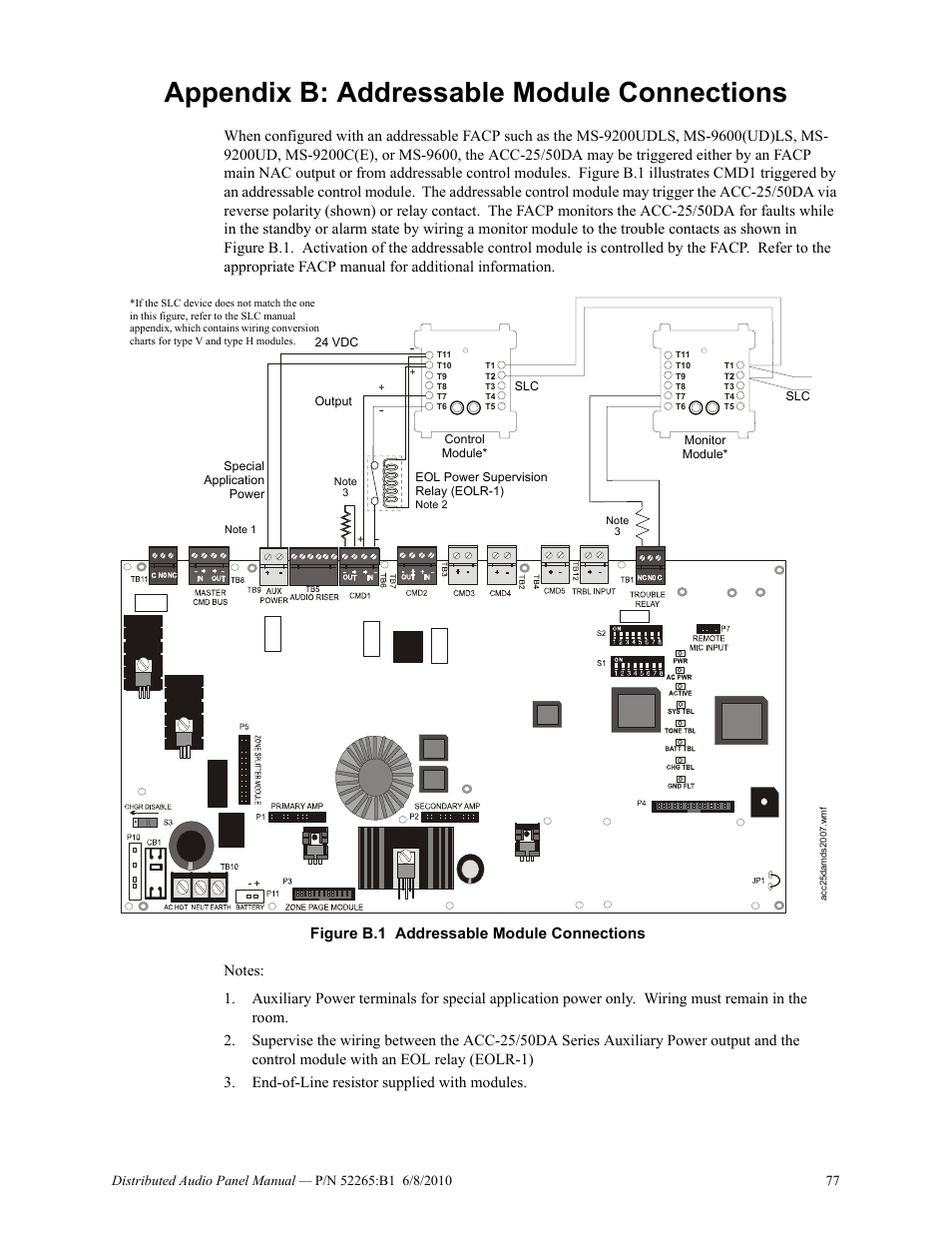

Appendix b: addressable module connections, Figure b.1 addressable module connections – Fire-Lite ACC-25/50DAZS Distributed Audio Panel User Manual
Page 77
