Edwards Signaling Genesis WG4 Speaker - Manual (Page 3)

P/N 3101852 • REV 2.0 • ISS 21MAR11 3 / 4

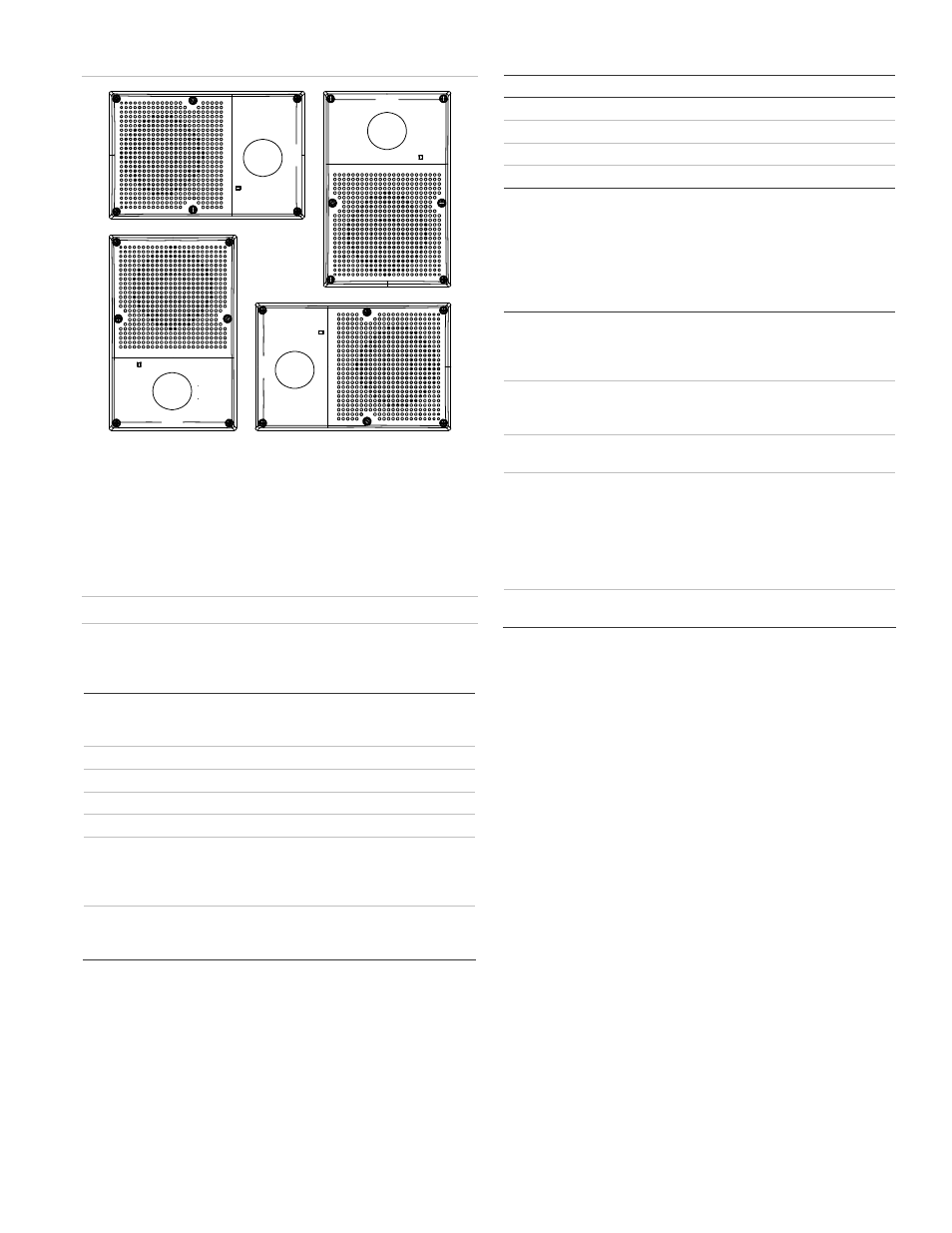

Figure 4: Mounting positions
A Z
DO NOT PAINT
A
Z
DO NOT
P A IN T
AZ
DO NOT
P A IN
T
A Z
DO NOT P AIN T
Maintenance
This unit is not serviceable or repairable. Should the unit fail to
operate, contact the supplier for replacement.
Perform a visual inspection and an operational test twice a
year or as directed by the local authority having jurisdiction.
Caution: Do not change the factory-applied finish.
Specifications
Operating voltage
Speaker
Default
25 VRMS or 70 VRMS, switch selectable
70 VRMS
Supervisory voltage 30 V max.
Sound level output See Table 3
Speaker response 400 to 4,000 Hz
Wire size 12 to 18 AWG (0.75 to 2.50 mm²)
Compatible electrical
box
Wet
Dry
Model 449
4 in. square by 1-1/2 in. deep box
Operating environment
Temperature
Relative
humidity
Wet
−40 to 151°F (−40 to 66°C)
0 to 95% noncondensing
Table 3: Sound level output (dBA)
Wattage Setting 25 V 70 V
2 W T 90 89.7
1 W X 87.1 86.9
1/2 W Y 84.0 83.9
1/4 W Z 80.8 80.8
dBA = Decibels, A-weighted.
UL 1480: Sound level output at 10 ft. (3.05 m) measured in a
reverberant room using 400 to 4,000 Hz band-limited pink noise.
Regulatory information
Manufacturer
Edwards, A Division of UTC Fire & Security
Americas Corporation, Inc.
8985 Town Center Parkway, Bradenton, FL
34202, USA
Year of manufacture The first two digits of the DATE MFG
number (located on the product identification
label) are the year of manufacture.
North American
standards Meets: UL 1480
Follow: NFPA 72
FCC compliance This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference
received, including interference that may
cause undesired operation.
Industry Canada
compliance This Class A digital apparatus complies with
Canadian ICES-003
Contact information
For contact information, see www.utcfireandsecurity.com.
