E-2WIRE Analog Class A/B Two-Wire Module
Installation Sheet
Operation
The E-2WIRE module is designed to interface between
conventional two-wire smoke detectors and a control panel. It
monitors the circuit and smoke detectors and signals the
control panel of any trouble or alarm conditions. The module
also regulates and supervises the 24 VDC input power.
The module is configured from the factory to operate as a two-
wire alarm device that does not require alarm verification. It
can be configured for two-wire alarm verified operation through
front panel programming or the configuration utility. When
using the alarm verification feature of the control panel, do not
mix normally open contact initiating devices with two-wire
conventional smoke detectors.
The module recognizes the CleanMe signal from detectors that
support this feature.
The module device address is set using the two rotary
switches located on the front of the module. One device
address is required.
The device can be set for Class B or Class A operation using
the slide switch located on the front of the module.
Caution: This module cannot be used on a device loop with
isolator modules or isolator bases.
Slide switch operation
The following slide switch settings determine the operation of
the module. Setting the initial slide switch position is generally
performed during module installation. This setting can be
changed while the system is operating, but the change must be
confirmed through front panel programming.
Table 1: Slide switch operation
Setting Operation Device type description
1 Class B Class B 2-wire smoke non-verified:
Configures the module to monitor two-wire
conventional smoke detectors (that do not
require alarm verification) and normally
open contact initiating devices on a Class B
circuit.
2 Not used
3 Class A Class A 2-wire smoke non-verified:
Configures the module to monitor two-wire
conventional smoke detectors (that do not
require alarm verification) and normally
open contact initiating devices on a Class A
circuit.
Note: Additional device types are available through front panel
programming or the configuration utility. Refer to applicable
control panel technical reference manual.

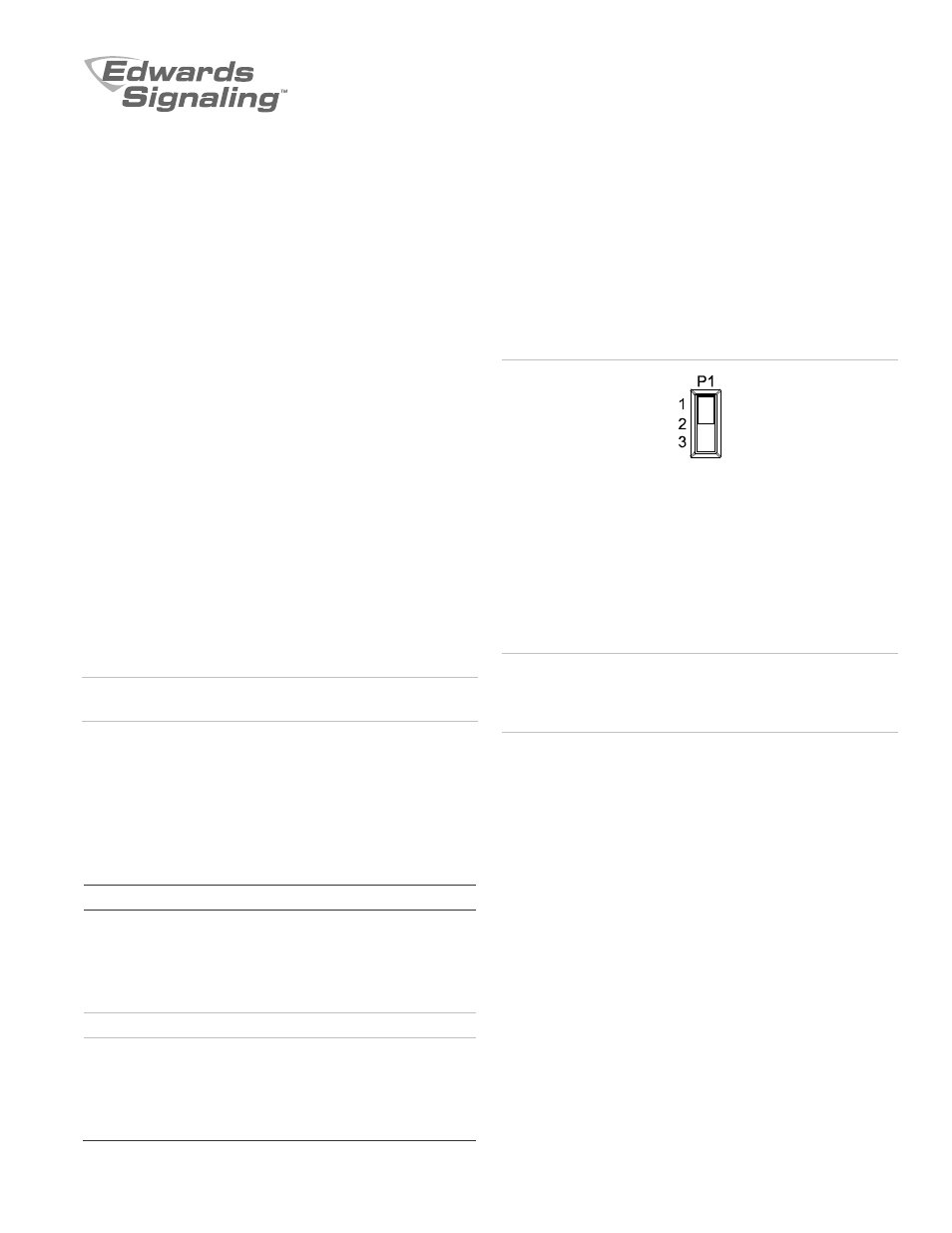

Figure 1: Slide switch
LED operation
The module provides a bicolor LED that shows its status.
Normal: Green LED flashes
Alarm/active: Red LED flashes
Installation
WARNING: This module will not operate without electrical
power. As fires frequently cause power interruption, you should
discuss further safeguards with your local fire protection
specialist.
Note: The module is shipped from the factory as an assembled
unit; it contains no user-serviceable parts and should not be
disassembled.
To install the module:
1. Verify that all field wiring is free of opens, shorts, and
ground faults.
2. Make all wiring connections as shown in “Wiring.”
3. Set the module address as follows:
Use a screwdriver to adjust the two rotary switches on the
front of the module. Set the TENS rotary switch (0 through
12) for the 10s and 100s digit and the ONES rotary switch
for the 0 through 9 digit. For example: device address 21,
set TENS rotary switch to 2 and set the ONES rotary
switch to 1.
Refer to “Specifications” for available address numbers.
4. Set slide switch P1 to appropriate setting. Refer to
“Operation.”
