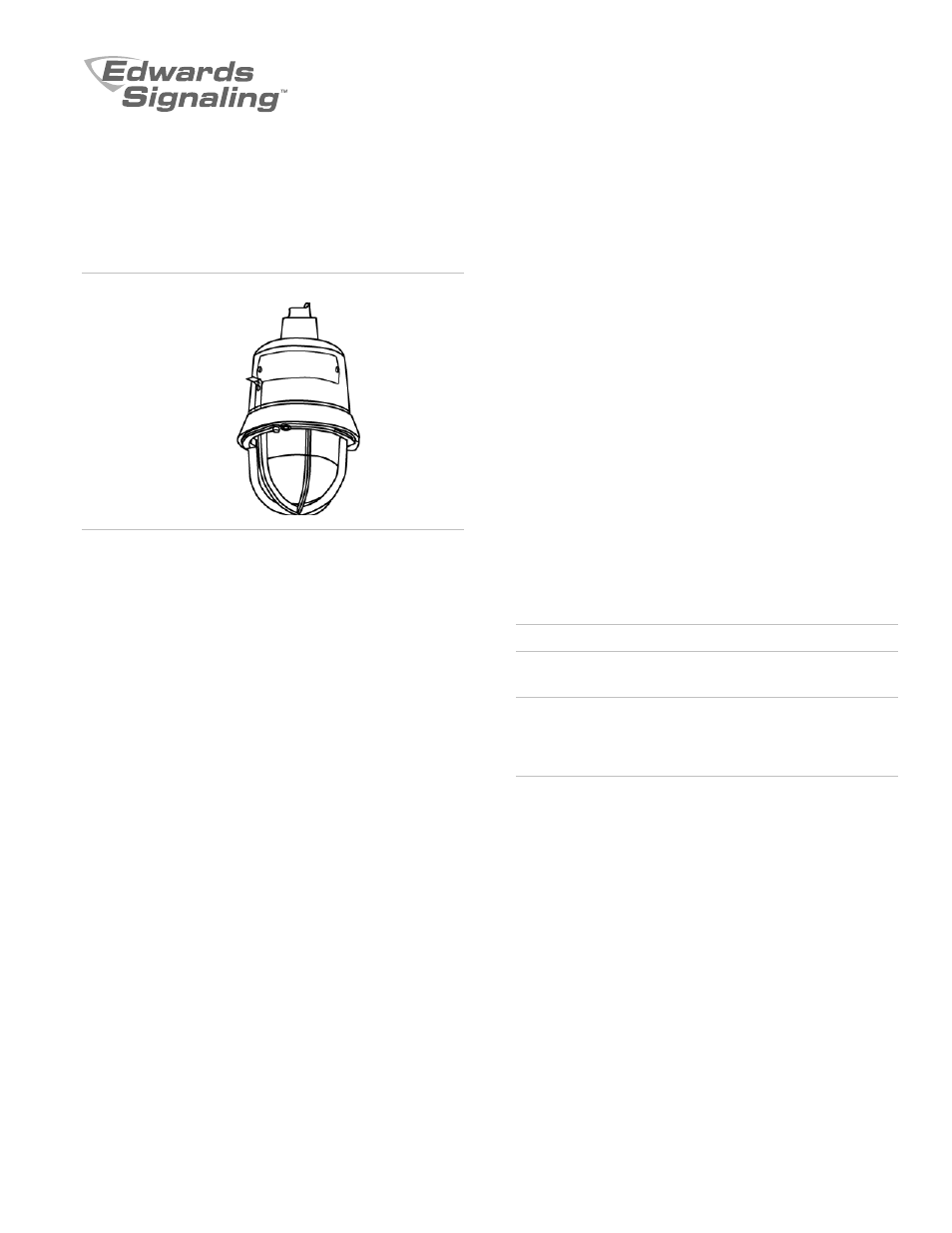

116 Class Fire Alarm Strobe Lights for Use in
Hazardous Locations Installation Sheet
Description
The 116 Class Fire Alarm Strobe Lights, available in either a
gray housing (116DEGEX-FJ) or a red housing (116DEGEX-
FJ-R) are in-rush current limited strobe lights. When
pendant, wall or ceiling mounted, and with dome guard
removed, they meet or exceed the requirements of UL 1971
Signaling Appliance for the Hearing Impaired.
The strobe is intended for indoor use in UL 1971 (signal
appliance for the hearing impaired) listed compatible fire
alarm systems. The strobe flashes a 360-degree beam of
light approximately 65 times per minute with a UL 1971
125 cd ceiling and 60 cd wall light output per Figure 7 and
Figure 8. With the guard installed, the strobe flashes a
beam with an output of 86 cd ceiling and 51 cd wall. The
strobe is also UL 1638 (visual signal appliance, private
mode) listed with dome guard installed for both indoor and
outdoor use, and other applications requiring electrical
supervision of the signaling circuit field wiring. In addition,
the strobe is rated for outdoor use in Canada. The 116
Class strobes are cUL listed to Canandian Standard ULC-
S526-07 (Visual Signal Device for Fire Alarm Systems),
suitable for indoor and outdoor applications. The strobe
features an enhanced synchronization circuit to comply with
the latest requirements of UL 1971 and CAN/ULC-S526-07.
Synchronized operation requires a separately installed
synchronization control module. See Table 1 on page 5 for
a list of compatible synchronization modules.
When assembled with an available mounting subassembly
(116EX(R)-P, 116EX(R)-C, or 116EX(R)-C with 116EX(R)-B)
and in accordance with these instructions, the 116 Class
visual strobe signal is UL Listed as a Signaling Appliance for
the hearing impaired for use in Class I, Division 1, Groups C
and D, Class I, Division 2, Groups A, B, C, and D, Class II,
Division 1, Groups E, F, and G, Class II, Division 2, Groups
F and G, and Class III, Division 1 and 2 hazardous locations
with Operating Temperature Codes per Table 3 on page 5.
Refer to “Specifications” on page 5 for more information.
This strobe is UL and cUL Listed as a Type 3R and 4X
enclosure.
Installation
Install this unit in accordance with the applicable
requirements in the latest edition of the National Fire Alarm
Code (NFPA 72), National Electrical Code (NFPA 70), and
Canadian Electrical Code and CAN/ULC-S524-01/Standard
for the Installation of Fire Alarm Systems. Wiring shall be in
accordance with the applicable requirements in the National
Electrical Code (NFPA 70) and CSA C22.1, Canadian
Electrical Code, Part I, Safety Standard for Electrical
Installations, Section 32.
Caution: Do not change factory applied finishes.
1. Mount using one of the following applicable methods.
WARNING: To reduce the risks of ignition of hazardous
atmospheres and shock, do not apply power to the unit until
installation has been completed and unit is tightly assembled
and secured.
a. Pendant Mount Models (Figure 1 on page 2):
Install the pendant mount module, Cat. No.
116EX(R)-P, to the 116 main housing. Tighten
setscrew. Install an explosion-proof hanger box
(not supplied). Secure 3/4" NPT threaded conduit
(not supplied) to the box. Install the unit on the
conduit. Ensure the conduit engages at least five
full threads and then tighten the setscrew to secure
the pendant mount module to the conduit. Connect
the field earth ground wire to the ground screw or
earth ground via conduit system. Wire in
accordance with Figure 5 on page 3. See Table 3
on page 5 for required supply wire temperature
ratings.
b. Ceiling Mount Models (Figure 2 on page 2):
Mount the ceiling mount module, Cat. No. 116EX-
C, using hardware (not supplied) that is suitable for
the mounting surface. Connect field earth ground
wire to the ground screw or earth ground via
conduit system. Wire the unit in accordance with
