1600A-N4X
1600A-N4X Instruction Manual Rev. 0.2 Page 2 of 38
2.0 System Configuration
2.1 Hardware Configurations
The Model 1600A-N4X is a “user configurable” alarm controller platform. The basic 1600A-N4X Controller
includes the NEMA 4 panel enclosure with Controller Module (including display), Power Supply, two AC and
one DC breakers, and a DC over-voltage protection module.
NOTE: I/O modules are normally factory installed unless specifically instructed otherwise. A maximum
of 12 I/O modules will fit inside the standard N4X enclosure. I/O Modules are purchased separately.
The available Detcon I/O modules include:
Model DA-4 – Four channel analog 4-20mA input module
Model RL-4 – Four channel relay output module
Model AO-4 – Four channel analog 4-20mA output module
Detcon I/O modules are individually addressable and operate on 11.5-30 VDC. Each module communicates
with the controller via the RS-485 Modbus™ RTU protocol. A maximum of 12 I/O modules can be mounted
in the N4X enclosure. Other modules need to be mounted in separate enclosures.

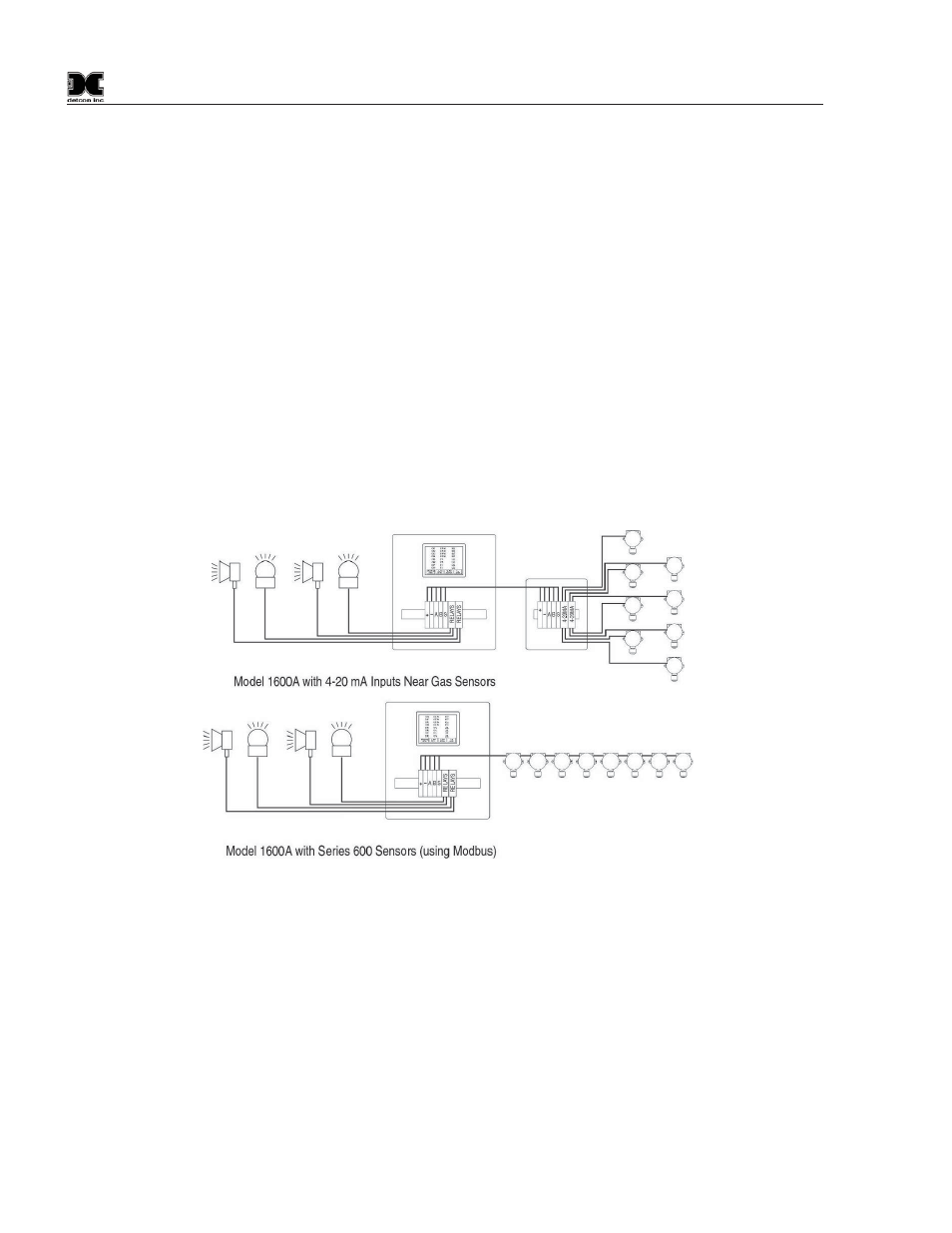

Figure 2 System Configurations
2.2 Programming Configuration
The 1600A controllers are normally configured at Detcon based on application specific information provided
by the customer on the Configuration Form. It must be verified that the correct quantity and type of I/O
modules have been purchased to support the customer’s configuration requirements. On the Configuration
Form, the customer should supply all site-specific information pertaining to:
1) Number of gas channels
2) Range, units, and gas type for each channel
3) Alarm level(s) for each gas channel
4) Tag Name for each channel
5) Assignment and set-up information for each relay contact
