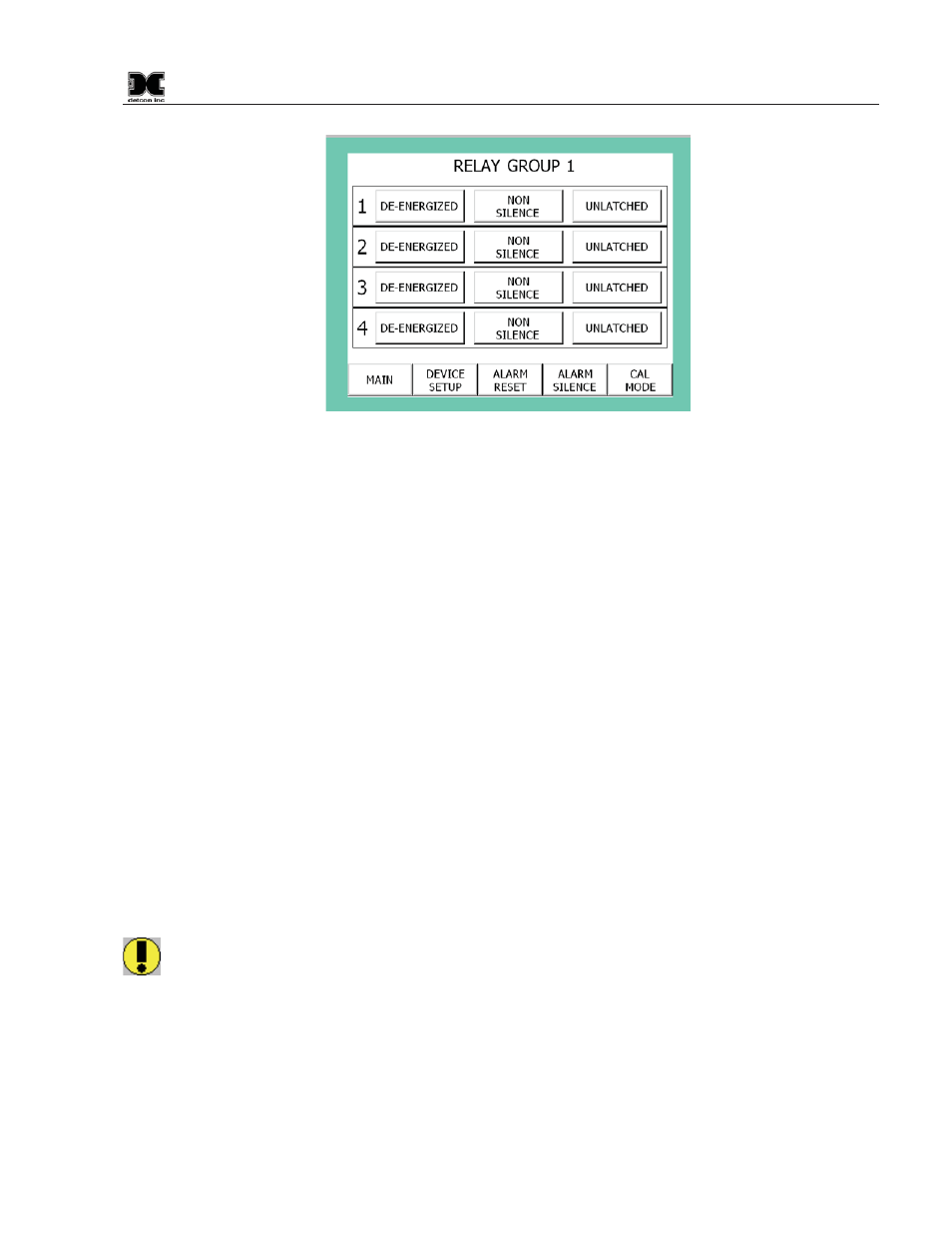

Figure 24 Setting up Relay Outputs
NOTE: This selection controls the output state for that relay regardless of how many alarm/fault
conditions for which the relay output may be used. A single relay output can only be set up in one
configuration.
The set-up for the first Model RL4 module would look like this:
Relay
# RL4 Address
01 thru 04 41 Hex
The second Model RL4 module set to 69 (45Hex) and handling relays 5 – 8, would appear as follows:
Relay #
RL4 Address
05 thru 08 45 Hex
4.1.4 Serial Inputs
Activating Serial Inputs
The 1600A can handle 16 serial inputs from either a model 600 or model 700 series sensor. To activate the
serial inputs enter Program Mode. Touch the Serial Sensors button to read “Serial Sensors 700 Series” or
toggle to “Serial Sensors 600 Series”. This is a global command and as such all sensors must be either 600 or
700 series. See Figure 25, touch the Serial button, and select each channel that is to be enabled or disabled,
Figure 26.
WARNING: If the wrong 600/700 selection is made while sensors are connected, The Modbus may
need to be reset to re-initialize Modbus communications. Refer to the “Modbus Reset” function in the
SCREEN UTILITIES menu to re-start Modbus™ polling (Section 5.3).
