Changing Position of the Media Supply Spindle
The printer can store under the Top Access Cover an 8-inch outer diameter media roll that is
wound on either 1.5-inch or 3-inch inner cores. When the Top Access Cover is closed
touching on either the Top Cover or the bottom of the printer could cause unnecessary drag
on the form. The printer's Media Supply Spindle can be moved to accommodate these
issues.
To change the position of the Media Supply Spindle:
1. Turn off the printer.
2. Remove the media from the Media Supply Spindle.
3. Using a Phillips Screwdriver remove the 4 screws holding the Media Supply Spindle to the
center of the printer.
4. Slide the Media Supply Spindle to the appropriate position.
1.5 inch inner core: Media Spindle needs to be in the Lower position.
3-inch inner core: Media Spindle needs to be in the Upper Position.
5. Using a Phillips Screwdriver, install the 4 removed screws.
6. Reload the Media into the printer.

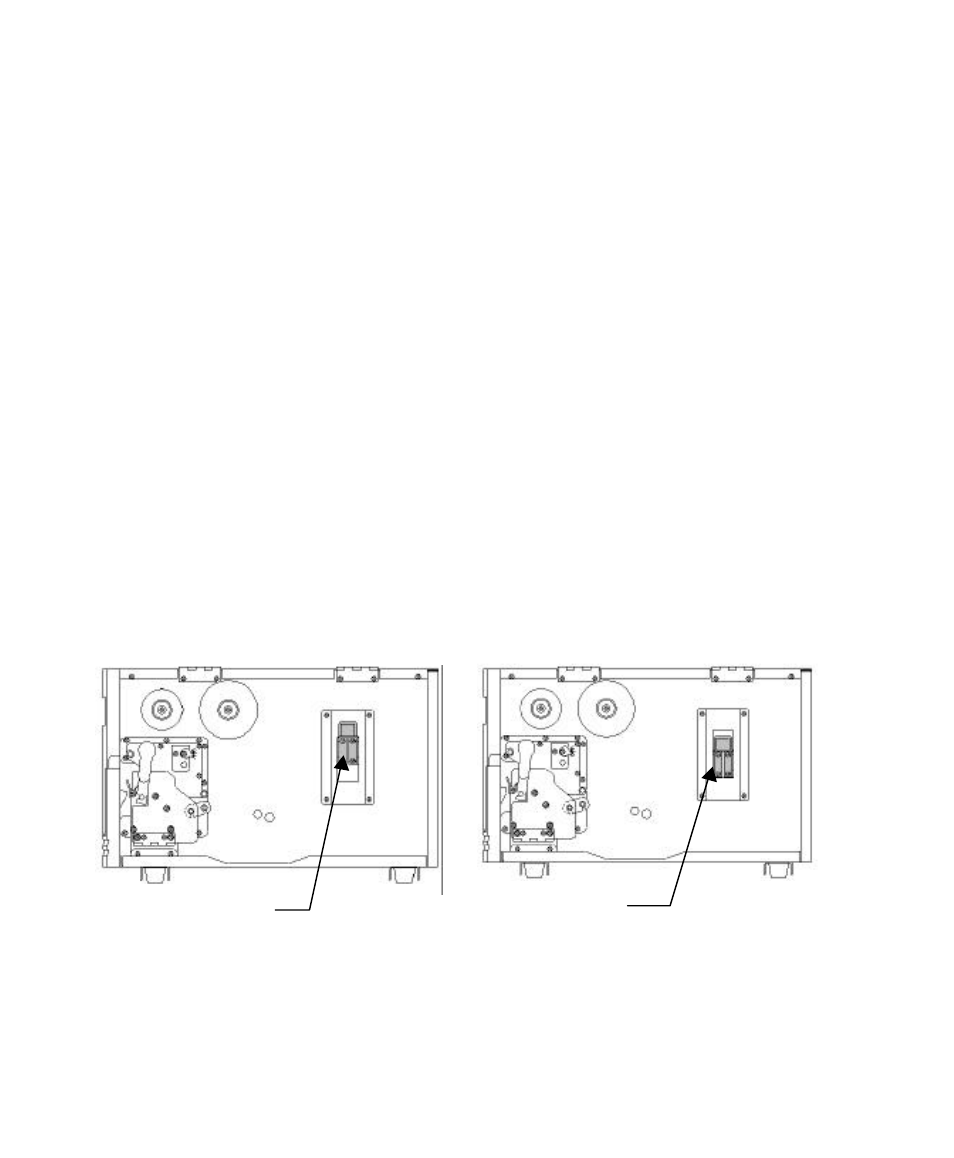

Figure 22 - Media Supply Spindle Location
Upper Position
(default position)
Lower Position
