Pearl Control Software Manual
Using Calibrate Tab Features 40

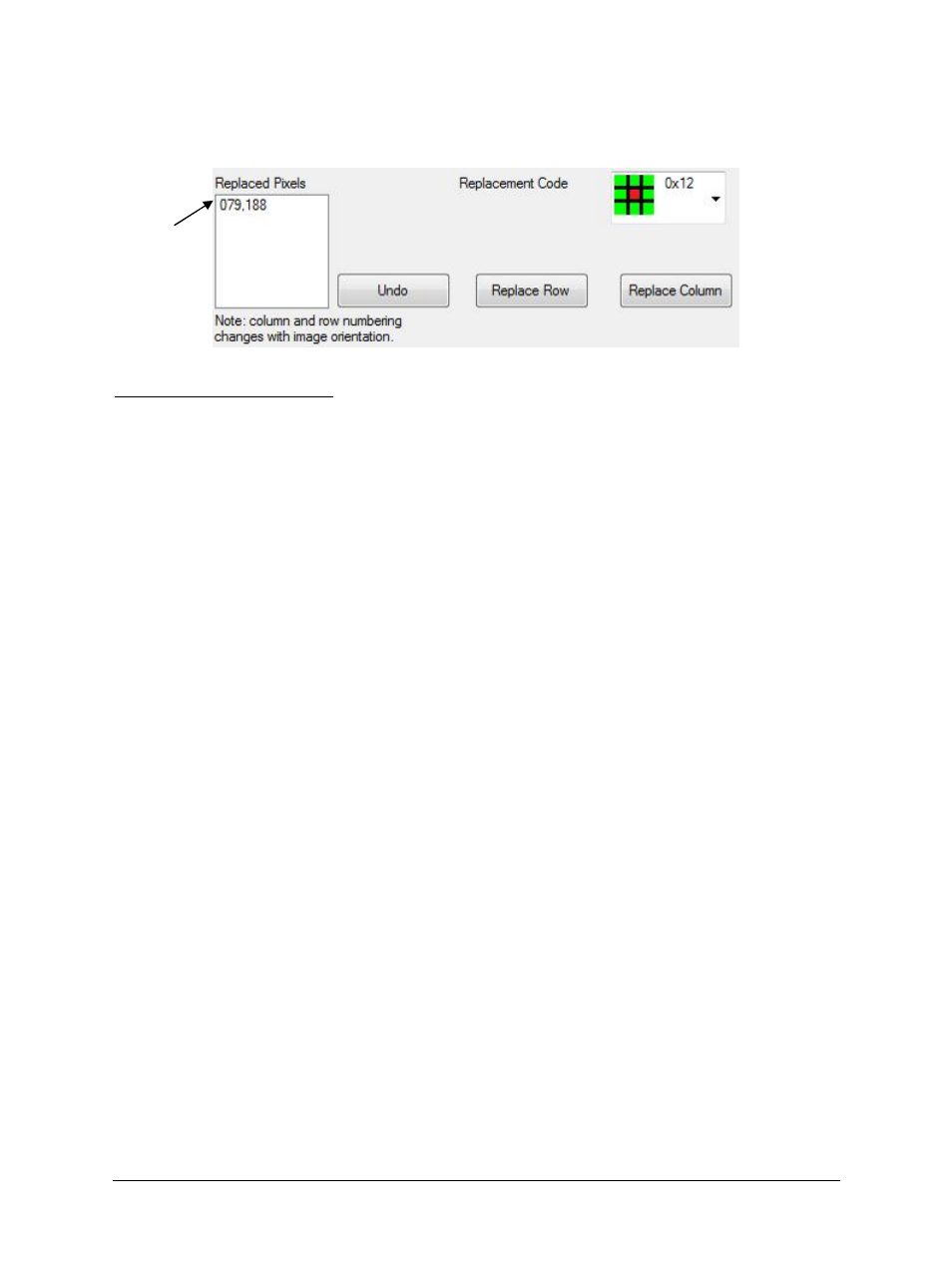

Undo Replacement
When a pixel is replaced, it is added to this list:
If the wrong pixel was replaced, the replacement can be undone.
To undo a pixel replacement:
1. Select the Replaced Pixel from the list.
2. Click Undo.
3. The pixel replacement will undo and the Replaced Pixel will be removed from the list.
4.4.4 Import List
Previously replaced pixels are saved to a file once the calibration is complete. These files can be
used to import the list later, if the gain map is redone.
4.4.5 Finish
The Finish button allows you to:
Save the replaced pixels to the camera
Reset the camera zoom
Save a bad pixel list to be for importing later
