Pearl Control Software Manual Using Calibrate Tab Features 34
Camera Crosshair
Changes the crosshair displayed on the live image.
Shortcut keys can be used to toggle these quicker: the “J” key toggles between black and white,
the “K” key toggles between cursor types.
4.4.2 Using Tools for Pixel Replacement
Zoom
The zoom buttons are located below the image display. There are three different methods to
zoom.

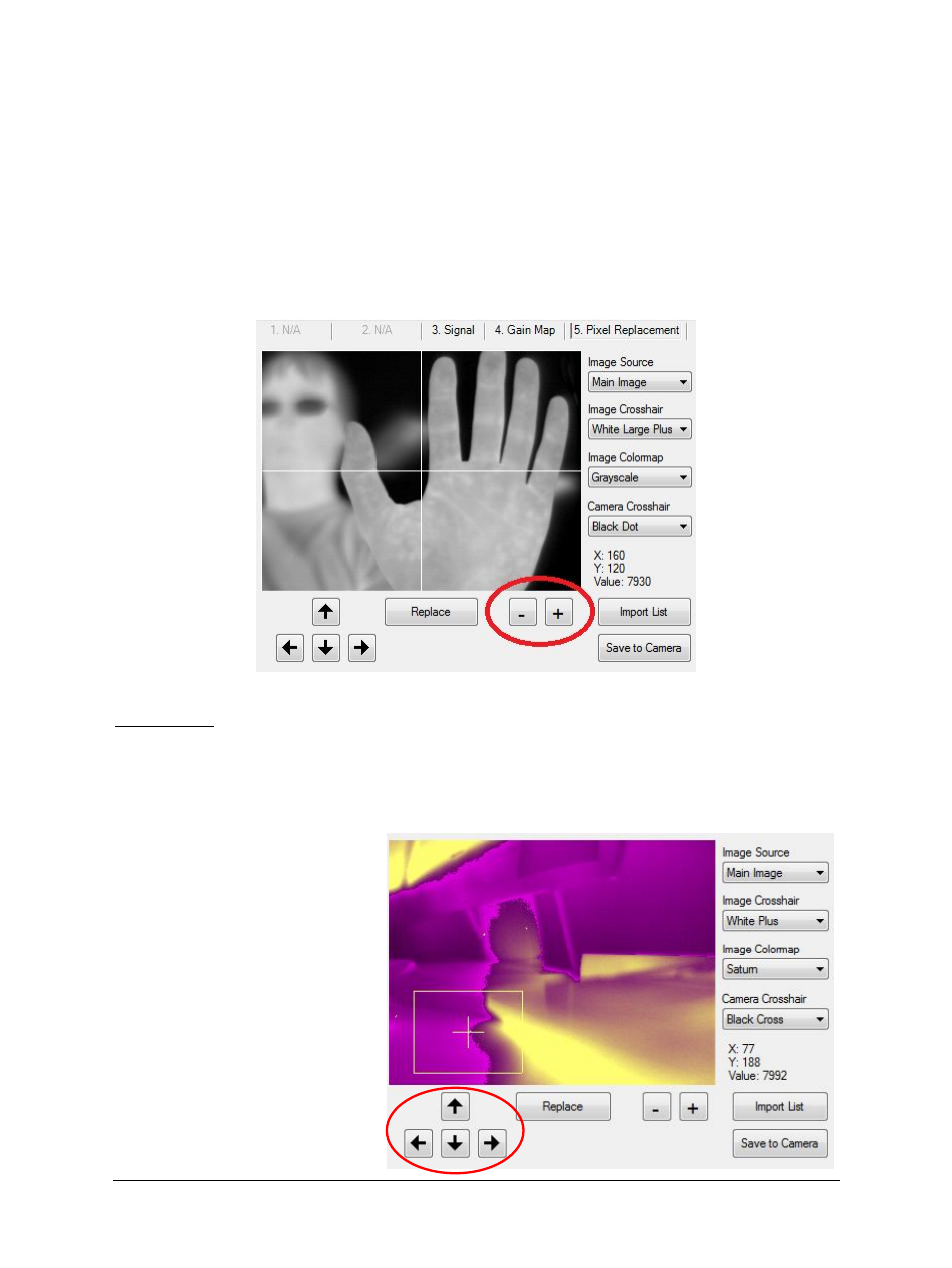

Location of the zoom buttons
To use zoom:
Click the “-” sign to zoom out and click the “+” sign to zoom in.
Scroll up on the mouse scroll wheel to zoom in and scroll down to zoom out.
Press the CTRL button and the “-” sign to zoom out and press the CTRL button and the
“+” sign to zoom in.
Arrow Buttons/Navigation
The cursor on the display can be
moved by using:
The arrow buttons in the
software
The keyboard arrow keys
The mouse (clicking in the
image)
