Pearl Control Software Manual Using Calibrate Tab Features 32

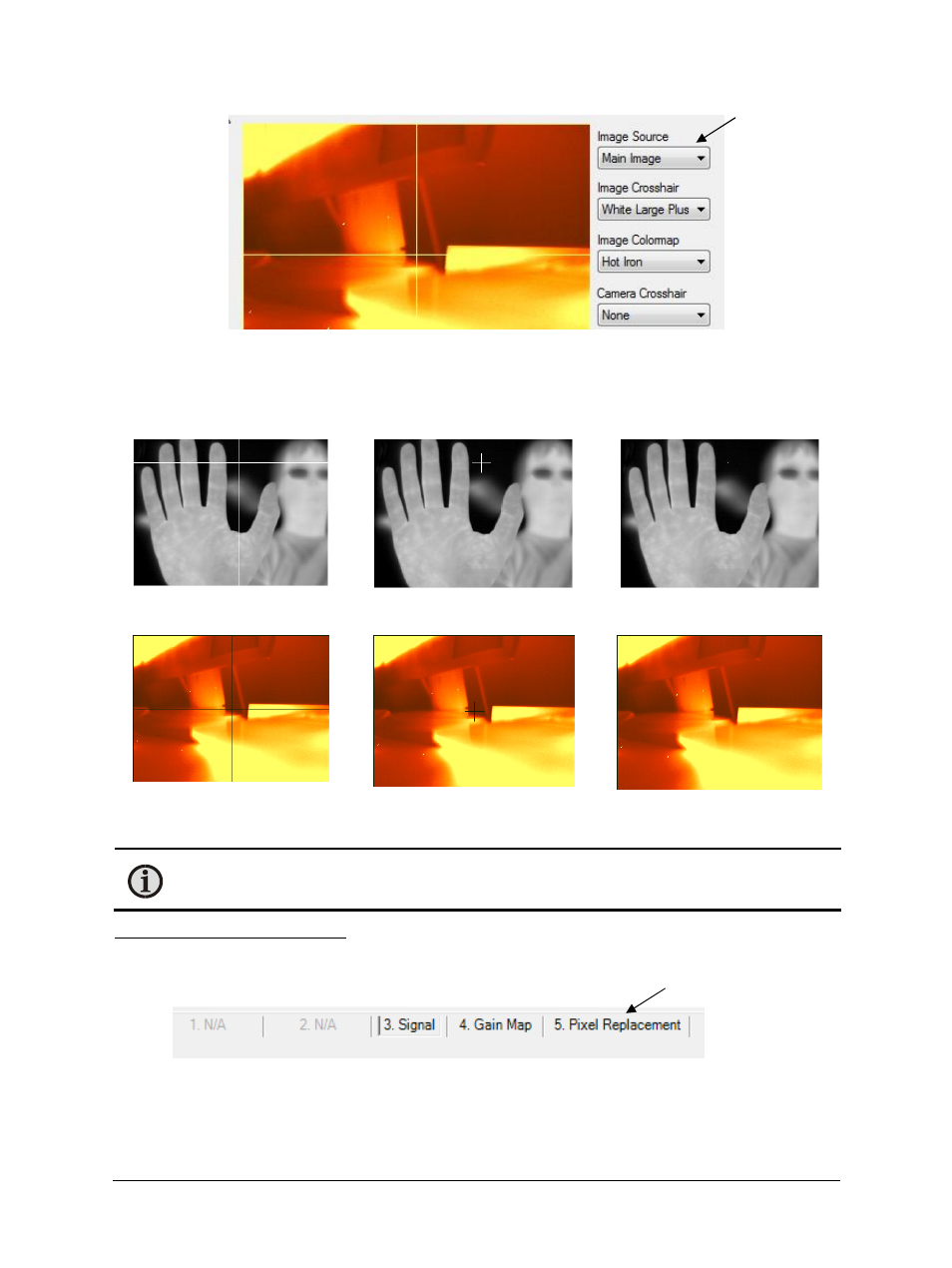

4. The main image from the Capture Tab will load in the Image Display Box.
Image Crosshair
The Image Crosshair selection allows you to customize the crosshair displayed. The Pearl Control
Software offers six choices:
White Large Plus White Plus White Dot
Black Large Plus
Black Plus
Black Dot
Note: Shortcut keys can be used to toggle these quicker: the “J” key toggles between
black and white, the “K” key toggles between cursor types.
To change the image crosshair:
1. Click on the Calibrate Tab.
2. Click on Pixel Replacement.
3. Click the dropdown box under Image Cross and select the desired crosshair.
