IS 50-LO plus / IGA 50-LO plus Manual Introduction 12

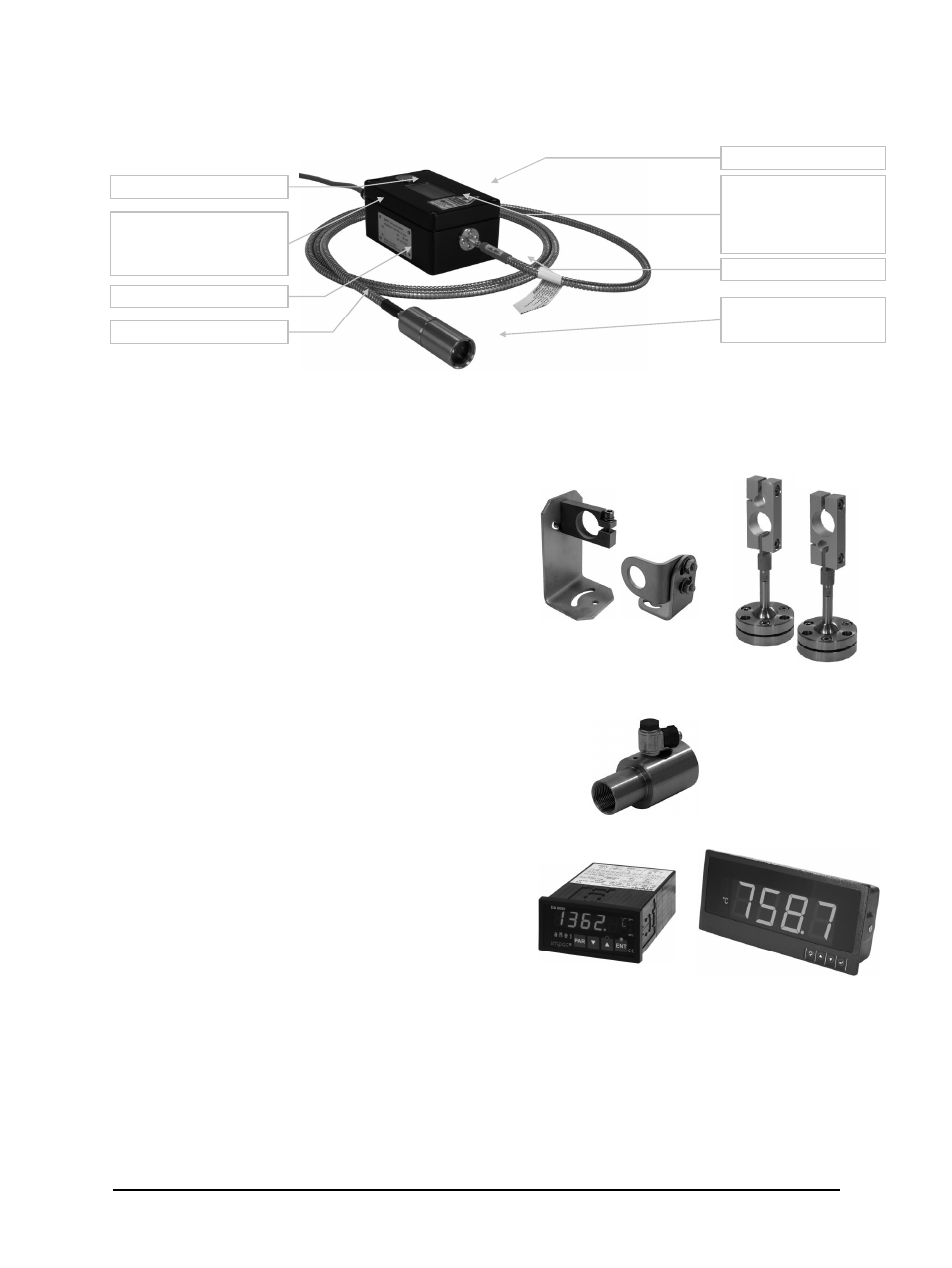

2.5 Physical user interface
2.6 Accessories (option)
Numerous accessories guarantee easy installation of the pyrometers. The following overview
shows a selection of suitable accessories. You can find the entire accessory list with all reference
numbers in Section 10.2 Reference numbers accessories).
2.6.1 Mounting
For mounting and aligning the optical head to the
measured object mounting angles or a ball and socket
mounting is available. The ball and socket mounting
is an easy way to align the pyrometer to the
measured object. The clamping-screws of the ball and
socket mounting enable an easy and fast adjustment
of the pyrometer in all directions.
Mounting angles
Ball and socket mounting
2.6.2 Air purge
The air purge protects the lens from contamination
with dust and moisture. It has to be supplied with dry
and oil-free pressurized air (1.5 m³ / h) and generates
an air stream shaped like a cone.
Air purge
2.6.3 Displays
In addition to the built-in temperature indicator of
the pyrometer, LumaSense offers several digital
displays which can also be used for remote
parametrizing of the pyrometer.
Digital display DA 6000 LED large display
Optical head (with
black fibre mark)
Power supply,
analog output,
digital interface
Optical fibre
LC display for
measuring
temperature or
parameters
Targeting light button
Type label
Red fiber mark
Converter
