Part No. 4801-2998 Rev 6-04 FEED MANAGEMENT SYSTEM Page 14 of 15
NOTE: In this manual, Reference
numbers refer to descriptions given in
text. These numbers do not appear on
display.
Mon 14 Jun 2004 5:00 p
Vent Mode: Minimum Growout Day: 40
Room Temp: 71.4° Water Consumption
Target: 70.0° 1. 240 (10/hr)
Outside: 77.0° 2. 280 (10/hr)
Pressure: 0.00 wc (A) Feed Levels
Target: 0.04 wc 1. 11.2ft ( 60%)
Humidity: 0% 2. 5.0ft ( 23%)
Airspeed: 8fpm Cooler Temp: 77.0°
√ * Sensor 1: 71.6° √ * Sensor 2: 71.2°
√ * Sensor 3: 71.4° Sensor 4:---.-°
Sensor 5:---.-° Sensor 6:---.-°
Sensor 7:---.-° Sensor 8:---.-°
√ Sensor is enabled
* Sensor used in Room Temp Calculation

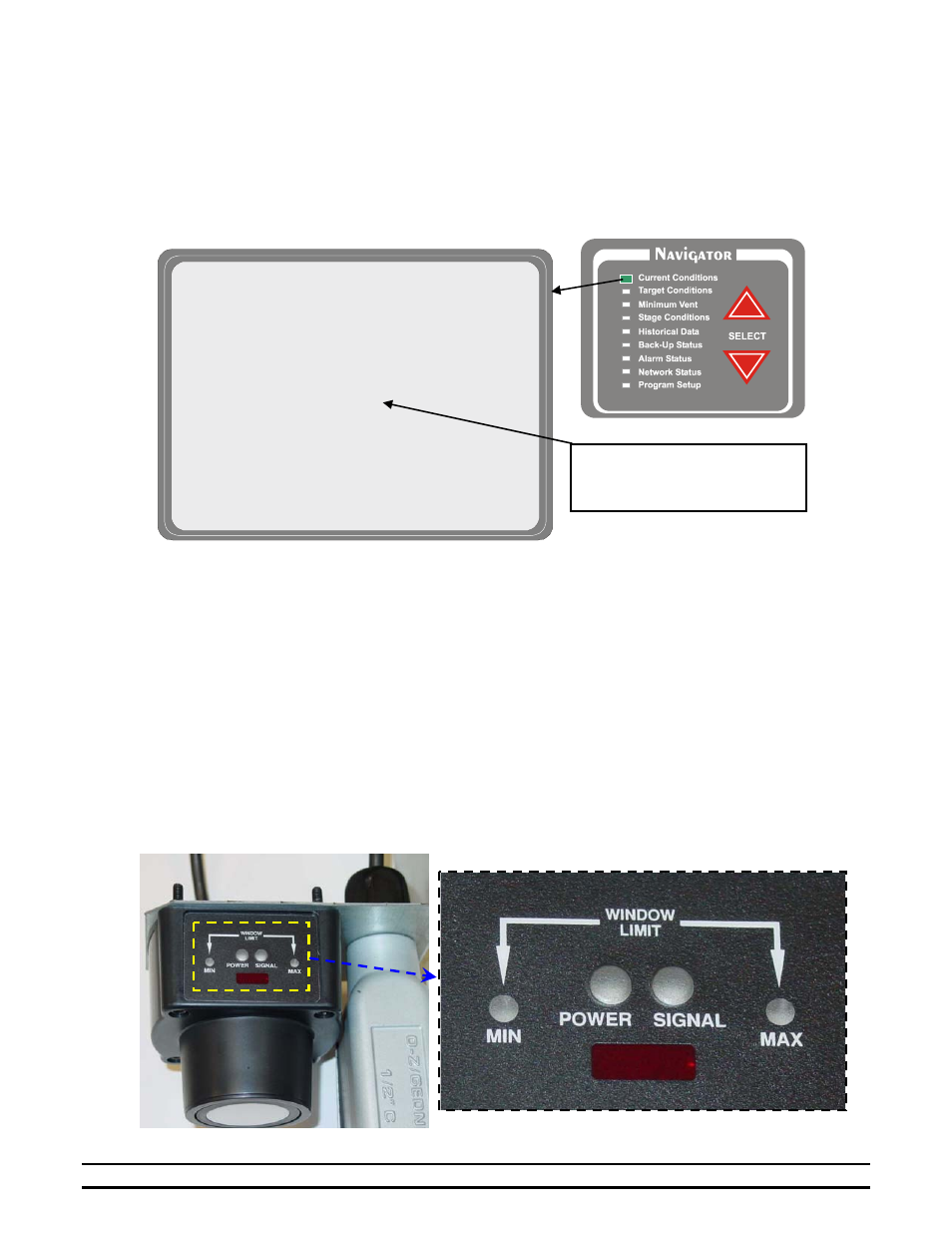

9.1 Current Conditions Screen on the Evolution 3000/3001 Controller
The current environmental conditions of the building are shown here. Below is a table describing the variables that
can appear in the Current Conditions status screen.
The numbers in brackets e.g. (1) refer to the descriptions below the sample screen displays.
(A) Feed Level – The Feed level is shown in number of feet from the bottom first then the percentage of feed
remaining in the feed bin is shown inside ( ). Two feed bins may be monitored (Bin #1 & Bin #2).
10. Ultrasonic Sensor LED Indicators
The ultrasonic Feed Level Sensor includes LED indicators to display the sensor status. Refer to Figure 12.
Power LED - Indicates power is ON.
Signal LED (Red) - Indicates that the sound waves are being received back to the module.
NOTE: If the distance from the end of the ultrasonic sensor to the solid feed level surface is between 8” and 30’ 8”,
both Min and Max LED’s will be ON solid. If the distance is at the Minimum or Maximum point, the Min
or Max LED will flash.
Min (Flashing Yellow) - Indicates that the feed level is FULL and the ultrasonic sensor is sensing a level of 8” or
less from the top.
Max (Flashing Yellow) – The ultrasonic sensor will sense a distance up to 30’ 8”. The Max LED flashes when 30’
8” is sensed. Typical feed bins will not reach this height, therefore, the Max LED should not be used.
F F i i g g u u r r e e 1 1 2 2
