Power supply replacement
6

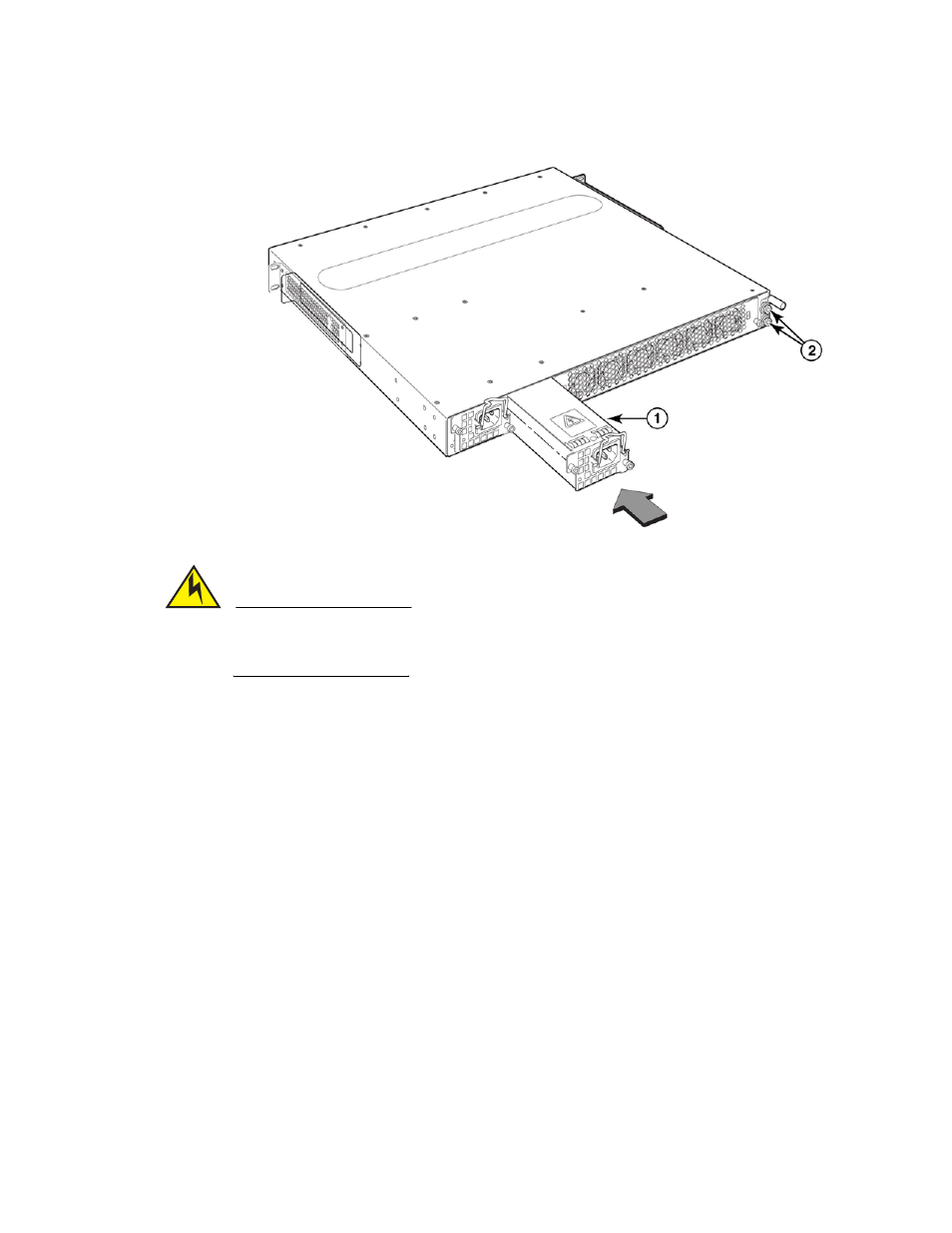

FIGURE 50 Power supply installation
CAUTION
Make sure you insert the power supply right-side up. It is possible to insert the supply upside
down, although the supply will not engage with the power backplane when upside down. The
power supply is right-side up when the manufacturer label is on the top.
4. Tighten the two power supply locking screws located at the top left and bottom right hand
corner of the power supply.
5. Connect the power cord to the power supply.
Removing the DC power supply
Required tools
You will need the following tool to perform this procedure:
• #2 Phillips-head screwdriver
The following procedures are required when removing an DC power supplies from devices.
1. Remove the wires from your DC power source.
2. Unscrew the two assembly screws to unlock the DC wiring assembly ( Figure 51 ) and remove
the adapter.
3. Loosen the wire tightening screws to remove the wires ( Figure 52 ) from the DC wiring
assembly.
