2

Wa t l o w M

I N I

C

H E F

2 0 0 0

A p p l i c a t i o n 2 7

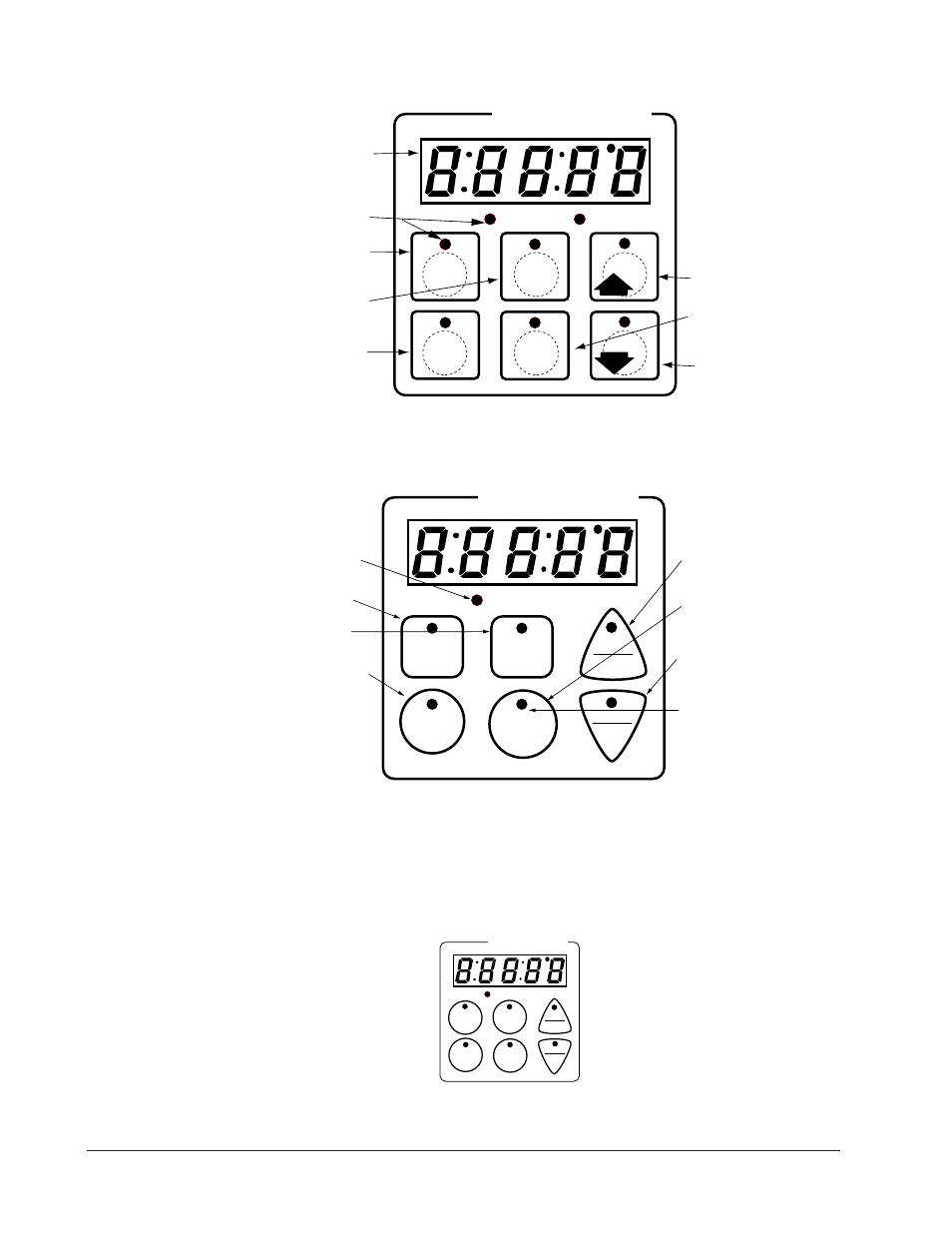

Key Functions in Configuration Mode

Key Functions in Operation Mode

ç

WARNING: The Jog and Increment keys cause or initiate machine motion. Appropriate reasonable care should be

taken to prevent personal injury or machine damage as a result of operator initiated or unexpected machine motion.

Summary of Input/Output Functions

Note: For details, see wiring instructions in the

Hardware & Software Setup Guide.

Heat

Set

temp(s)

Set

time(s)

Start/Stop

Down
Probe

temp

Your Company Logo

U p

J o g

Input 1 Oven Temperature

Input 2 Probe Temperature

Event Input 1 Door Open

Event Input 2 not used

Output 1 Heat

Output 2 not used

Event

Output

1

Spit

Motor Control

Event Output 2 Fan

Output 5 Audible Alarm

Menu

Select

Heat

Temp

Time

Up

Jog

Start/Stop

Down

Your Company Logo

Heat indicator light Lit
when heat output is on.

Temp(s) Manually set
Temperature(s).

Time(s) Manually set
Time(s).

Menu Select Enter menu
mode or select menu.

Jog and Increment
Jog the spit and scroll
through valid menus.

Start/Stop Activate or
cancel active menu.

Probe and Decrement
Probe or scroll through
valid menus.

Start/Stop Indicator Light
Slow flash...Preheating
Rapid flash...Ready
Lit...Cooking
Off...Done

Menu
Select

Probe

Temp

A

B

D

E

G

H

Enter

Escape

Home

Edit

C

F

M

INI

C

HEF

2000

Display five-digit, seven-
segment numeric LED
display.

Indicator lights
(1 for each key, 2 for heat
channels).

Edit key (A) Access the
next level of parameters or
values.

Enter key (B) Enter the
value and return to
previous level.

Home key (D) Move to
Operation Mode with a
two-second key press.

Up key (C) Move up the
lists.

Escape key (E) Return to
original value when editing
a parameter value.

Down key (F) Move down
the lists.
