„ Inserting the CF Card
Use the following steps to insert the CF Card in the PS-A unit.
(1) Confirm that the PS-A unit is turned OFF.
(2) Loosen a screw of the CF Card cover and remove the CF Card cover.
(3) Confirm the front and back of the CF Card and insert the CF Card in the CF Card slot. Push the eject
button completely until the eject button is pushed forward.
(4) Install the CF Card cover and attach it with a screw.
„ Removing the CF Card
Confirm that the PS-A unit is turned OFF. Remove the CF Card cover, press the eject button and carefully
remove the CF Card. After removing the CF Card, be sure to place back the CF Card cover and attach the
cover with a screw.
„ Backup of CF Card
The CF Card has a data overwrite limit of approximately 100,000 times. Therefore, be sure to back up all CF
Card data regularly to another storage media. (100,000 times assumes the overwriting of 500KB of data in
DOS format.)
< If your PC is equipped with a PC Card Slot >
(1) Install the CF Card into a CF Card Adapter (GP077-CFAD10) and insert it into a PC Card slot of a
personal computer.
(2) Save the data of the CF Card with your personal computer.
(1) Use a commercially available PC Card Reader, or a CF Card Reader.
• Make sure that the CF Card cover is closed when accessing the CF Card.
• The torque required to tighten a screw is 0.5 to 0.6N•m.

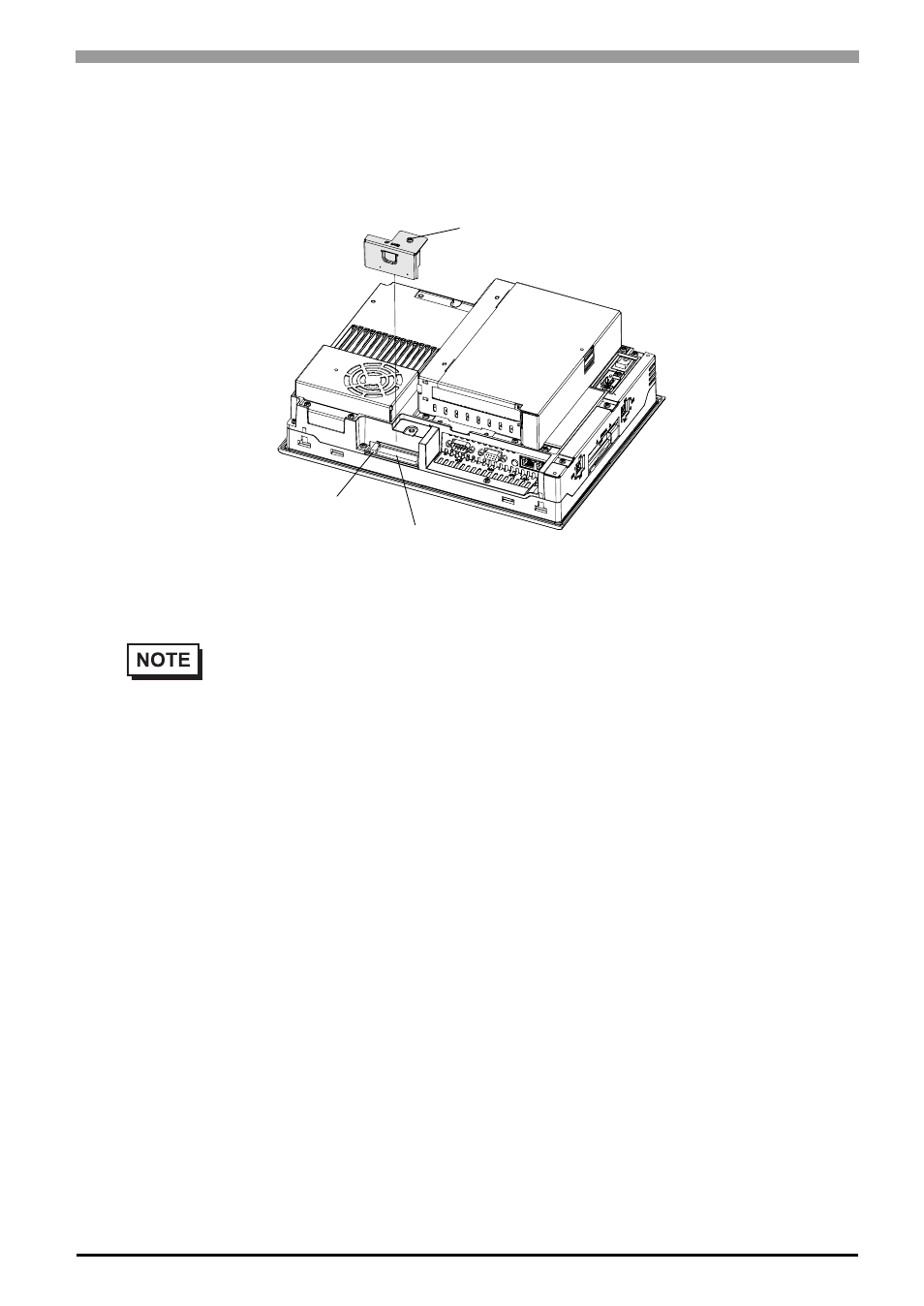

Screw
CF Card
Eject Button
