Main Screen
PLC Ladder Monitor Operation Manual 3-3
Decimal/
Hexadecimal
This switches between decimal and hexadecimal monitor data values
(current values). The switch display changes between [Decimal] and
[Hexadecimal] every time it is touched.

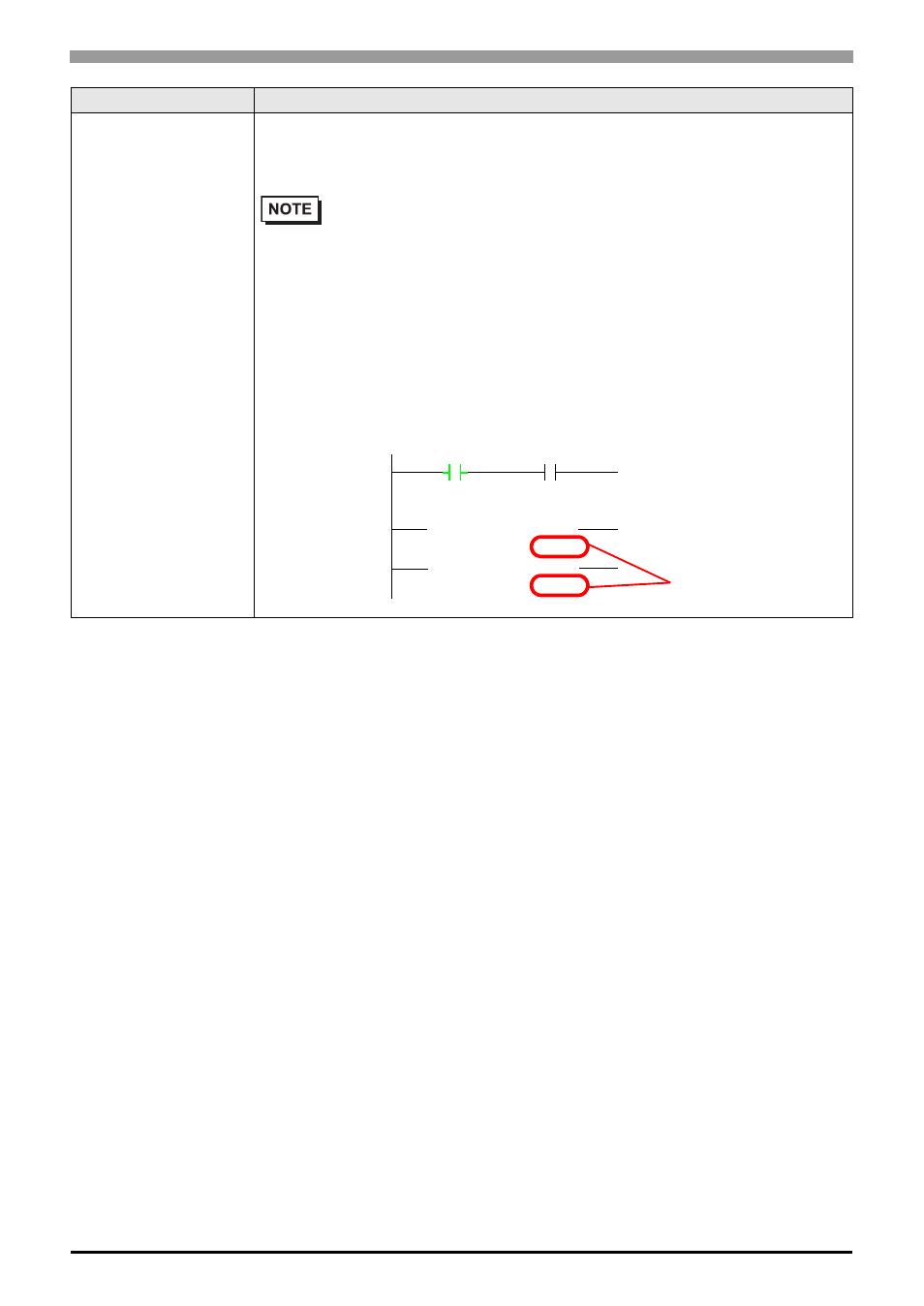

• Monitor data values (current values) are displayed in the following two
ways:
Contact/Coil
Displays energized/non-energized state by the thickness of parts lines.
An energized state is displayed in bold lines.
Decimal/Hexadecimal
Data is displayed in parallel with devices. Monitor data values for bit
devices are displayed in bits. Monitor data values for word devices are
displayed in words.
[
CMP D100 D200
]
00256 00256
[ CMP D100 D200 ]
00FF 00FF
X0000
Energized
X0001
Non-energized
Contact/Coil
Decimal
Hexadecimal
Current values
Continued
Setting Description
